424348P Genuine Rotor Position Sensor for Fisher & Paykel Top Load Washing Machines GW512 GW612 GW712 IW712 IW812 MW512 WL70T60CW1 WL80T65DW1
- Original part no.
- 424348P
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

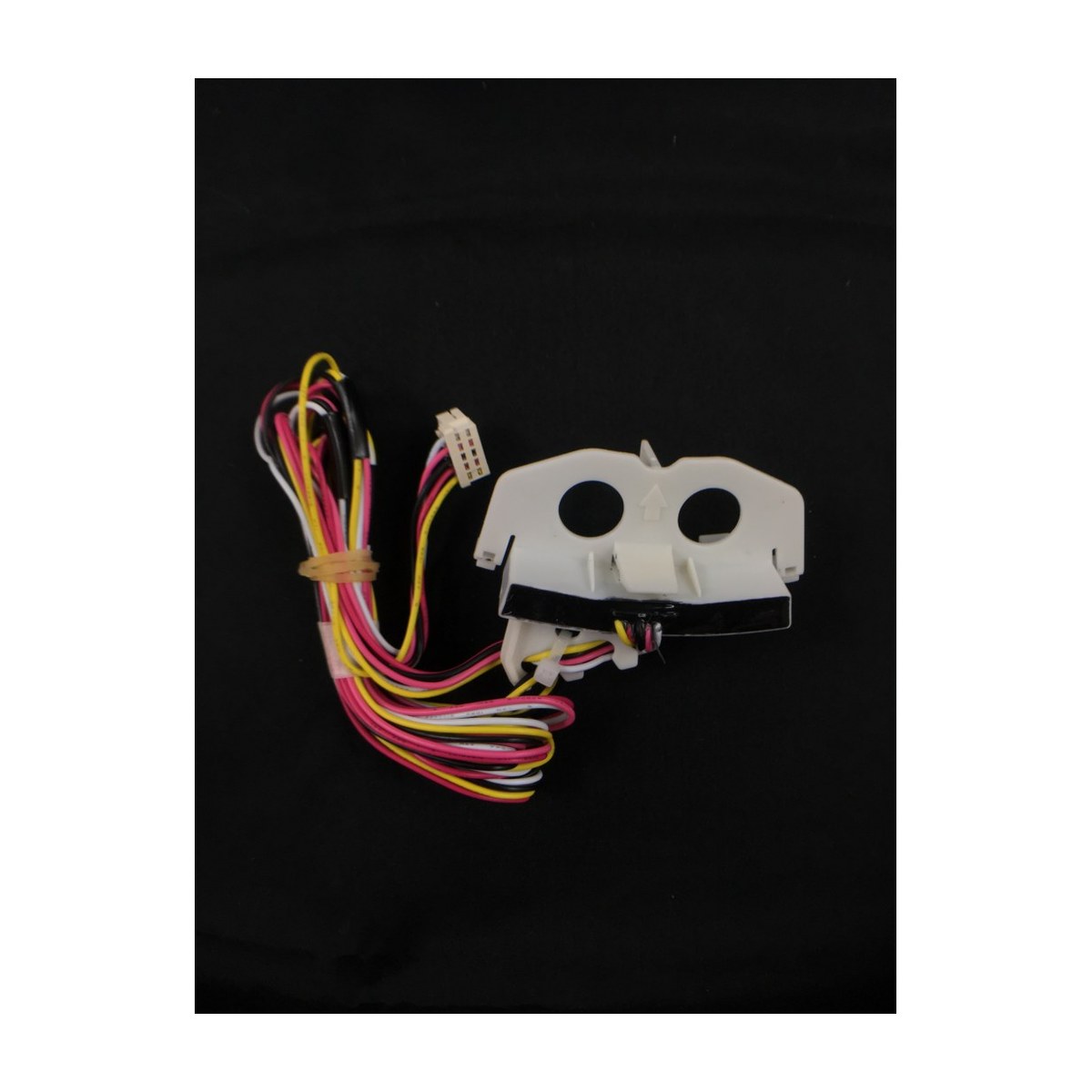

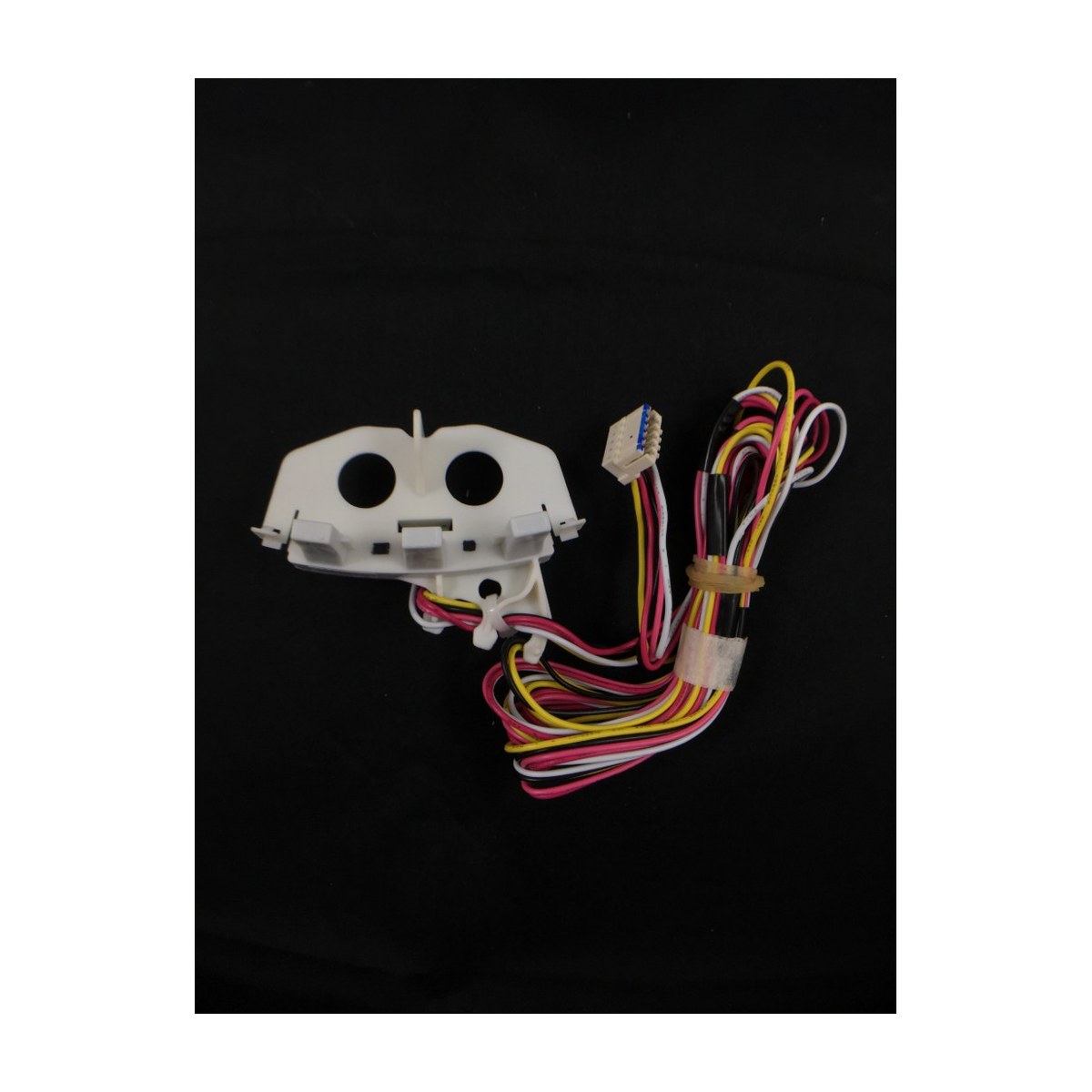

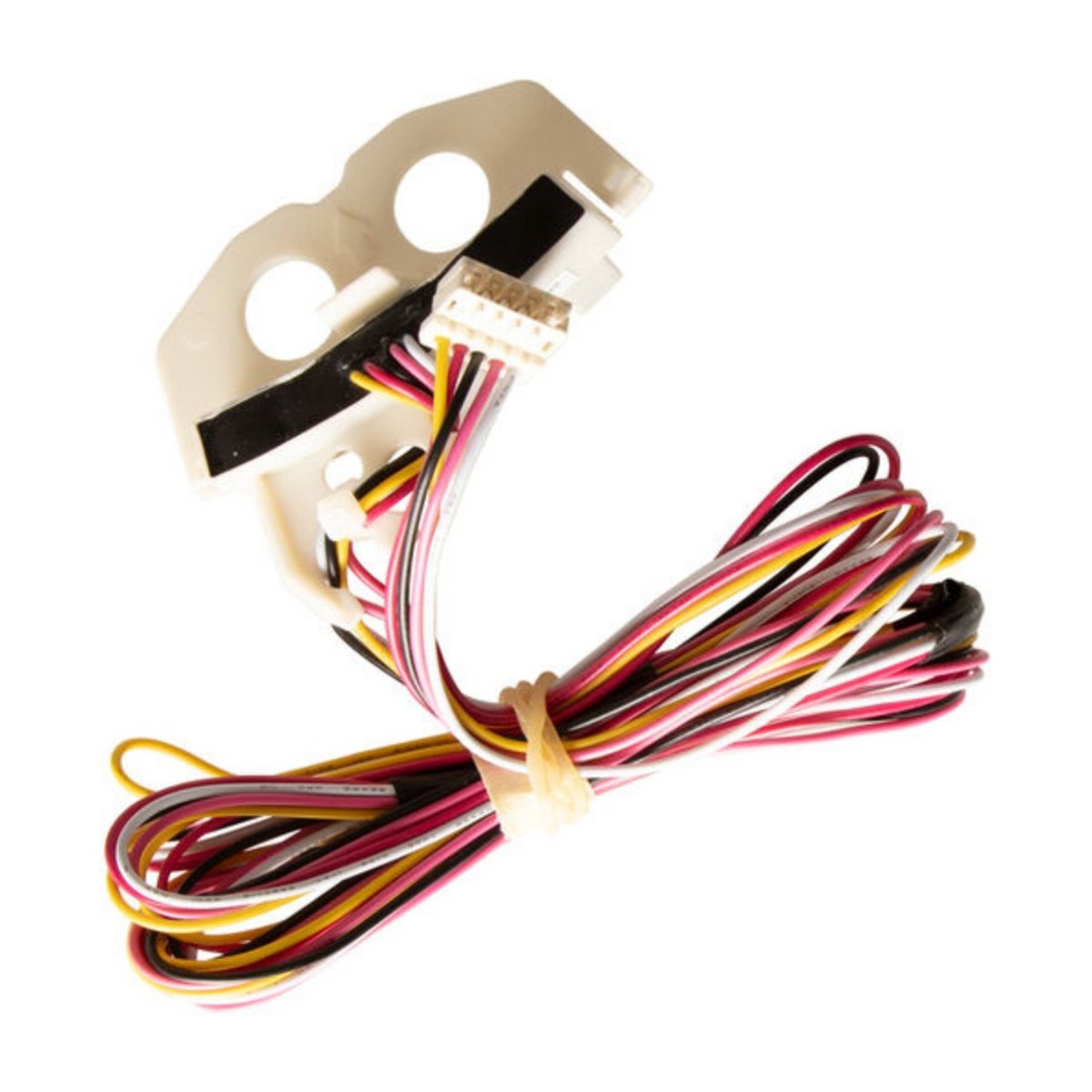

The 424348P is a genuine Fisher & Paykel rotor position sensor, the small sensor board that mounts on the stator of the SmartDrive motor in their top load washers. It suits the GW512, GW612 and GW712, the IW712 and IW812, the MW512, and four WL models: the WL70T60CW1, the WL70T60DW1, the WL80T65CW1 and the WL80T65DW1.
F&P SmartDrive washer jerking, stalling or not spinning?
A SmartDrive motor has no brushes or belt, so its controller needs to know exactly where the rotor magnets are to switch the stator windings in the right order. The rotor position sensor reads the passing magnets and feeds that information back. When it fails, the motor may twitch or jerk instead of turning smoothly, agitate weakly, refuse to spin, turn one way only, or stop with a motor fault. Moisture, a damaged lead or a cracked sensor housing can all bring on these faults.
Part details
- Genuine Fisher & Paykel rotor position sensor 424348P
- Phase 7 SmartDrive type
- Listed for 10 top load models
- Includes the GW612, the IW812 and the WL80T65CW1
Changing the rotor position sensor
Unplug the washer and turn off the taps. Tip the machine back, or lay it on its side on padding, to reach the motor underneath. Remove the rotor nut and lift off the rotor, unplug the sensor, then release its clips from the stator. Fit the new sensor squarely, reconnect the plug, refit the rotor and run a test cycle.
Questions about this part
Is this the right sensor for my SmartDrive?
Fisher & Paykel has used more than one rotor position sensor across the SmartDrive years. This one is listed for the GW, IW, MW and WL models on this page. Compare the number on your old sensor or your model plate before ordering.
Specifications
| Brand | Fisher & Paykel |
|---|---|
| Original part number | 424348P |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 424348P |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
