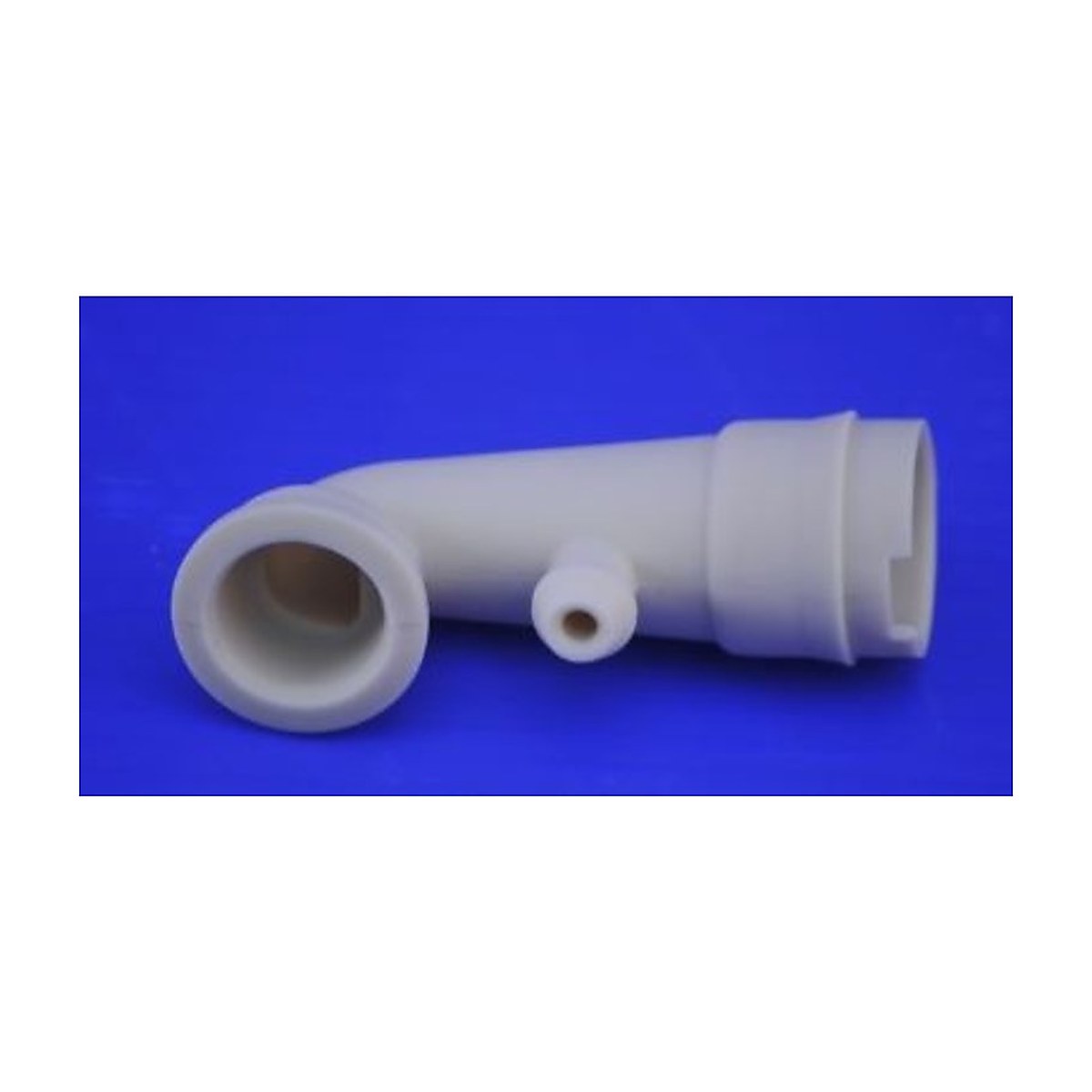

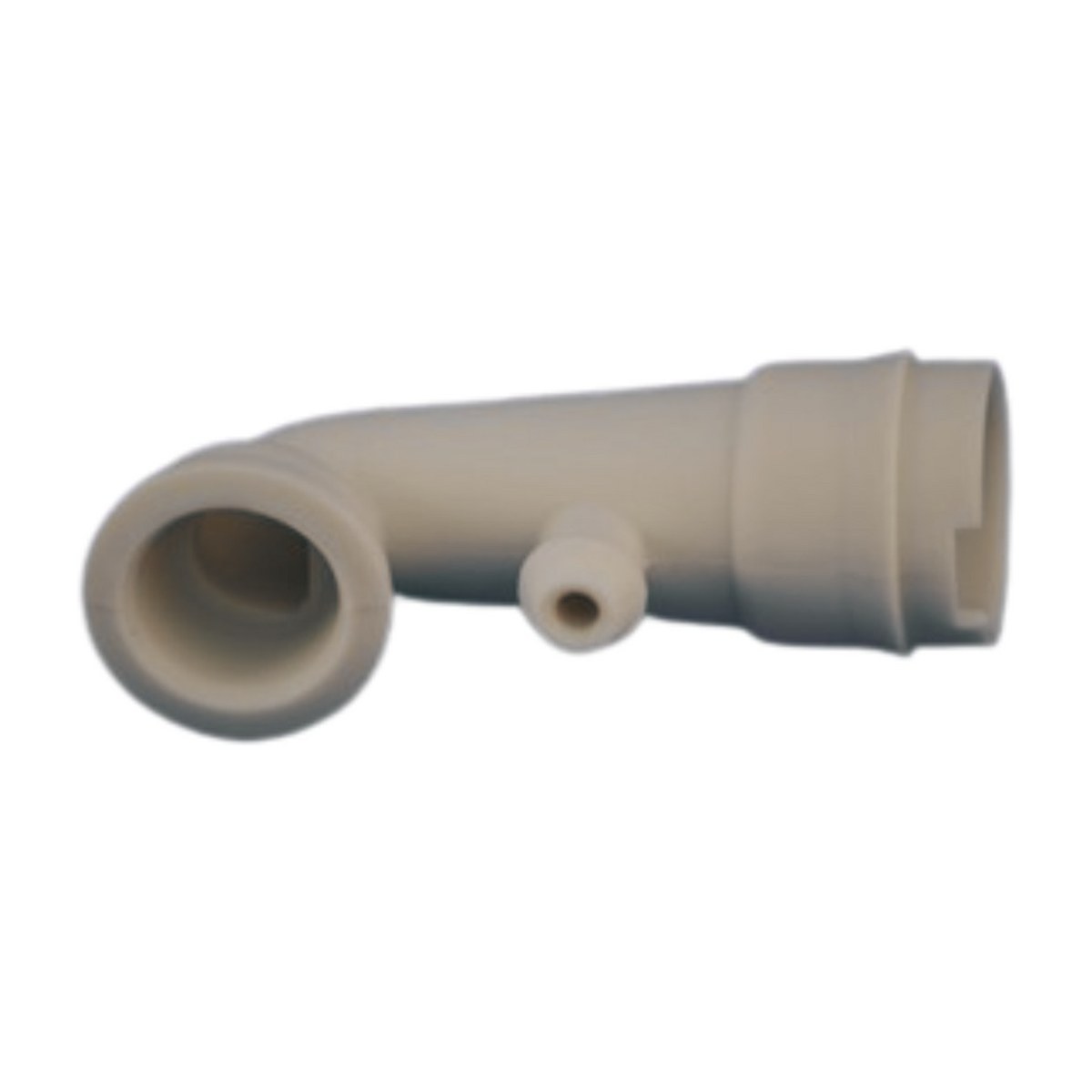

424056 Genuine Inlet Hose Elbow for Fisher & Paykel Top Load Washing Machines WA1068G1 WA7060G1 WA8060P1 WA8560G1 WA9060G1 WL1068P1 WL4027P1

Part 424056 is a genuine Fisher & Paykel inlet elbow, a shaped hose bend in the water fill path of older F&P top loaders. It carries water toward the fill spray nozzle, which pushes into one end of the elbow. On file it suits 34 models, for example the WA1068G1, the WA7060G1, the WA8560G1 and WA9060G1, and the WL1068P1 and WL4027P1.

Water on the floor only when your F&P washer is filling?

On every fill, mains water leaves the inlet valve and travels through this elbow to the spray nozzle that sends it into the bowl. Hose parts in the fill path harden with age, and a split elbow, or a nozzle that has popped out of it, will leak every time the machine takes on water. Look for water on the floor that only appears while the washer is filling, drips from under the top deck, damp streaks down the cabinet, or water spraying about instead of pouring cleanly into the bowl.

Part details

• Genuine Fisher & Paykel inlet elbow 424056
• Links the fill path to the spray nozzle
• Listed for 34 top load models on file
• Includes the WA8560G1, the WA9060G1 and the WL4027P1

Replacing the inlet elbow

Turn off both taps and unplug the washer. Open the top deck to reach the fill area and note which way the elbow points before you remove it. Pull the spray nozzle out of the old elbow and push it firmly into the new one. Refit, turn the taps back on and run a fill, watching the elbow and nozzle for any seepage.

Questions about this part

Is the fill spray nozzle included?

No, 424056 is the elbow only. The spray nozzle that pushes into it is a separate Fisher & Paykel part, 420833P. If your old nozzle is cracked or brittle, it makes sense to replace both at the same time.
