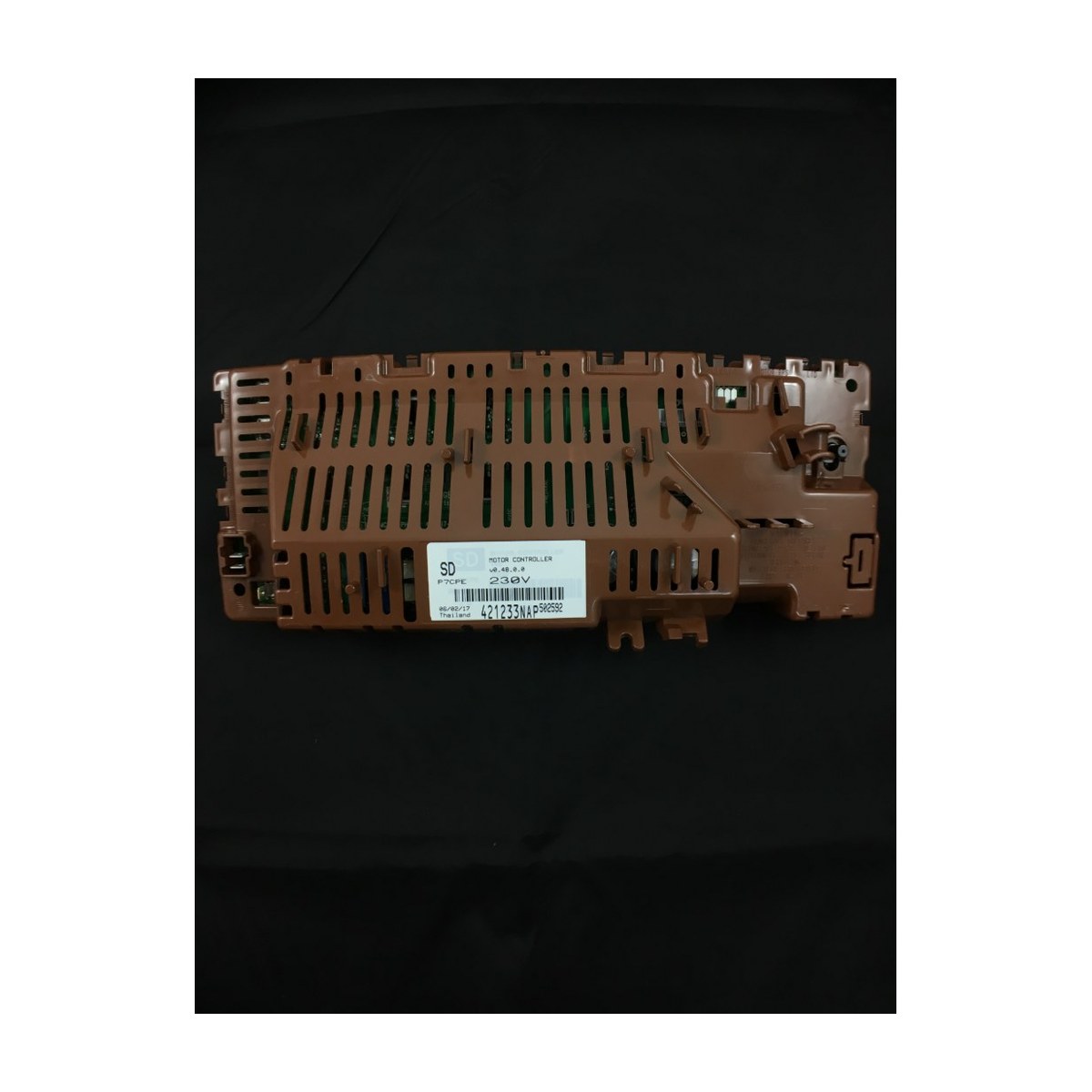

421233NAP Genuine SmartDrive Motor Control Module ECO 230V for Fisher & Paykel Top Load Washing Machines, Washer Controller PCB
- Original part no.
- 421233NAP
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
Fisher & Paykel's genuine 421233NAP is a motor control module for SmartDrive top load washers, the ECO version built for 230V New Zealand and Australian power. Related SmartDrive modules with other suffixes are separate parts, so the exact code matters. Our records don't list the compatible models. Compare the code on your existing module, or send your washer's model and serial number through the parts enquiry form.
SmartDrive washer showing faults or not spinning?
In a SmartDrive washer the motor control module is the main brain. It drives the direct drive motor, opens the water valves, runs the pump and reads the sensors. When it fails, the machine may stay dead, stop part way through a cycle, refuse to spin or agitate, beep with error codes, or fill and drain at the wrong times. Water getting into the module and power surges are common causes. Because a failed motor stator, rotor position sensor or wiring can produce the same symptoms, test them before replacing the module.
Part details
- Genuine Fisher & Paykel part 421233NAP
- SmartDrive motor control module, ECO version
- 230V, built for New Zealand and Australia
- Other SmartDrive module codes are separate parts
| Voltage | 230V |
|---|---|
| Market | New Zealand and Australia |
| Version | ECO |
Swapping the motor control module
Disconnect the washer from power and turn off both taps before starting. Where the module sits depends on the model, so check the service layout first. Photograph every connector before unplugging, handle the new board by its edges, and make sure seals or covers that keep water off it are refitted. Run a full cycle afterwards to check filling, washing, draining and spinning.
Questions about this part
Can I fit a module with a different suffix?
Only if Fisher & Paykel lists it for your machine. SmartDrive modules look alike but are matched to particular models and settings. Check the code on your old module, and send your model and serial number through the parts enquiry form if they don't match.
Specifications
| Brand | Fisher & Paykel |
|---|---|
| Original part number | 421233NAP |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 421233NAP |
| Appliance | Washing Machine Parts |
| Shipping weight | 1.5 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
