421232NAP Genuine Motor Controller Module 230V for Fisher & Paykel Top Load Washing Machines WL70T60CW1 WL70T60DW1 WL80T65CW1 WL80T65DW1
- Original part no.
- 421232NAP
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

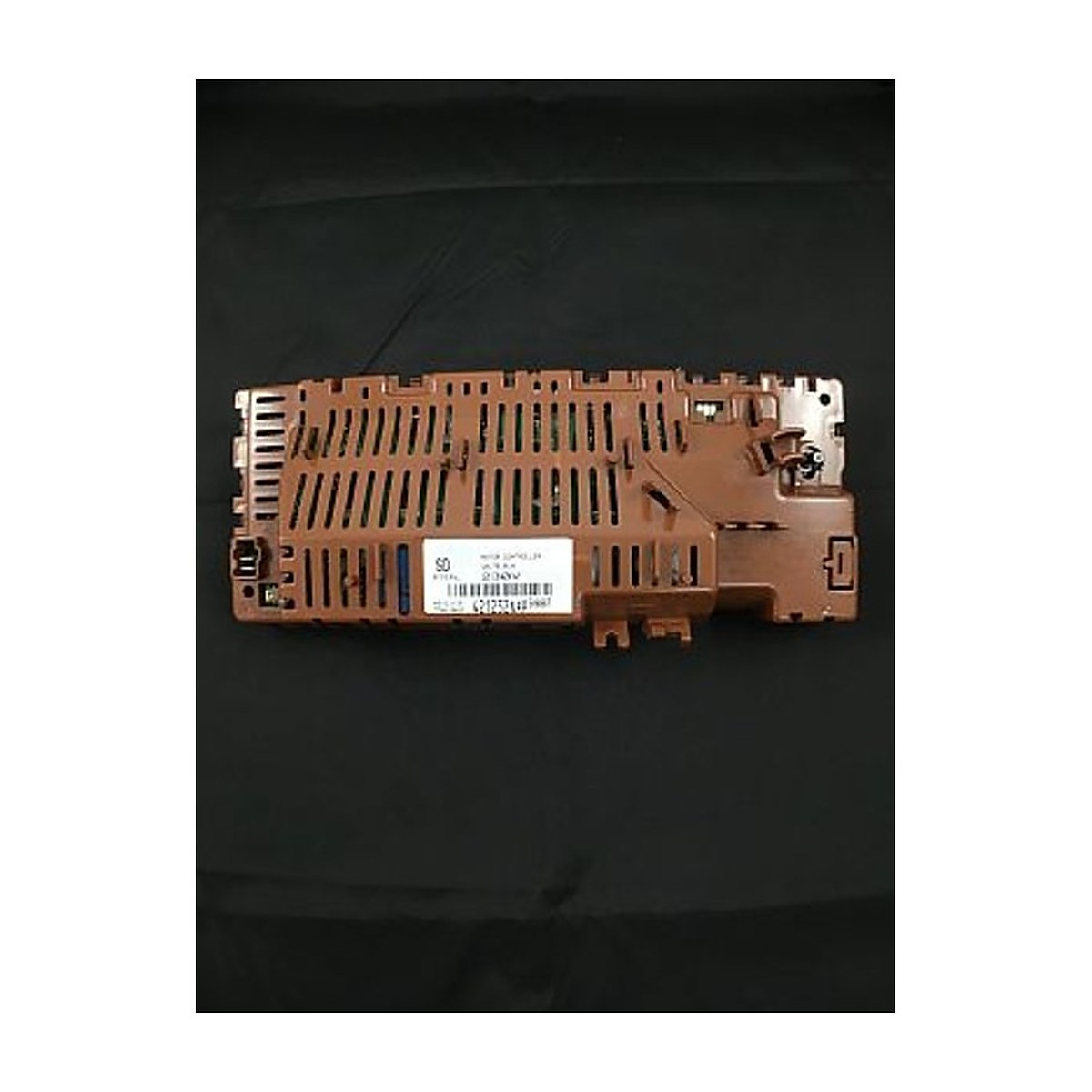

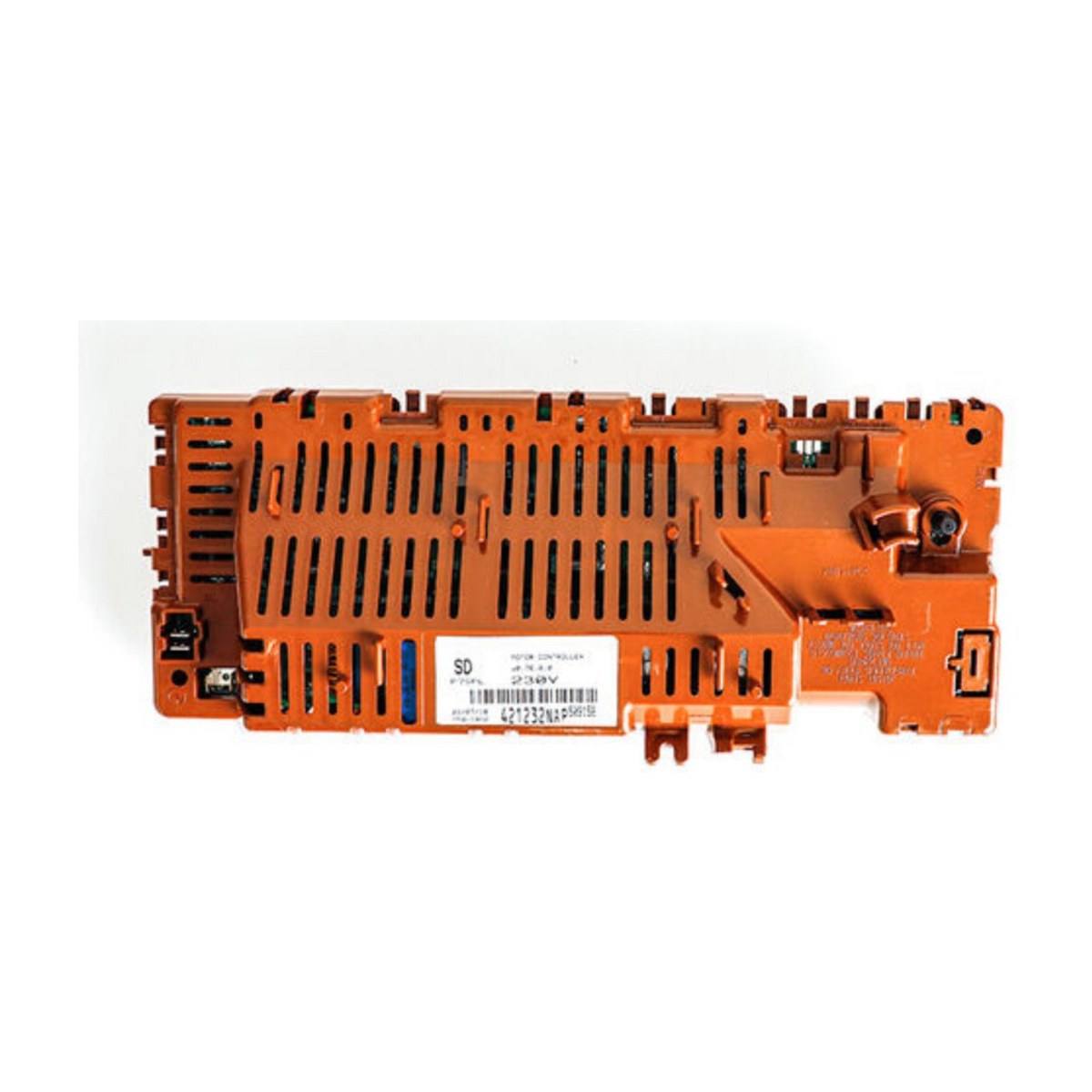

This genuine Fisher & Paykel motor controller, part 421232NAP, is a 230V service module made for the Australian and New Zealand market. It's on file for the WL70T60CW1 and WL70T60DW1, plus the WL80T65CW1 and WL80T65DW1 top load washers. The controller drives the washer's direct drive motor, so when it fails the machine usually won't wash or spin at all.
F&P top loader not spinning or showing a motor fault
The motor controller powers the motor windings in sequence, using signals from the rotor position sensor to time each pulse. A failed module can leave the washer filling but never agitating, stopping with a fault code, beeping without starting, or tripping the power. Water getting onto the board and power surges are frequent causes, so look for leaks above the controller before fitting the new one, or the replacement may go the same way.
Part details
- Genuine Fisher & Paykel part 421232NAP
- 230V motor controller module
- Service part for Australia and New Zealand
- Listed for the WL70T60CW1 and WL70T60DW1, plus two WL80T65 models
| Voltage | 230V |
|---|---|
| Market | Australia and New Zealand |
Fitting the motor controller
Unplug the washer before touching any electronics, and give it a few minutes for stored charge to drain away. Photograph the plugs on the old module, then move them across one at a time. Handle the new board by its edges and keep it dry. After fitting, run a short wash to check fill, agitate, drain and spin all work.
Questions about this part
Will this module fit my WL80T65CW1?
Yes, the WL80T65CW1 is one of four models on file for 421232NAP. The others are the WL80T65DW1 and two WL70T60 machines, the CW1 and DW1. For any other model, send us the model and serial numbers before ordering.
Specifications
| Original part number | 421232NAP |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 421232NAP |
| Appliance | Washing Machine Parts |
| Shipping weight | 1.5 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
