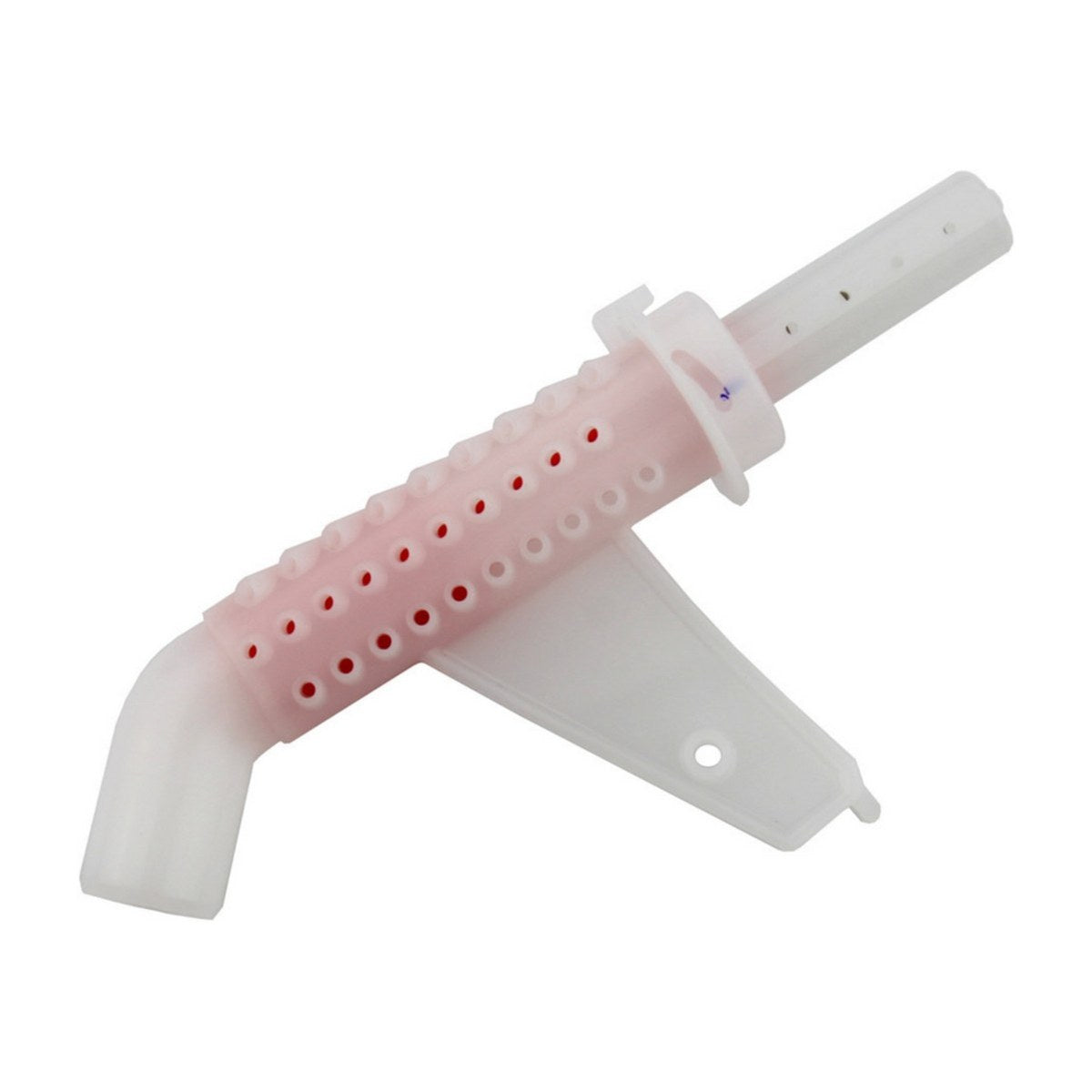

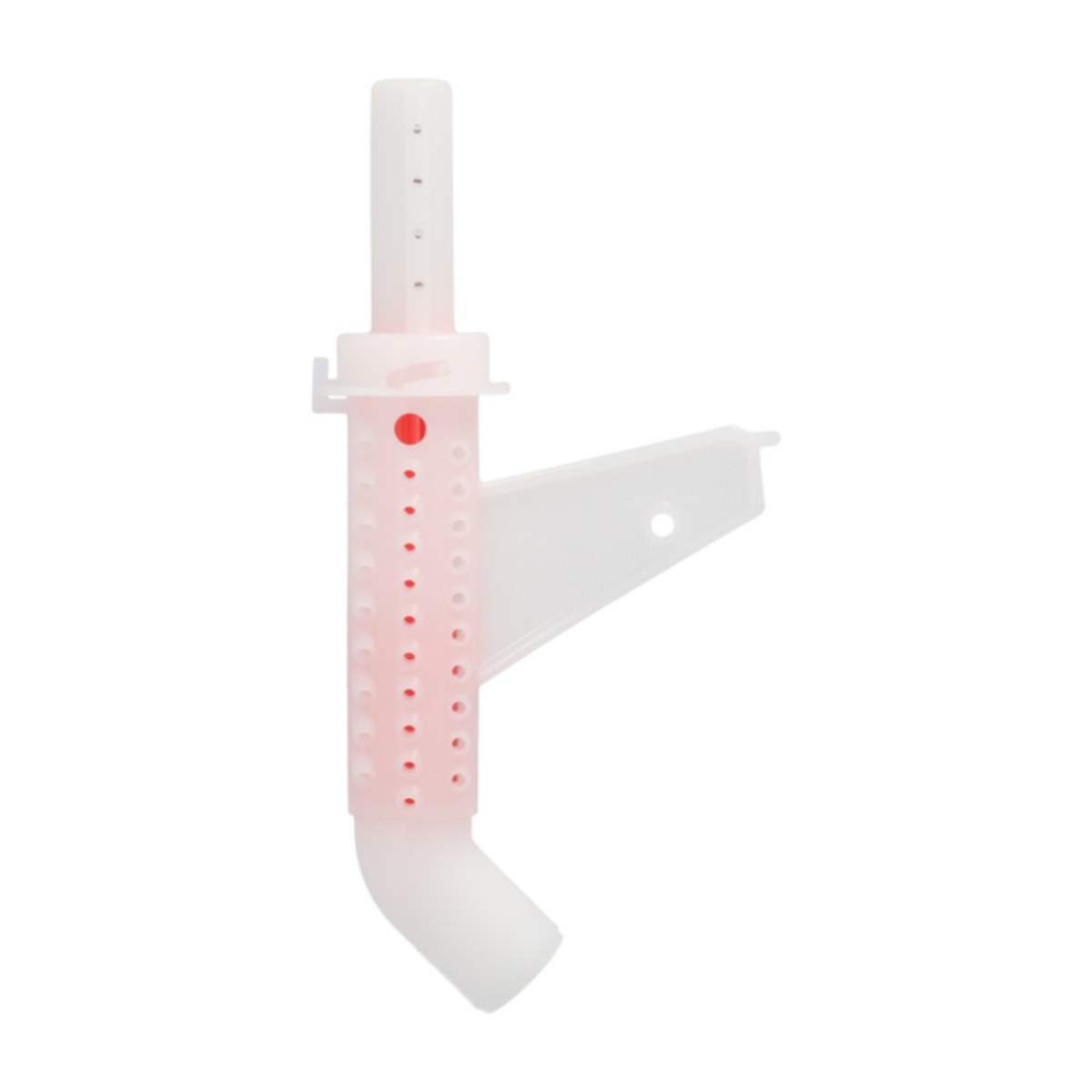

420833P Genuine Spray Fill Nozzle Assembly for Fisher & Paykel Top Load Washing Machines WL70T60DW WA8560P1 WA8560G1 WA37T26GW2 WL1068P1

420833P is a genuine Fisher & Paykel spray fill nozzle, supplied as a packed service assembly for top load washers. Models on file are the WA37T26GW2, the WA8560G1 and WA8560P1, and the WL1068P1 and WL70T60DW. It directs the incoming fill water into the machine, so a cracked or loose nozzle often shows up as water landing where it shouldn't.

Water spraying outside the bowl or leaking on fill

Water from the inlet valve passes through this nozzle on its way into the wash bowl. If the nozzle cracks, comes loose or loses its seal, some of that water can spray past the bowl and end up under the machine, so the leak often only appears while the washer is filling. A blocked or scaled nozzle can also slow the fill or spray unevenly. Look for drips under the machine during filling, wet patches inside the cabinet, or white mineral build-up on the outlet.

Part details

• Genuine Fisher & Paykel part 420833P
• Spray fill nozzle assembly, packed
• On file for WA37T26GW2, WA8560G1, WA8560P1, WL1068P1 and WL70T60DW

Fitting the fill nozzle

Unplug the machine and turn off both taps. Raise or remove the top deck to reach the nozzle, noting how each hose connects before you take it off. Seat the new nozzle fully and clip it in place, reconnect the hoses, then turn the taps on and watch a fill to confirm the water lands inside the bowl.

Questions about this part

Where is my Fisher & Paykel model number?

Look for the label on the back of the machine, or under the lid on some models. It will look something like WA8560G1 or WL1068P1. Match it against the models listed here.
