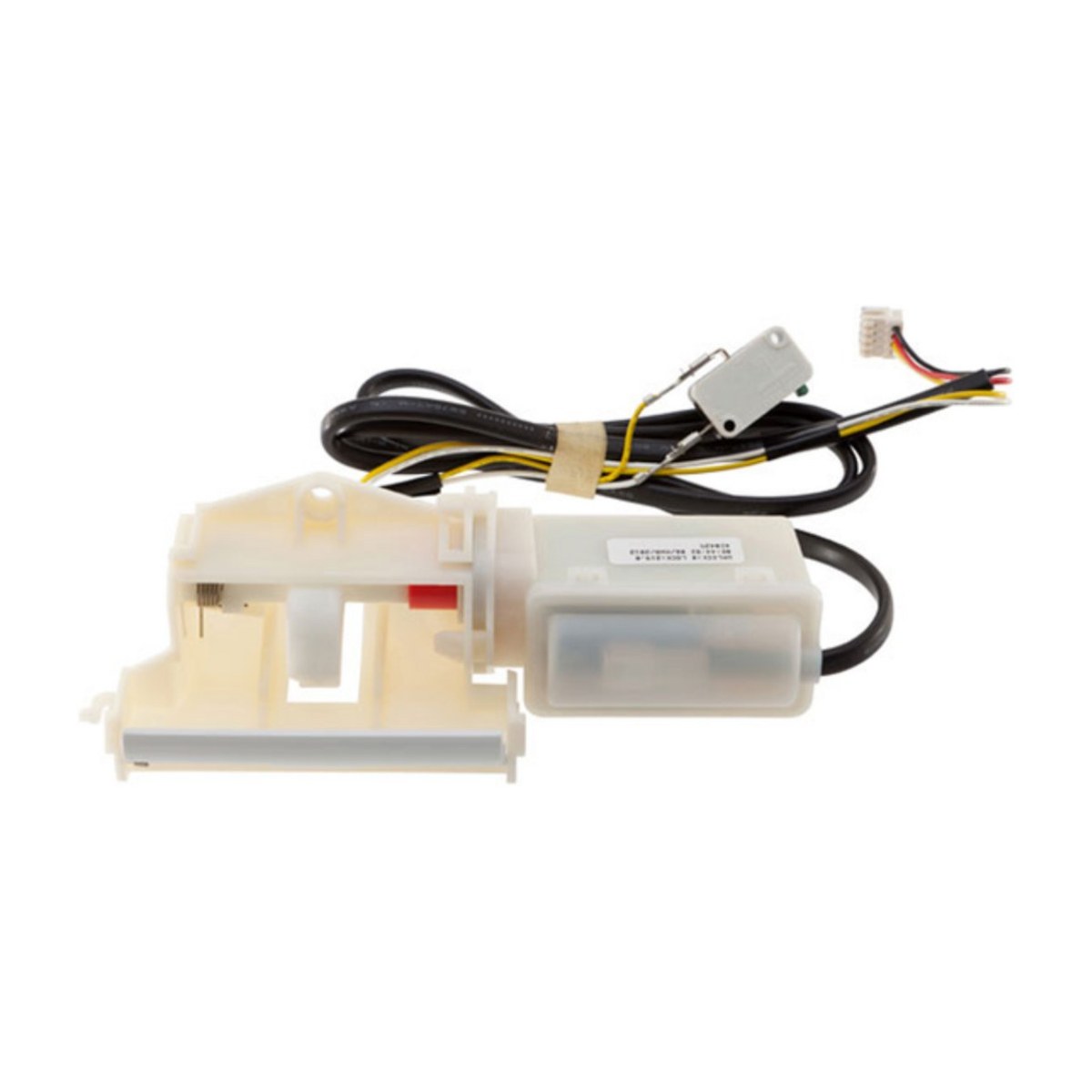

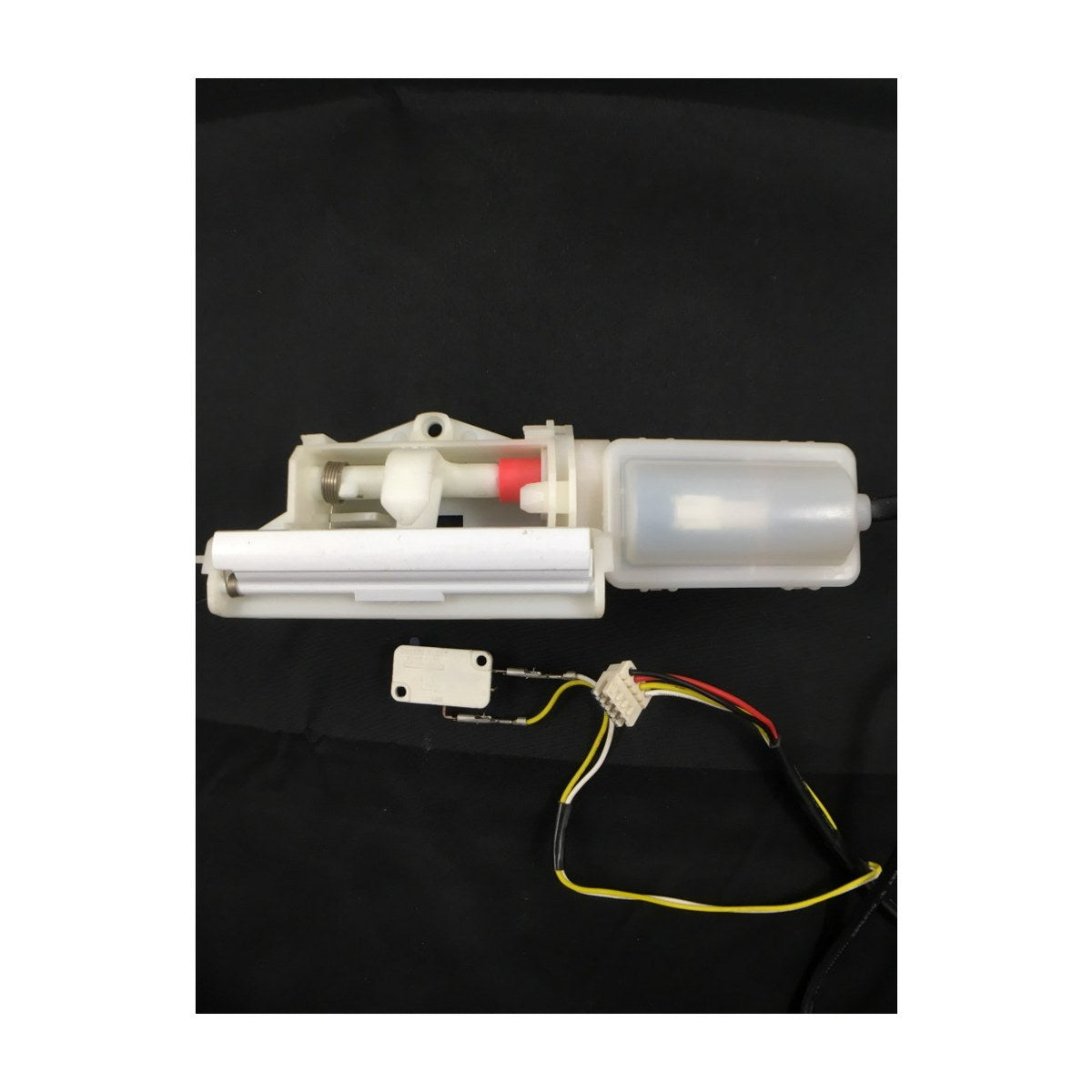

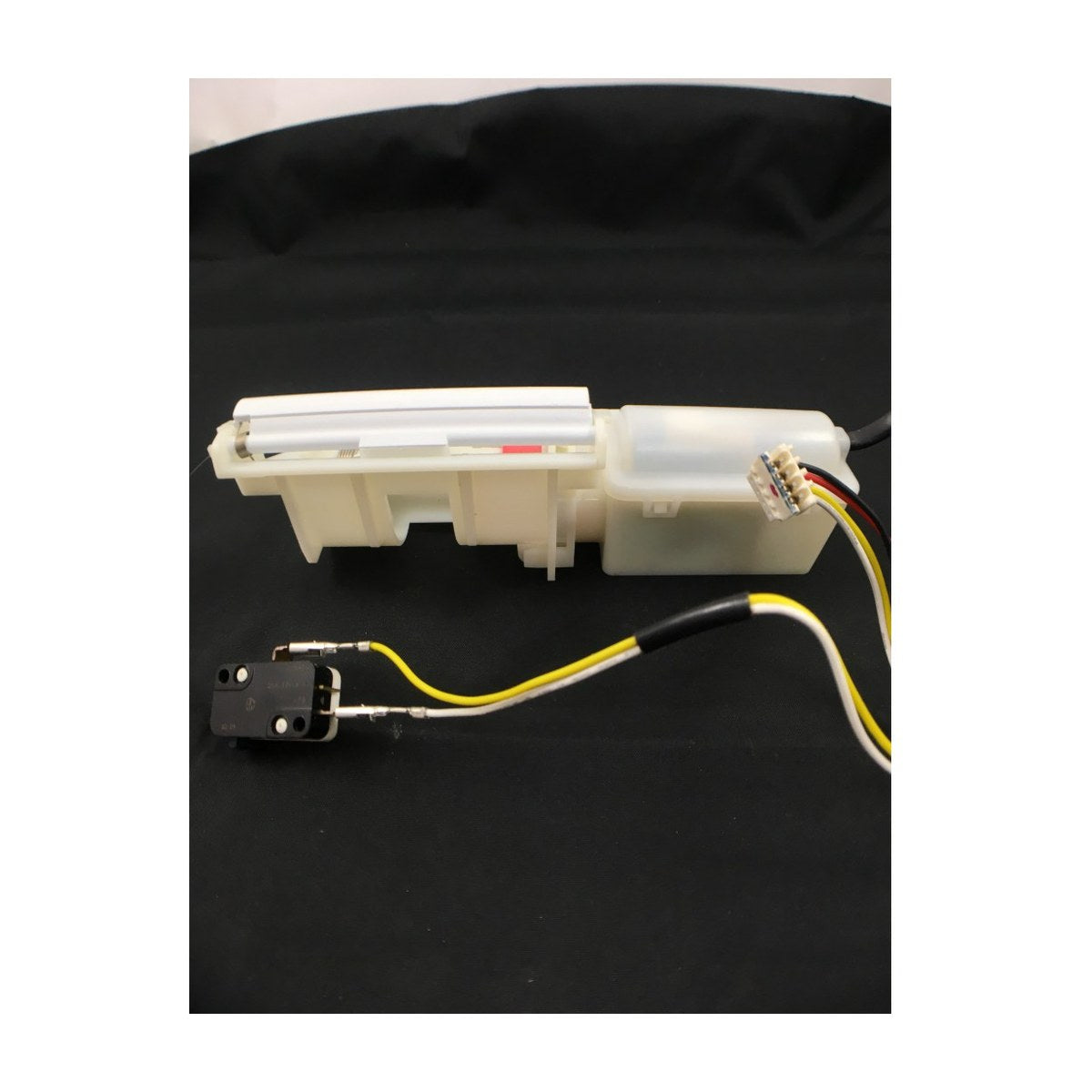

420429 Genuine Lid Lock Harness Assembly for Fisher & Paykel Top Load Washing Machines GW511 GW512 GW611 GW612 GW711 GW712 IW712 IW812
- Original part no.
- 420429
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
Fisher & Paykel top loaders in the GW, IW and MW families use lid lock harness assembly 420429, a genuine F&P part. It is the wired assembly that serves the lid lock and links it back to the machine's controller. Models on file are the GW511 and GW512, the GW611 and GW612, the GW711 and GW712, the IW711, IW712, IW811 and IW812, and the MW512.
Fisher & Paykel washer lid lock fault or cycle stopping?
On these top loaders the lid locks during parts of the cycle, and the controller needs a clean signal from the lock circuit before it will spin. If the harness is damaged, with chafed insulation, a corroded plug or a broken wire where it flexes, the machine may stop mid cycle, refuse to spin, beep with a lid lock fault or release the lid at the wrong time. Water getting into the lid area and years of lid movement are the usual culprits. Check the plugs and wires before assuming the controller has failed.
Part details
- Genuine Fisher & Paykel part 420429
- Lid lock harness assembly
- For GW, IW and MW top load washers
- 11 models on file
Fitting the harness
Unplug the washer and turn off both taps. The top deck usually lifts once its screws are removed, exposing the lid lock area and the harness route. Take photos of how the harness runs and where it is clipped before removing it. Fit the new assembly along the same path, secure it away from sharp edges and moving parts, then run a short cycle to test.
Questions about this part
Is this the lid lock itself or just the wiring?
420429 is listed as the lid lock harness assembly. Compare the photo with the parts in your machine before ordering, and send your model and serial number through the parts enquiry form if you want us to confirm what is included.
Specifications
| Brand | Fisher & Paykel |
|---|---|
| Original part number | 420429 |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 420429 |
| Appliance | Washing Machine Parts |
| Shipping weight | 1.5 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
