420296P Genuine Rotor Position Sensor Board 425221P for Fisher & Paykel Top Load Washing Machines GW500 GW600 GW700 IW711 IW810 MW512
- Original part no.
- 420296P
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

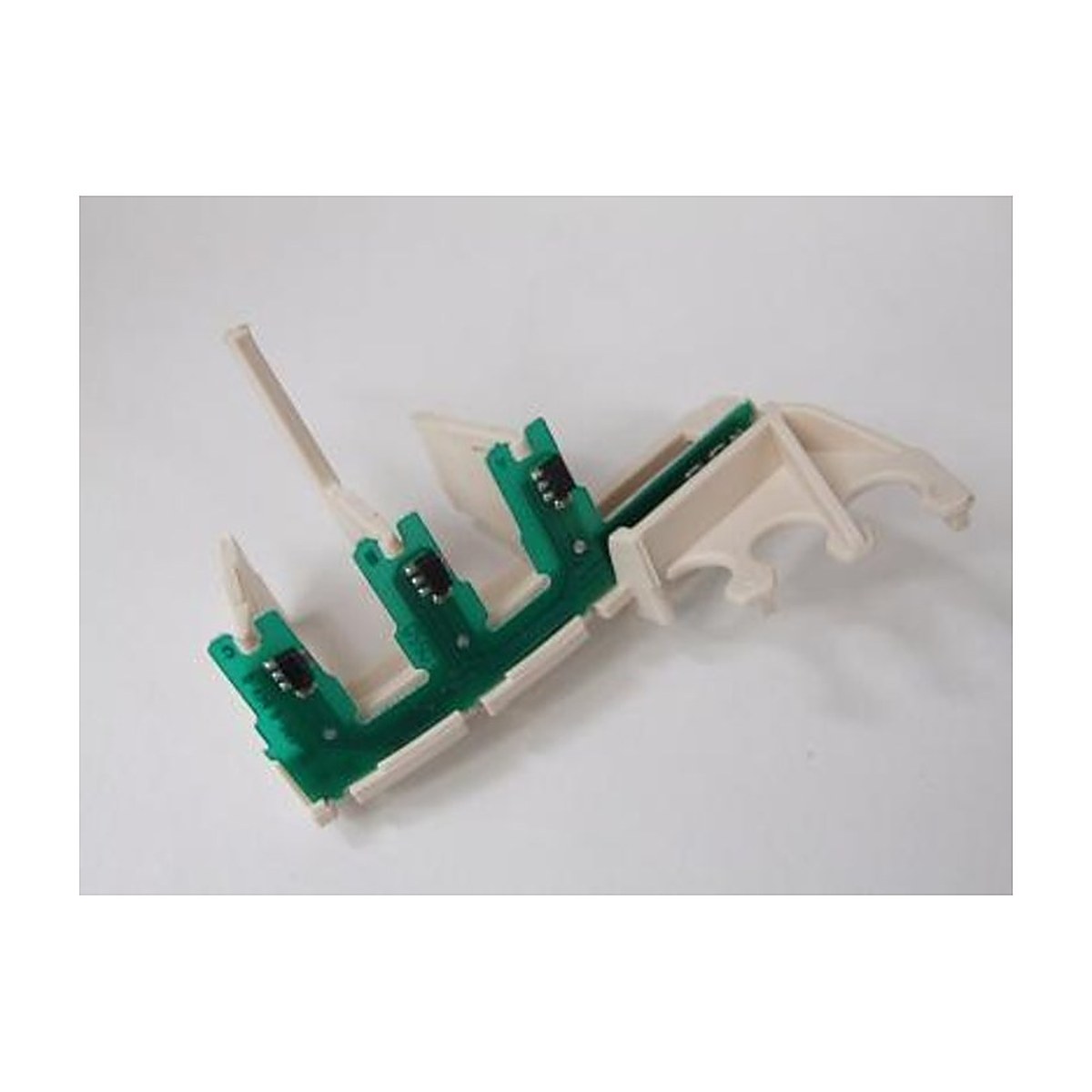

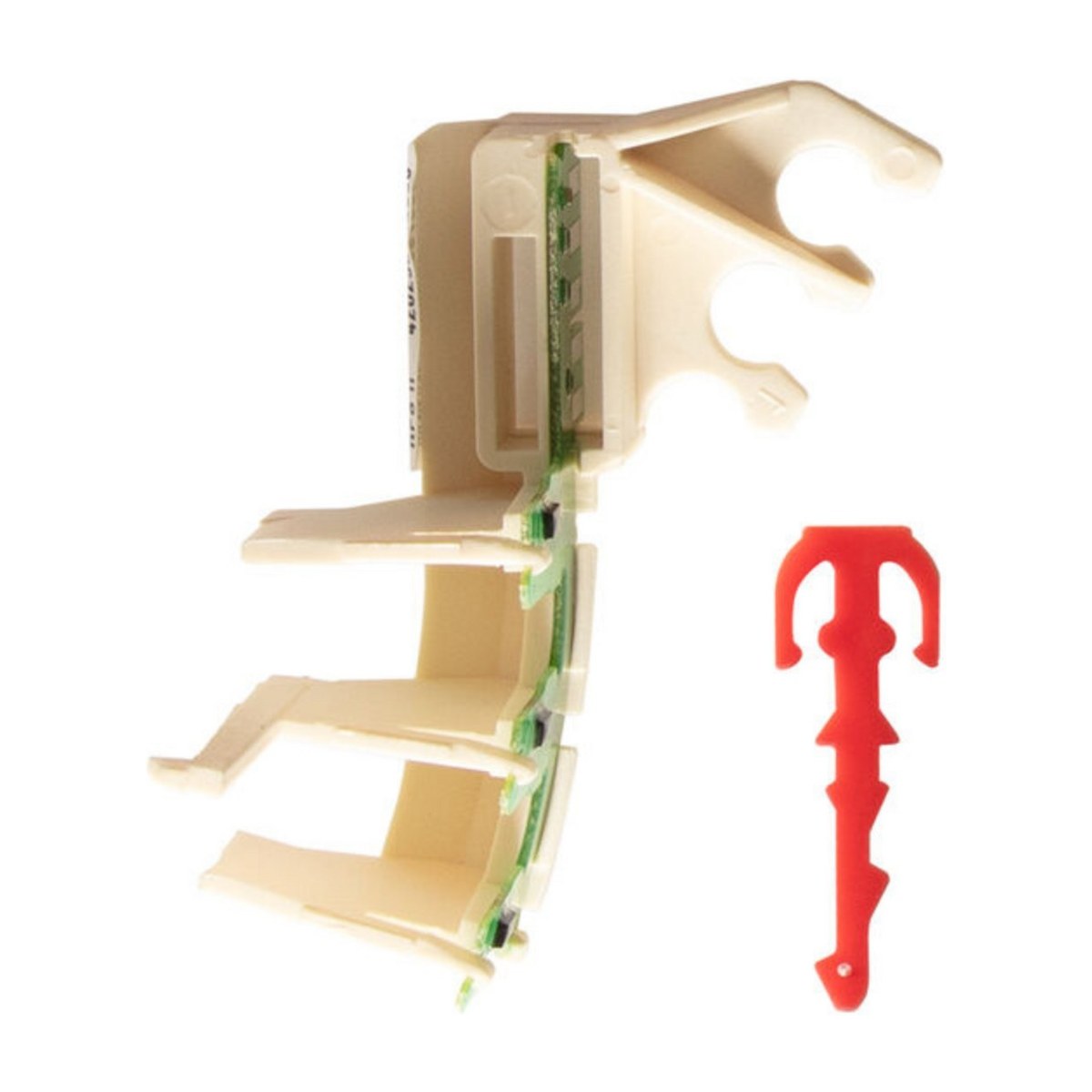

420296P is the genuine Fisher & Paykel rotor position sensor board, Mk2 service version, for top load washers with the SmartDrive direct drive motor. It's also listed as 425221P. Models on file cover the GW500 to GW712 series, the IW509 to IW812 machines and MW models from the MW051 to the MW512, including the GW600, GW711, IW711 and IW810.
Fisher & Paykel SmartDrive won't spin or agitate
A SmartDrive washer has no brushes or gearbox in its motor. The rotor position sensor reads where the rotor magnets are as they pass, so the motor controller knows which windings to power and when. When the sensor fails, the motor can't be driven properly. The basket may jerk, shudder or vibrate instead of turning, you might hear clicking at the start of agitate or spin, or a motor fault may show. Moisture on the board is a common cause.
Part details
- Genuine Fisher & Paykel part 420296P
- Mk2 service version
- Also listed as 425221P
- Suits SmartDrive top loaders in the GW, IW and MW ranges
| Version | Mk2 service part |
|---|
Changing the rotor position sensor

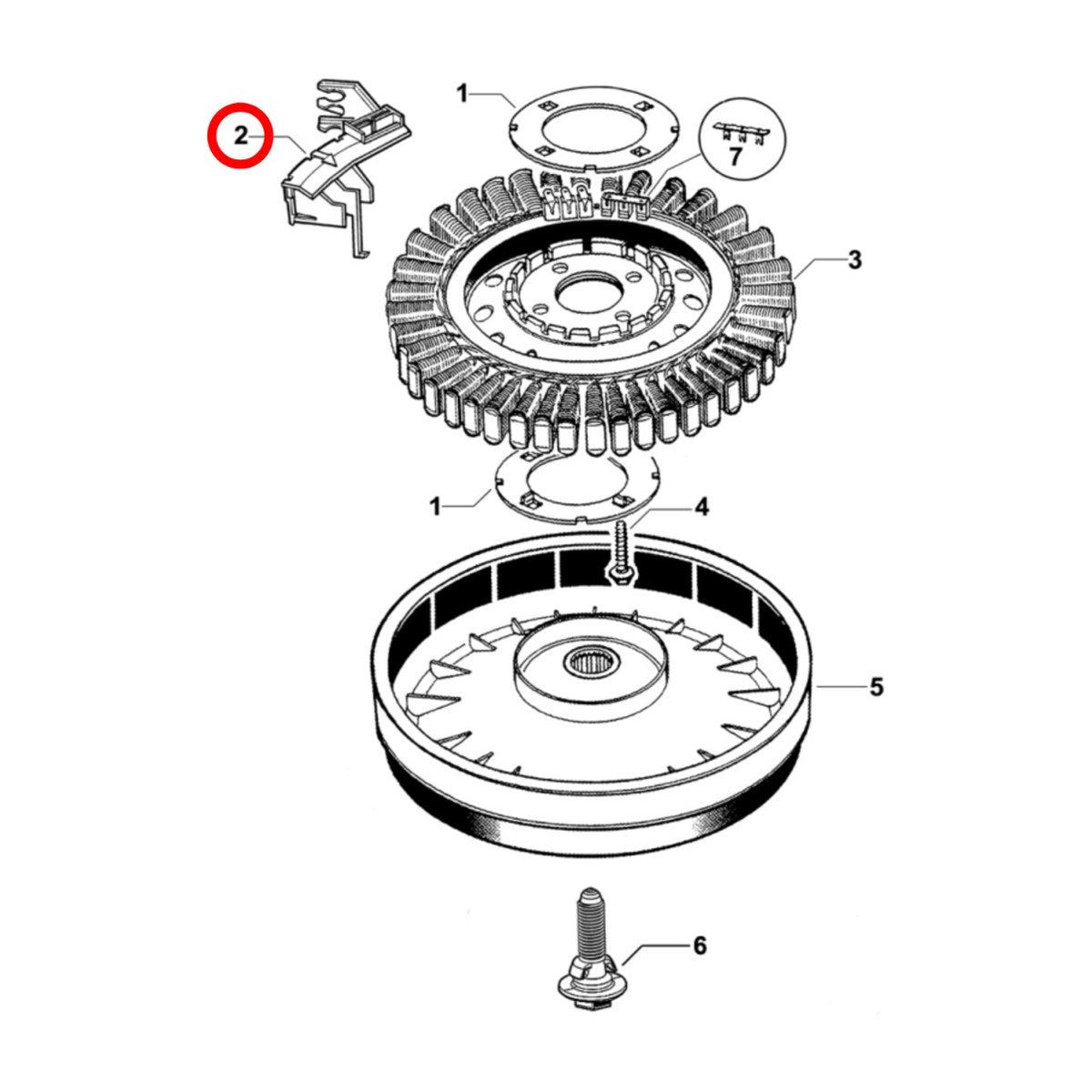

Unplug the washer and turn off both taps. The sensor sits on the stator under the machine, so the rotor has to come off first. Tilt the machine back against a wall with a helper, undo the rotor nut and pull the rotor straight off. Unplug and unclip the old sensor, fit the new one in the same position, then refit the rotor and test on a short cycle.
Questions about this part
Is 425221P the same part?
Yes, 425221P is cross referenced to 420296P, which is the Mk2 service version. If your old sensor board carries either number, this is the board to order.
Specifications
| Original part number | 420296P |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 420296P |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.4 kg |
