420148P Genuine Proportional Cold Inlet Valve 24V for Fisher & Paykel Washing Machines GW609 GW709 IW609 IW709 MW611 IWL10 AW095
- Original part no.
- 420148P
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

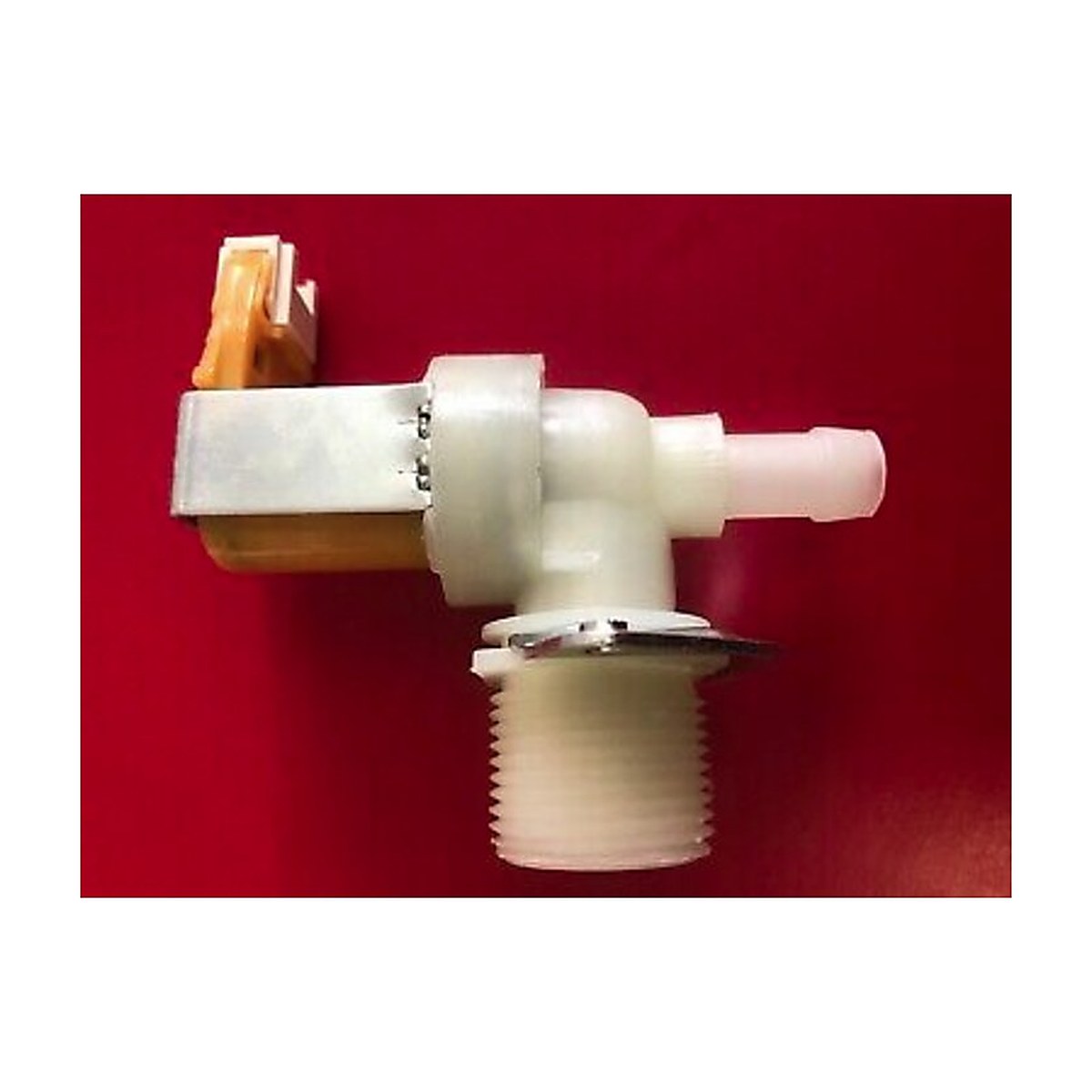

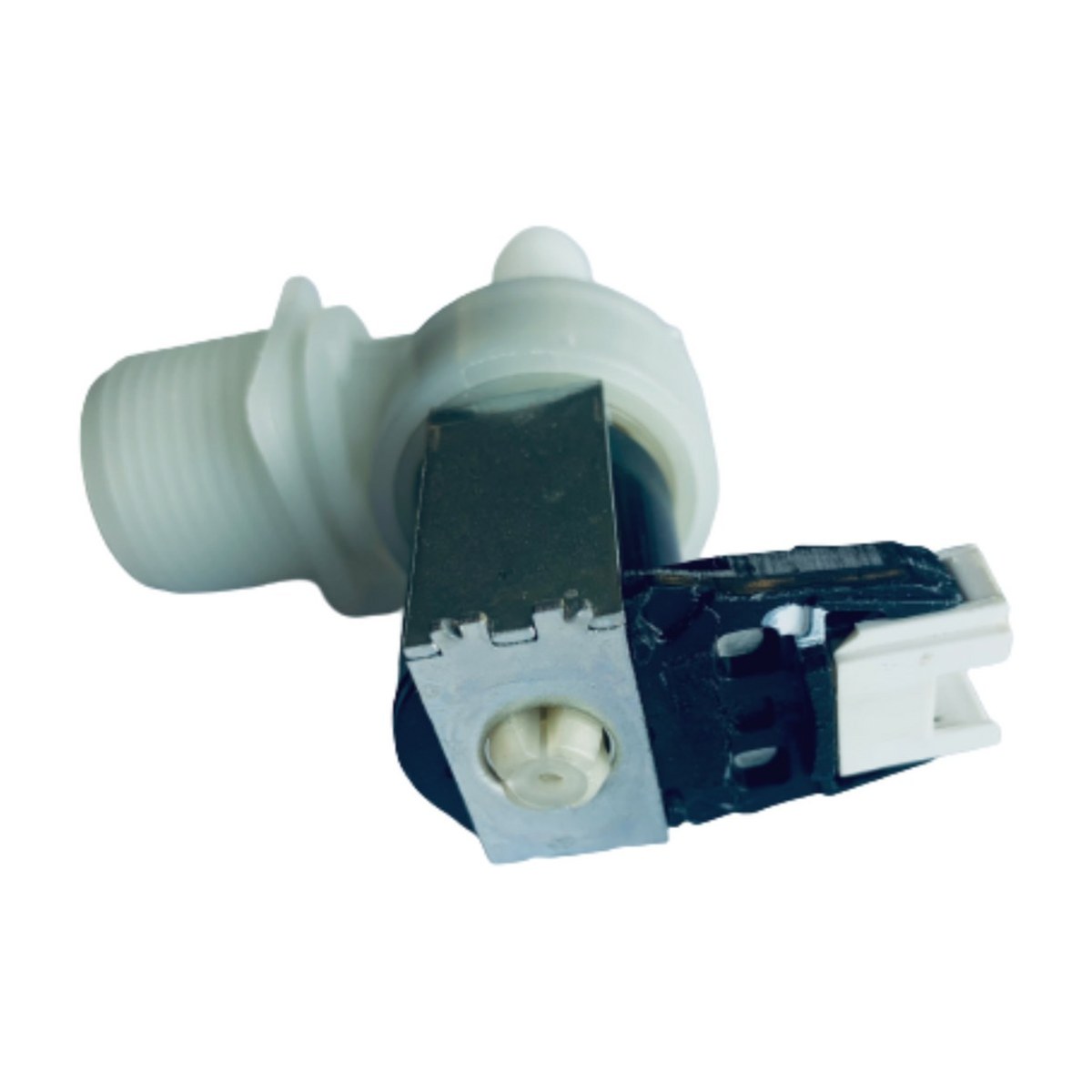

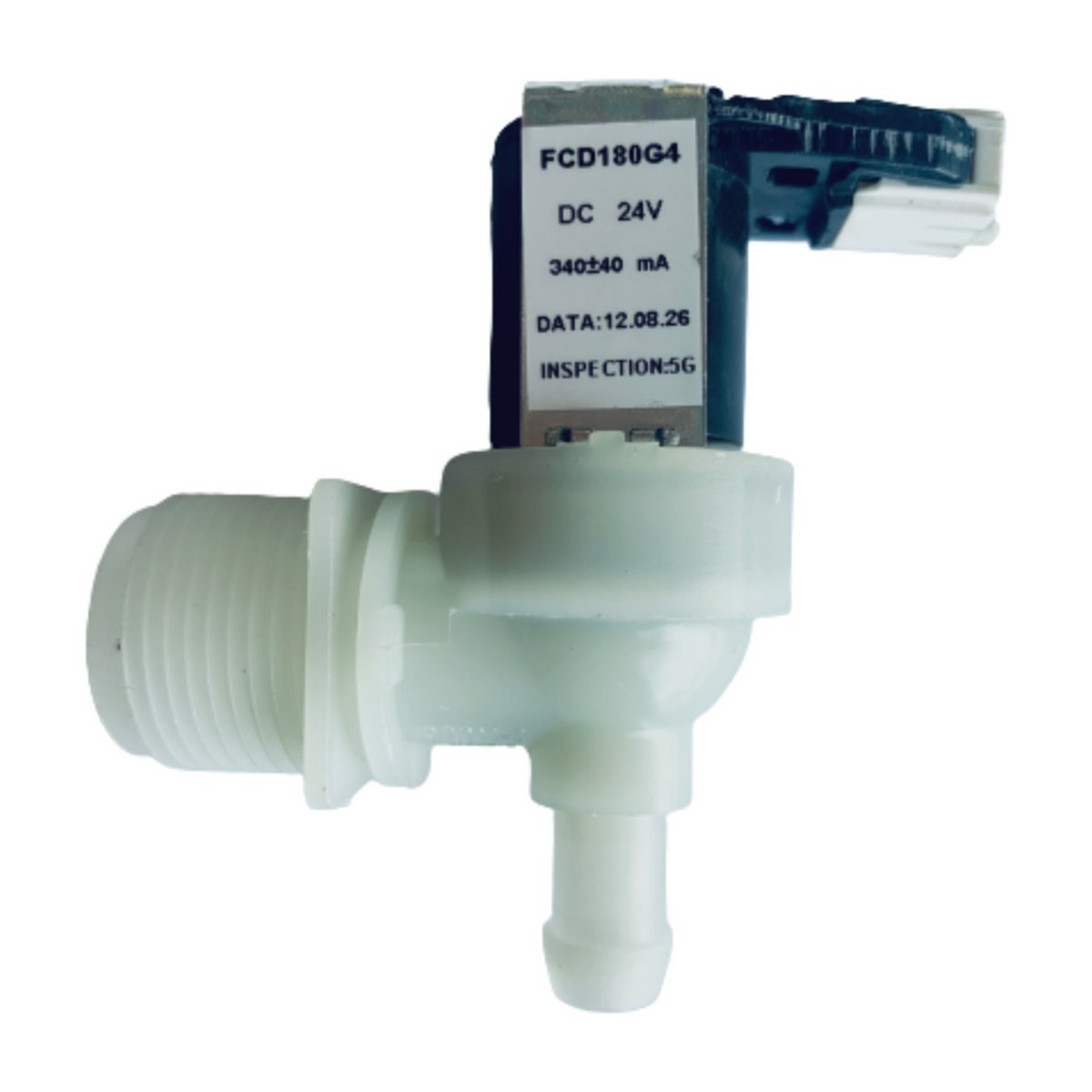

Fisher & Paykel top loaders from the GW, IW and MW families use this genuine proportional inlet valve on the cold water supply. Part 420148P runs on a 24V coil and is also referenced as 33190041. Models on file include the GW509, GW609, GW709 and GW711, the IW509 through IW812 range, IWL10, IWM10 and IWC09, plus the MW059, MW511, MW611, MW711, LW095 and AW095.
Fisher & Paykel washer not filling, filling slowly or running cold?
The inlet valve sits where the cold hose connects to the machine. Rather than simply opening and closing, a proportional valve can vary the flow it lets through, which helps the controller blend hot and cold water to reach the wash temperature you selected. When the coil fails or the valve sticks, the machine may not fill, fill very slowly, show a water supply fault, or keep letting water in after it should have stopped. Blocked inlet screens give similar symptoms, so check the hose filters and tap pressure before replacing the valve.
Part details
- Genuine Fisher & Paykel part 420148P
- Cross reference 33190041
- Proportional valve for the cold water supply
- 24V coil
- Listed for GW, IW, IWL, IWM, IWC and MW series top loaders
| Voltage | 24V |
|---|---|
| Water supply | Cold |
| Valve type | Proportional |
Fitting the cold inlet valve
Turn off both taps, switch off at the wall and unplug the washer. Disconnect the inlet hoses and have a towel ready for the water left in them. Take a photo of the wiring and internal hose before removing anything, then swap the valve and check each connector clicks fully home. Reconnect the hoses with sound washers, open the taps slowly and look for drips before running a short fill test.
Questions about this part
Is this the hot or the cold valve?
This valve is described as the cold side valve. Check the position and number of your old valve before ordering, as the hot side may use a different part. The model number is on the label, usually found at the back of the machine.
Specifications
| Original part number | 420148P |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 420148P |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
