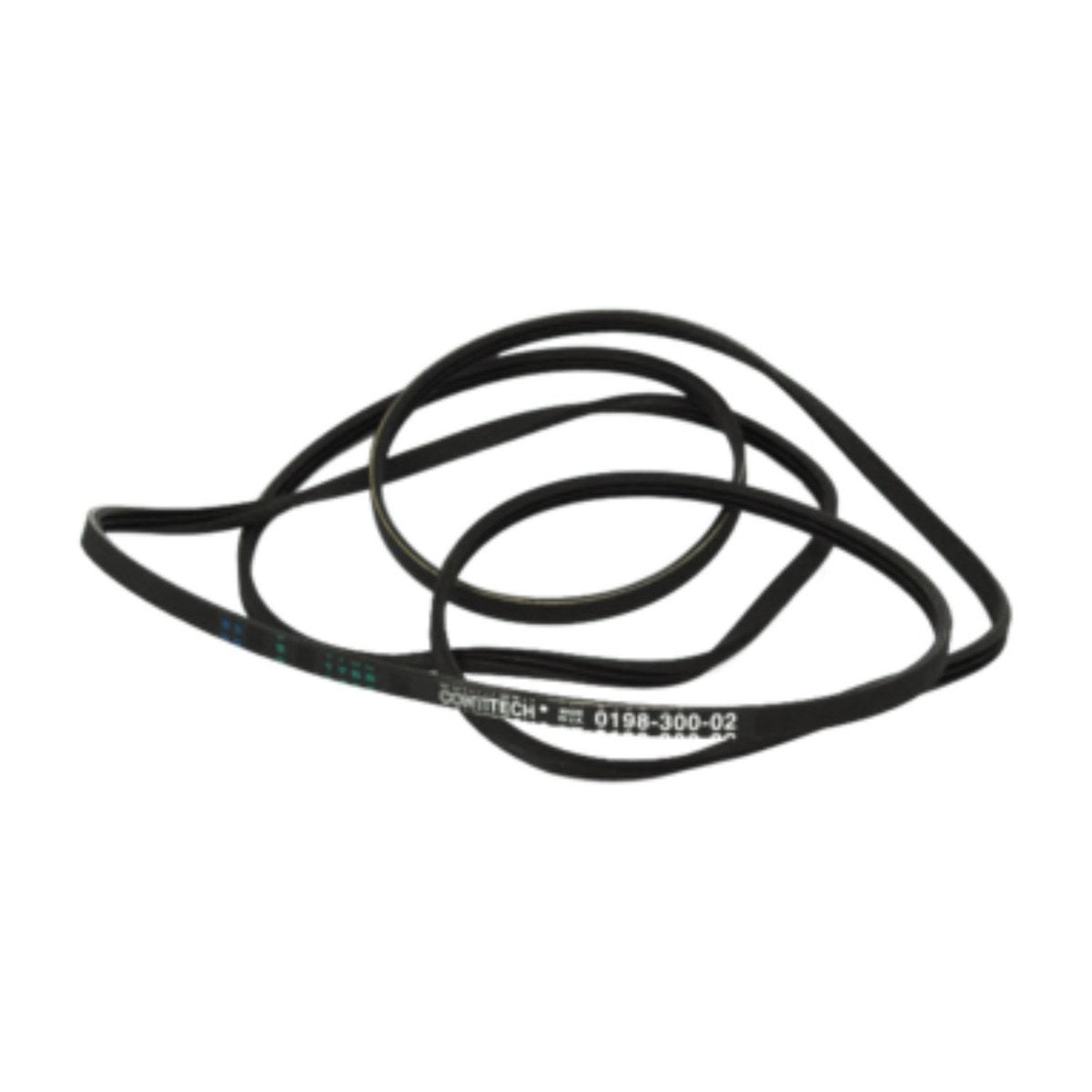

4055919791 Genuine Reversing Dryer Drum Drive Belt 1890mm for Simpson, Electrolux Dryers 39S500J 39S505E 39D505SR 39B512SA 5030DD

Reversing dryers turn the drum both ways to cut down tangling, and they need the right belt to do it. 4055919791 is the genuine 1890mm drum drive belt for these machines, replacing 0198300002. It's on file for 45 models. They include Simpson dryers such as the 39S500J and the 39D505SR, as well as models in the 3525, 5030, 5040 and 5050 ranges.

Dryer drum not turning or slipping

The belt is the only link between the motor and the drum, so when it breaks the motor will run, and may even heat, while the drum stays still. Before it snaps, a worn belt often stretches and slips, which you'll notice as a drum that hesitates when it changes direction, stops with a heavy load, or squeals on start-up. Cracks across the inside of the belt, shiny glazed sections and a burning rubber smell are other warning signs. If the empty drum spins freely by hand with no drag at all, the belt has most likely let go.

Part details

• Genuine Electrolux group part 4055919791
• Drum drive belt for reversing dryers
• Length 1890mm, listed as M75
• Replaces 0198300002
• 45 models on file, including Simpson 39 series

Fitting a reversing dryer belt

Disconnect the dryer from power before removing the panels. Photograph the old belt path around the motor pulley and tensioner, because reversing dryers can be fussy about routing. Wrap the new belt around the drum where the old one ran, then route it back around the pulley and tensioner the same way. Rotate the drum by hand several turns each way to check it tracks before closing up.

Questions about this part

Can I fit a non-reversing belt?

It's best not to. This belt is listed for reversing dryers, and the length and profile need to match what your machine was built with. Check that your model is on the list, or match the old belt's number.
