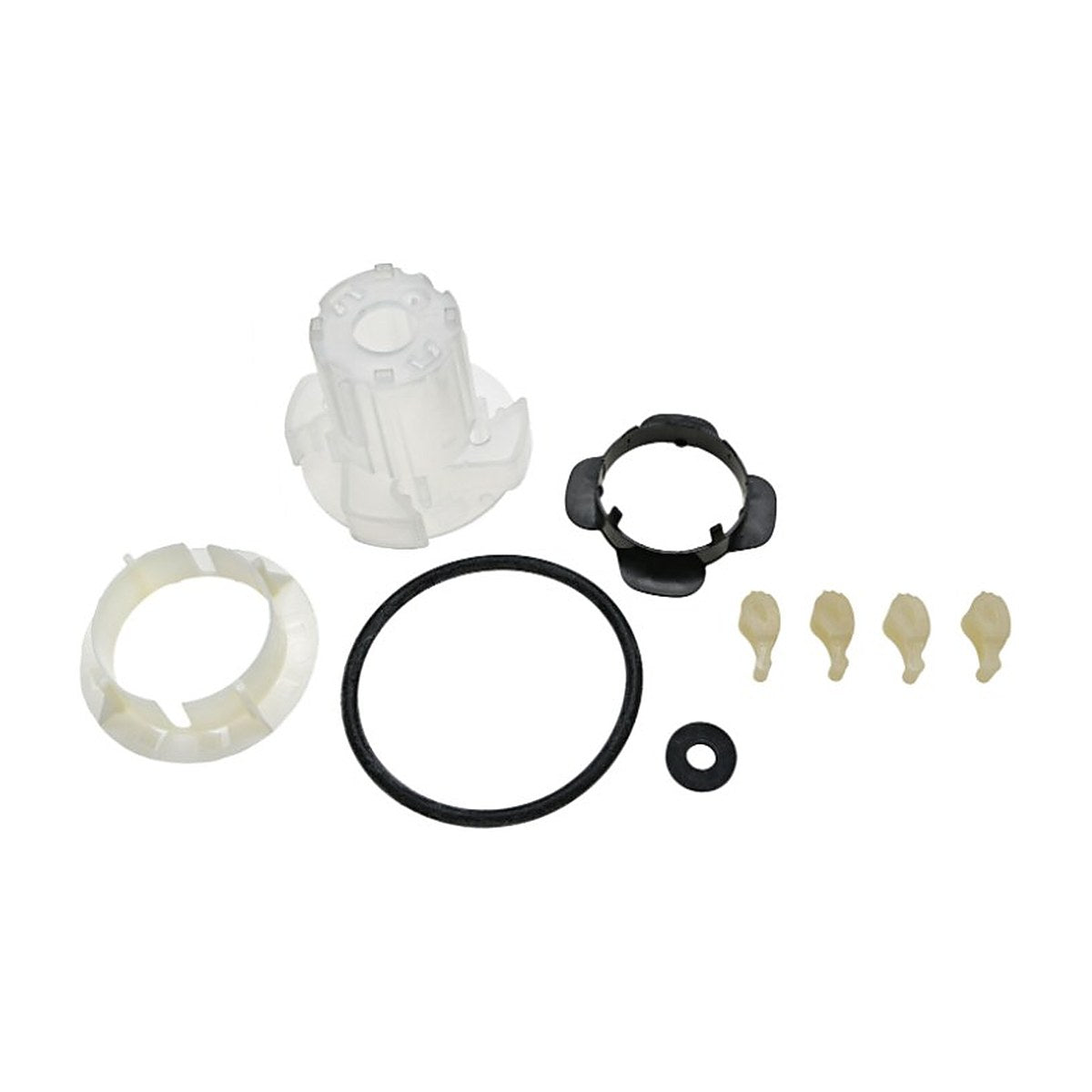

4055916284 Genuine Electrolux Agitator Cam for Whirlpool Top Load Washing Machines, Same Part as Whirlpool 285811

Part 4055916284 is a genuine Electrolux agitator cam that matches Whirlpool part 285811. Whirlpool no longer supplies 285811, so this is the way to get the same cam for a top loader that uses it. The cam sits inside a two-piece agitator and drives the upper section in one direction. It's not the long cam, so machines that need the long version take 285748 instead.

Top half of the agitator not turning?

Two-piece agitators have a lower section that swings back and forth and an upper auger section that should ratchet round in one direction, pulling clothes down into the wash. The cam and its dogs create that ratchet action. When the dogs wear or the cam cracks, the top section spins freely both ways or doesn't move at all. Clothes stop turning over, loads float on top, and washing results drop off. You may also hear clicking or grinding from inside the agitator during the wash.

Part details

• Genuine Electrolux part 4055916284
• Same part as Whirlpool 285811
• Agitator cam for two-piece agitators
• Long cam version is a different part, 285748

Fitting the agitator cam

Unplug the washer before you start. Pull off the agitator cap, undo the bolt or retainer and lift the upper section away to reach the cam. Clean out soap scum and any broken dog fragments so nothing jams the new parts. If the dogs are worn too, replace them at the same time, then reassemble and turn the top by hand to check it ratchets one way only.

Questions about this part

Is this the short or long agitator cam?

This is the cam that replaces Whirlpool 285811, not the long version. If your machine uses the long cam, the part you need is 285748. Compare the length of your old cam, or send your model number through our parts enquiry form and we'll confirm.
