4055732566 Genuine Wok Burner Spark Electrode 900mm Lead for Chef, Westinghouse Cooktops CFG517SANG WFG617SANG WHG955SA GSP625SNG WFE616SA WLG517WANG

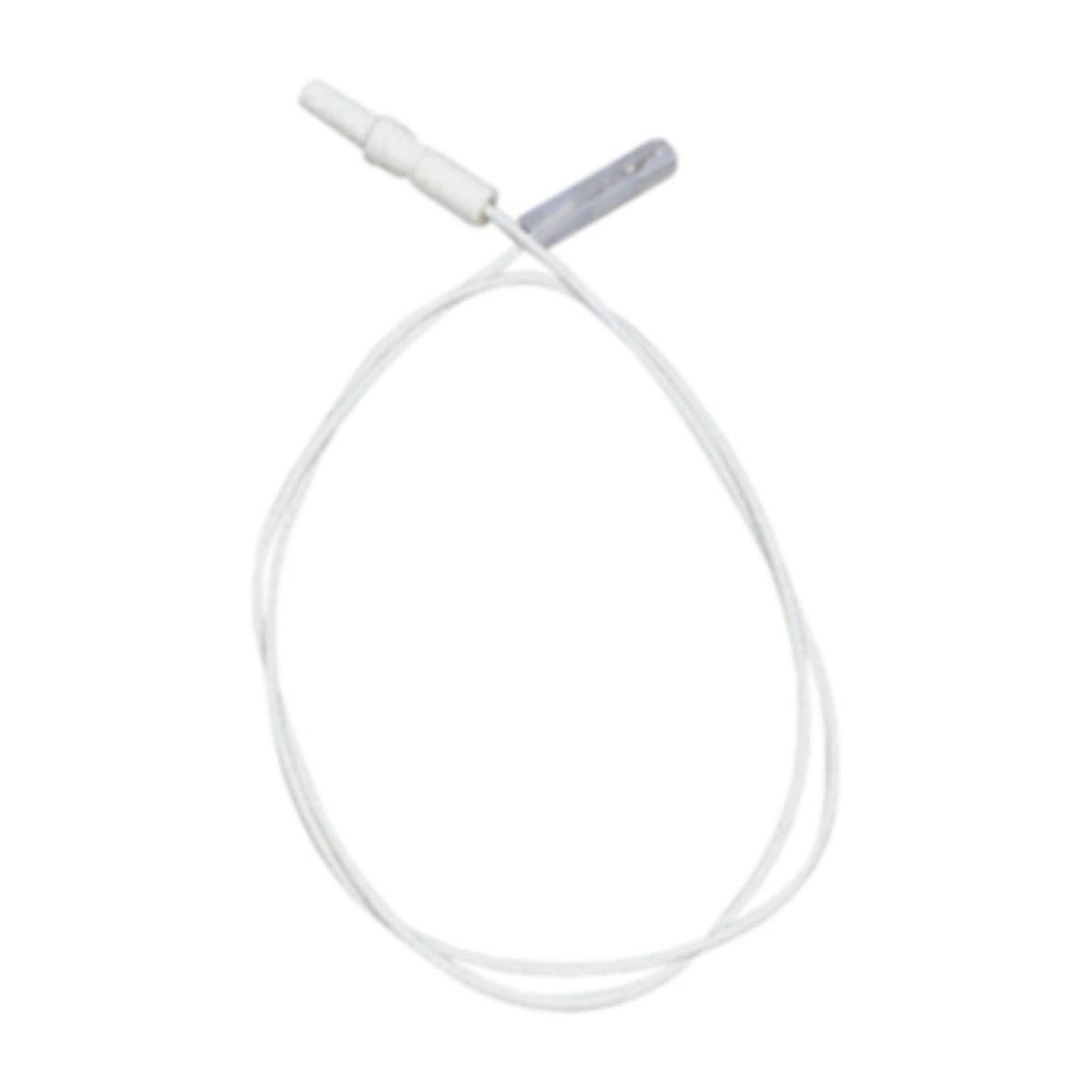

4055732566 is the genuine spark electrode for the wok burner, supplied with a 900mm lead. Also listed as 305523002, it suits Chef and Westinghouse gas cooktops and cookers including the CFG515 and CFG517 series, WFG617 and WLG517 models, and the WHG951SA and WHG955SA. It is also on file for the WFE616SA and WFE619SA, and the GSP625 and DSP635 ranges.

Wok burner clicking but not lighting

When you push and turn the wok burner knob, the ignition module sends a high voltage pulse down this lead to the electrode tip, which sparks across to the burner and lights the gas. A cracked ceramic insulator, a lead that has chafed or burnt, or a tip coated in food and grease can stop the spark jumping in the right place. Typical signs are clicking with no flame, a spark you can see jumping to the wrong spot, a weak spark, or a wok burner that is slow to light while the other burners work normally.

Part details

• Genuine Electrolux group part 4055732566
• Also listed as 305523002
• Spark electrode for the wok burner
• 900mm ignition lead
• Listed for 43 Chef and Westinghouse gas appliance models

Gas fitter installation

Work on the ignition of a gas appliance is a job for a licensed gas fitter. Isolate the power and gas before work starts. Route the new 900mm lead along the same path as the old one, clear of hot surfaces and sharp edges, and push it firmly onto the ignition module. Set the tip gap to match the old electrode, then test that the burner lights cleanly every time.

Questions about this part

Will cleaning the electrode fix my wok burner ignition?

Sometimes. Wipe the tip and the burner gently with a dry brush and make sure the burner cap is seated properly. If the ceramic is cracked or the lead is damaged, the electrode needs replacing by a licensed gas fitter.
