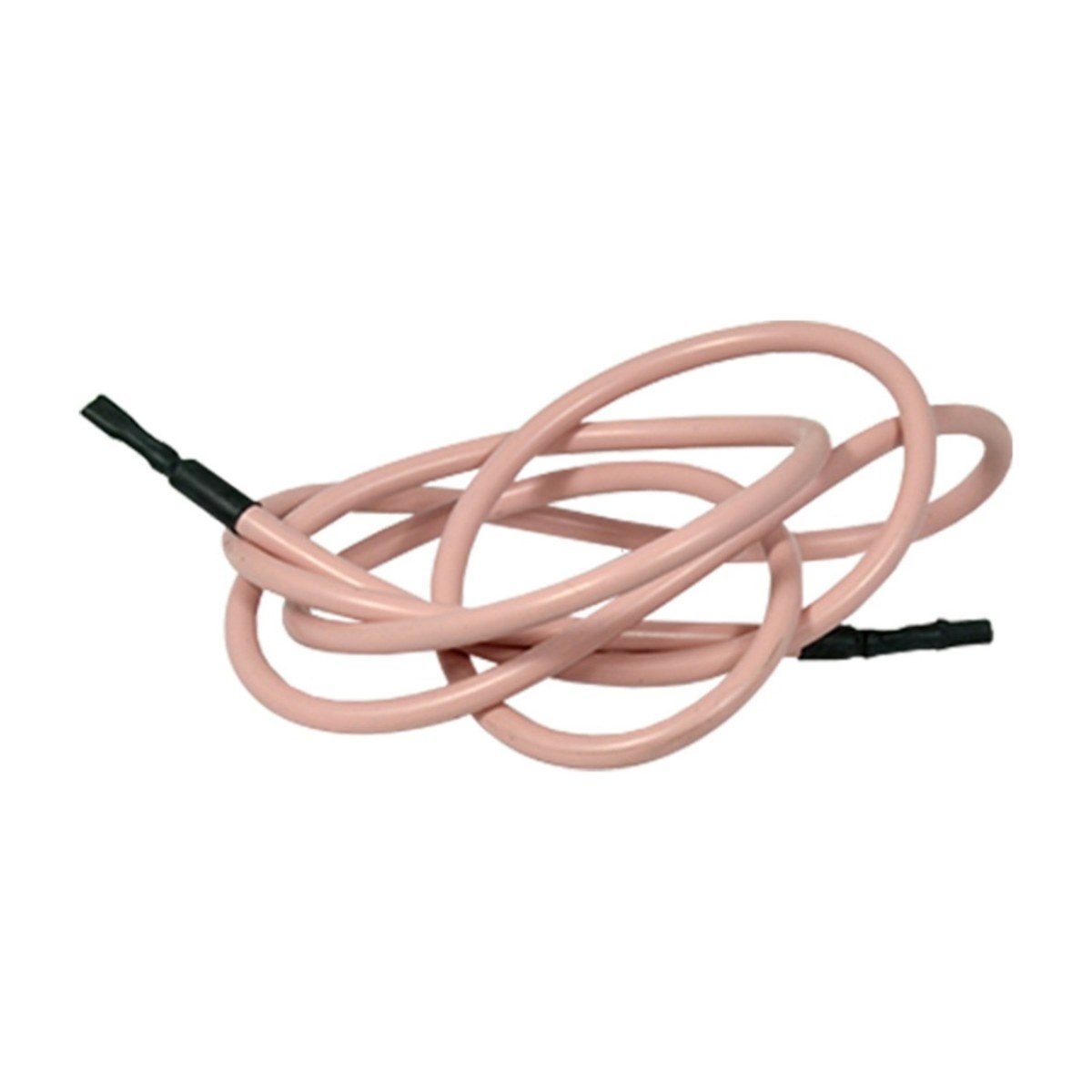

4055587424 Genuine Gas Oven Igniter Lead 1100mm for Chef, Westinghouse, Simpson Ovens CFG503WANG CFG517WANG WLG510WCNG GBC5246WNG GEK1385WNG-L

Listed for more than 300 model variants, harness 4055587424 is the genuine 1100mm igniter lead used in Chef, Westinghouse and Simpson gas cookers. Typical matches are the Chef CFG501, CFG503, CFG515 and CFG517 ranges, the Westinghouse WLG503, WLG510WCNG and WLG517, and GBC, GEK and C300 series models. It also appears as 0173020072.

Gas oven clicking but not lighting? Check the igniter lead

When the ignition is activated, the spark module sends a high voltage pulse along this lead to the spark plug or electrode at the oven burner. If the lead's insulation cracks, chafes against the cabinet or its connector loosens, the spark leaks away before it reaches the burner. You may hear clicking without seeing a spark at the oven, see a spark jumping from the wrong spot, or need several attempts to light the oven. Heat near the burner is the usual reason old leads go brittle.

Part details

• Genuine Electrolux group part 4055587424
• Also known as 0173020072
• 1100mm igniter lead
• Listed for Chef, Westinghouse and Simpson gas cookers
• Fits the Westinghouse WLG510WCNG

Changing the igniter lead

Turn off the gas and switch the cooker off at the power point or isolator first. Work involving gas components should be done by a licensed gas fitter. Trace the old lead from the spark module to the oven burner and photograph its route and clips. Fit the new lead along the same path, clear of hot surfaces and sharp edges, then test that a strong spark appears at the burner.

Questions about this part

How do I know the lead is faulty and not the spark module?

If the cooktop burners spark well but the oven does not, the lead or oven electrode is more likely than the module. Look for cracked insulation or burn marks along the lead. If nothing sparks anywhere, the module or switch is the likelier fault.
