4055578217 Genuine Oven Thermal Cutout 120C N/C for Westinghouse, Chef, Simpson, Electrolux Ovens WVE617S POR667S EVEP614SC SVE624SA
- Original part no.
- 4055578217
- Part grade
- Genuine
- Appliance
- Oven Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

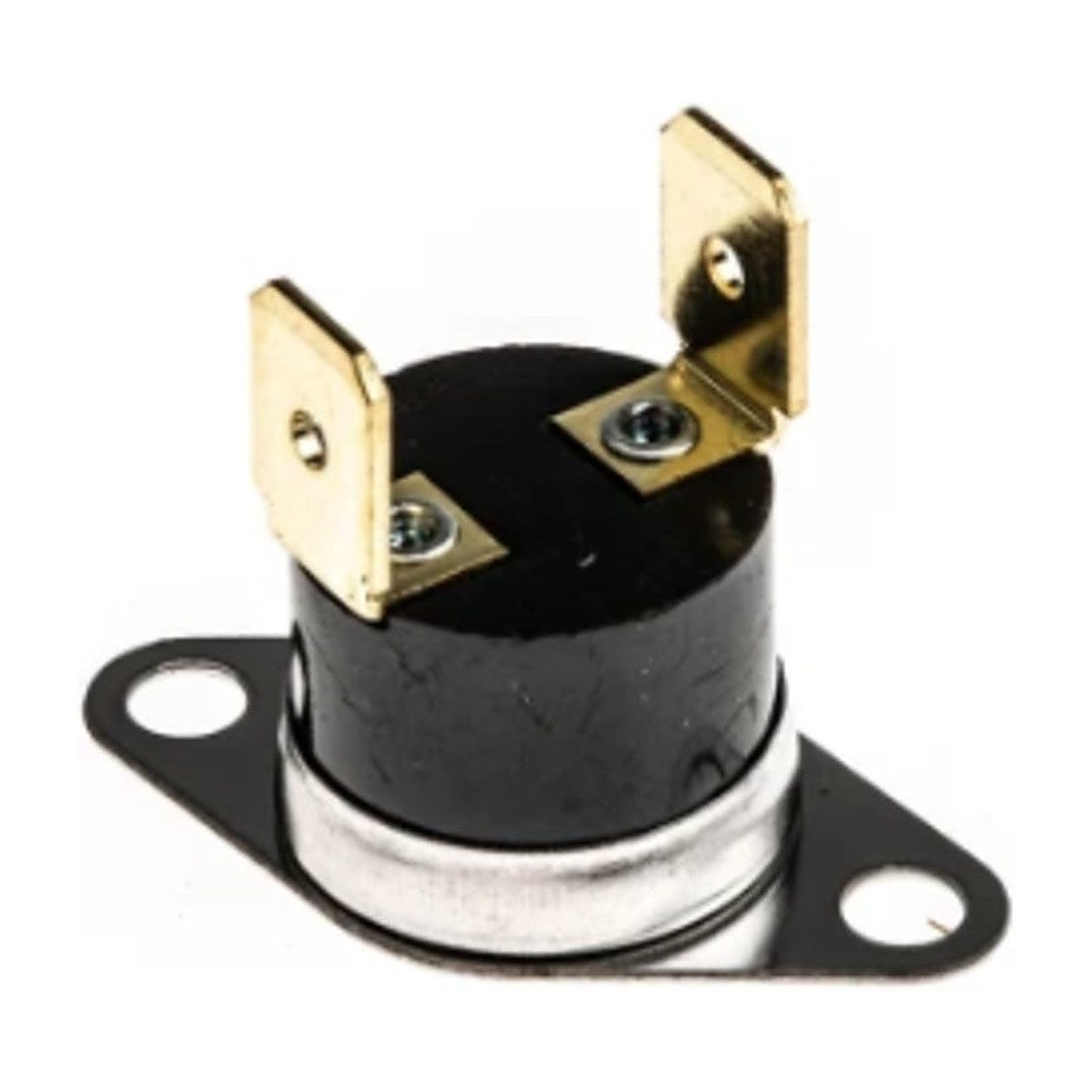

4055578217 is a genuine Electrolux safety thermal cutout that opens at 120C. It's a normally closed Klixon cutout rated 16A at 250V, fitted to a range of Westinghouse, Chef, Simpson and Electrolux electric ovens. Listed models include the WVE617S, POR667S, CVE662SA, SVE624SA and EVEP614SC. If your oven has died completely and the cutout tests open circuit when cold, this is the part to order.
Oven cutting out or not heating at all?
This cutout is the oven's last line of protection against overheating. It sits in the circuit as a closed switch and snaps open if the temperature where it's mounted climbs past 120C, cutting power before anything gets damaged. Once it trips repeatedly or fails, the oven may shut down mid-cook, refuse to heat at all or lose power to the elements. A cutout that has failed open stays open circuit even when cold. If it keeps tripping, look for the cause as well, such as a cooling fan that has stopped or a door seal letting heat out.
Part details
- Genuine Electrolux part 4055578217
- Opens at 120C, normally closed contacts
- Rated 16A 250V AC
- Ceramic body with 24mm mounting hole spacing
- Two 6.4mm spade terminals
- Also listed as 0541001242 and 0541001269
| Opening temperature | 120C |
|---|---|
| Contacts | Normally closed |
| Rating | 16A 250V AC |
| Terminals | 2 x 6.4mm spade |
| Mounting hole spacing | 24mm |
| Body | Ceramic |
Testing and fitting the cutout
Switch the oven off at the switchboard before opening any panels, and use a licensed electrician if it's hard-wired. Test the old cutout cold with a multimeter. A good one shows continuity. Note which wire goes to each spade terminal, swap the cutout and screw it down firmly against its mounting surface so it senses heat properly. Find out why it tripped before using the oven again.
Questions about this part
Will 4055578217 fit my Westinghouse WVE617S?
Yes, the WVE617S is one of the listed models for this cutout, along with the WVEP615 and WVEP618 series. For any other oven, compare the model number on the door frame label with the list on this page.
Why does my oven keep tripping the cutout?
A new cutout fixes a failed switch, but repeated tripping usually points to overheating somewhere else. Common causes are a failed cooling fan, a faulty thermostat or a door that isn't sealing properly.
Specifications
| Original part number | 4055578217 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 4055578217 |
| Appliance | Oven Parts |
| Shipping weight | 0.4 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
