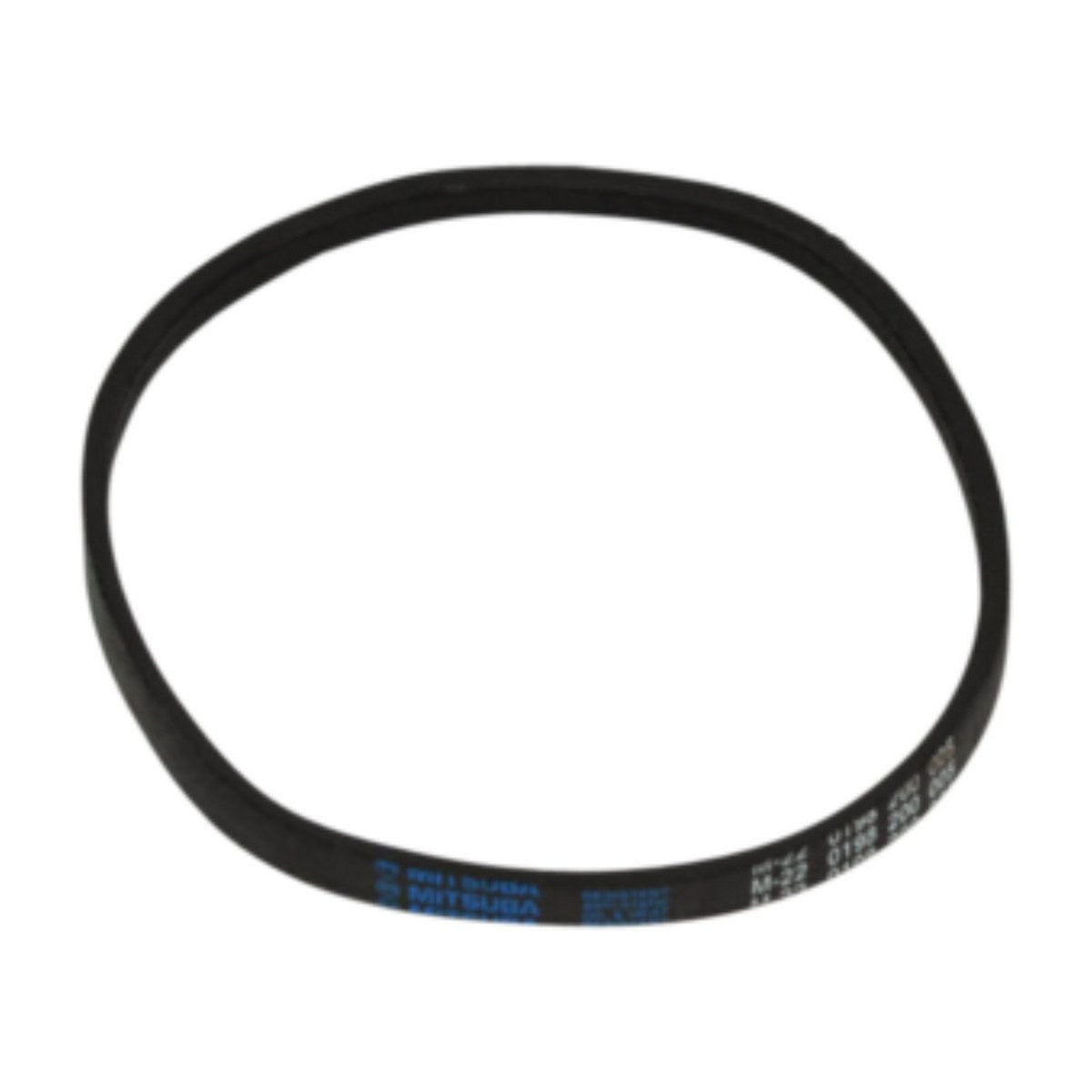

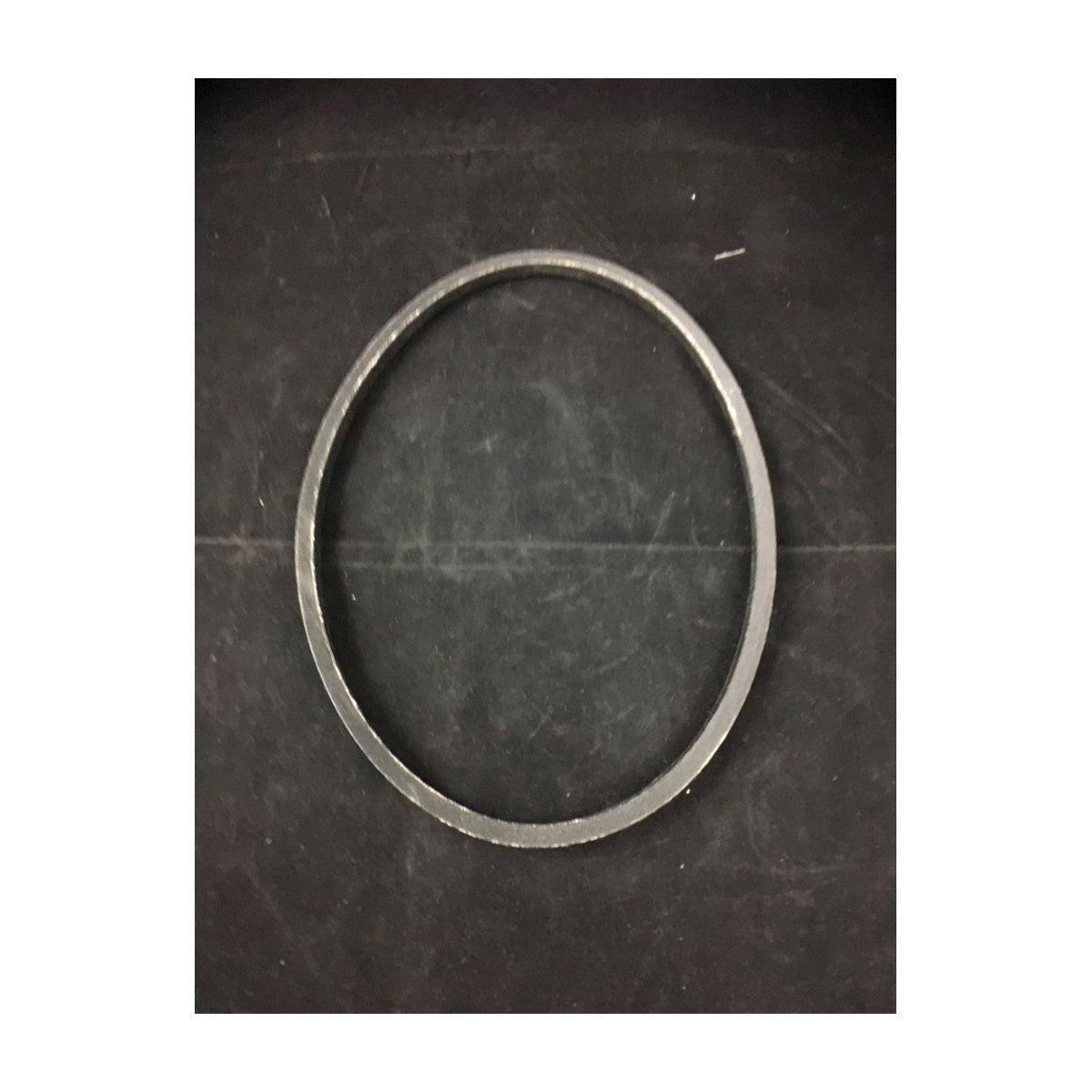

4055577011 Genuine Drive Belt Z560 for Simpson Top Load Washing Machines LT608SA LT609SA LT758SA LT809SA LT908SA LT955SA LD800S LD850SA

Part 4055577011 is the genuine drive belt for Simpson top load washing machines, listed as a Z560 belt and also known by number 0198200005. It suits Simpson LT models such as the LT608SA and LT609SA, the LT758SA, LT809SA and LT908SA, and the LT955SA, along with the LD800S and LD850SA. Ordering by 4055577011 or 0198200005 gets you the right length for these machines.

Simpson top loader not spinning or agitating? Check the belt

In these Simpson machines the motor sits under the tub and drives the gearbox through a rubber belt. When the belt stretches, glazes or snaps, the motor may still hum while the agitator or basket barely moves. You might hear the motor running with no wash action, notice the agitator stalling under a full load, get a weak or slow spin, or smell hot rubber. Black dust under the machine and a belt that looks shiny or cracked are tell-tale signs. A belt that keeps coming off can also point to a worn pulley or a loose motor mount.

Part details

• Genuine Electrolux group part 4055577011
• Linked number 0198200005
• Z560 drive belt
• Listed for Simpson LT608SA and LT609SA, LT758SA and LT809SA, LT908SA and LT955SA, plus LD800S and LD850SA

Fitting the drive belt

Unplug the washer from the power point and turn off both taps. Tip the machine back carefully, or lay it on its side on a blanket, to reach the underside. Loosen the motor mount if needed, fit the belt over both pulleys and set the tension so it has a little give without slipping. Look over the pulleys for wear while you're there, then test with a short wash.

Questions about this part

How do I find my Simpson model number?

Look for the rating plate on the back of the cabinet or under the lid. The model reads like LT608SA, sometimes followed by a star and two digits such as *01, which marks the production version. Compare it with the list on this page.
