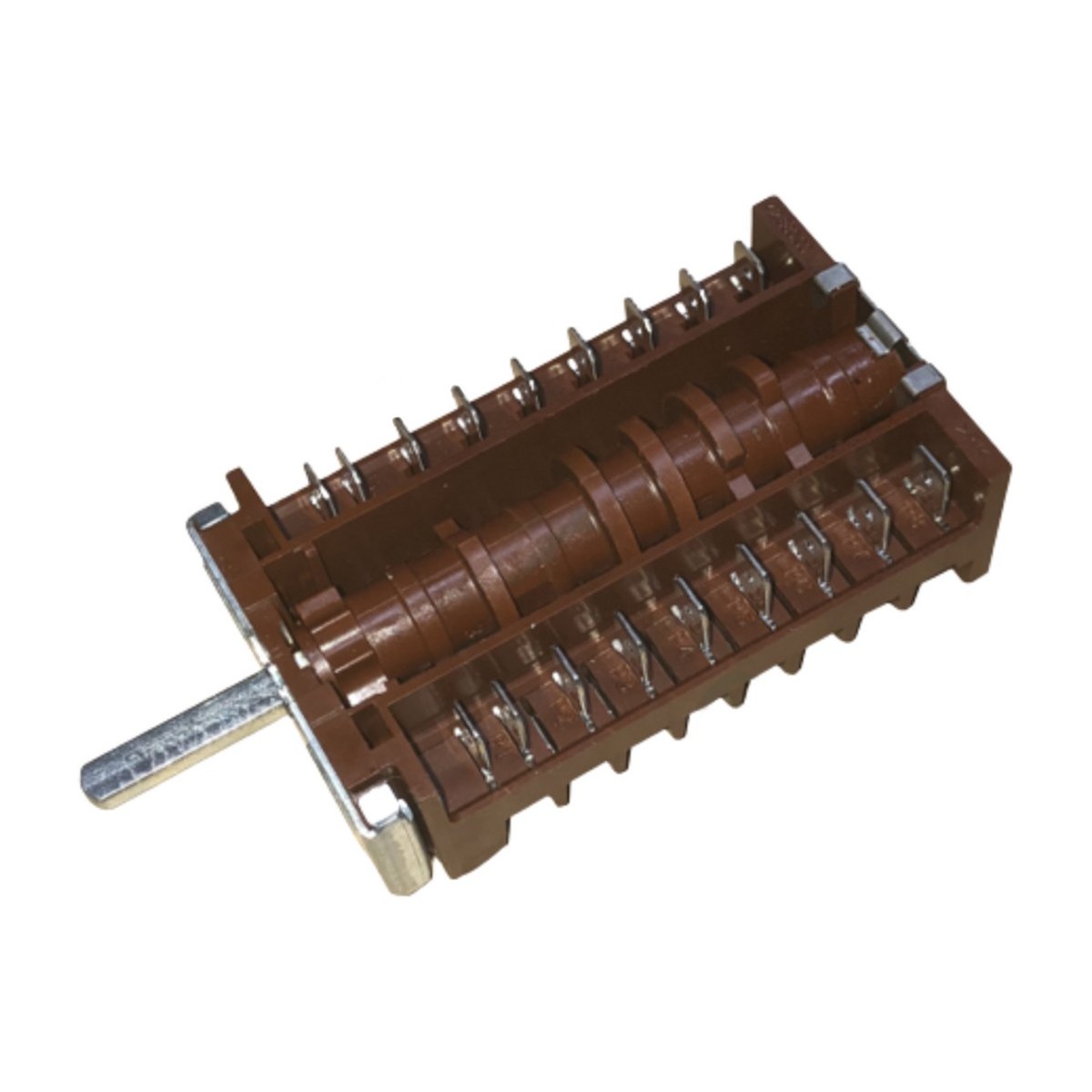

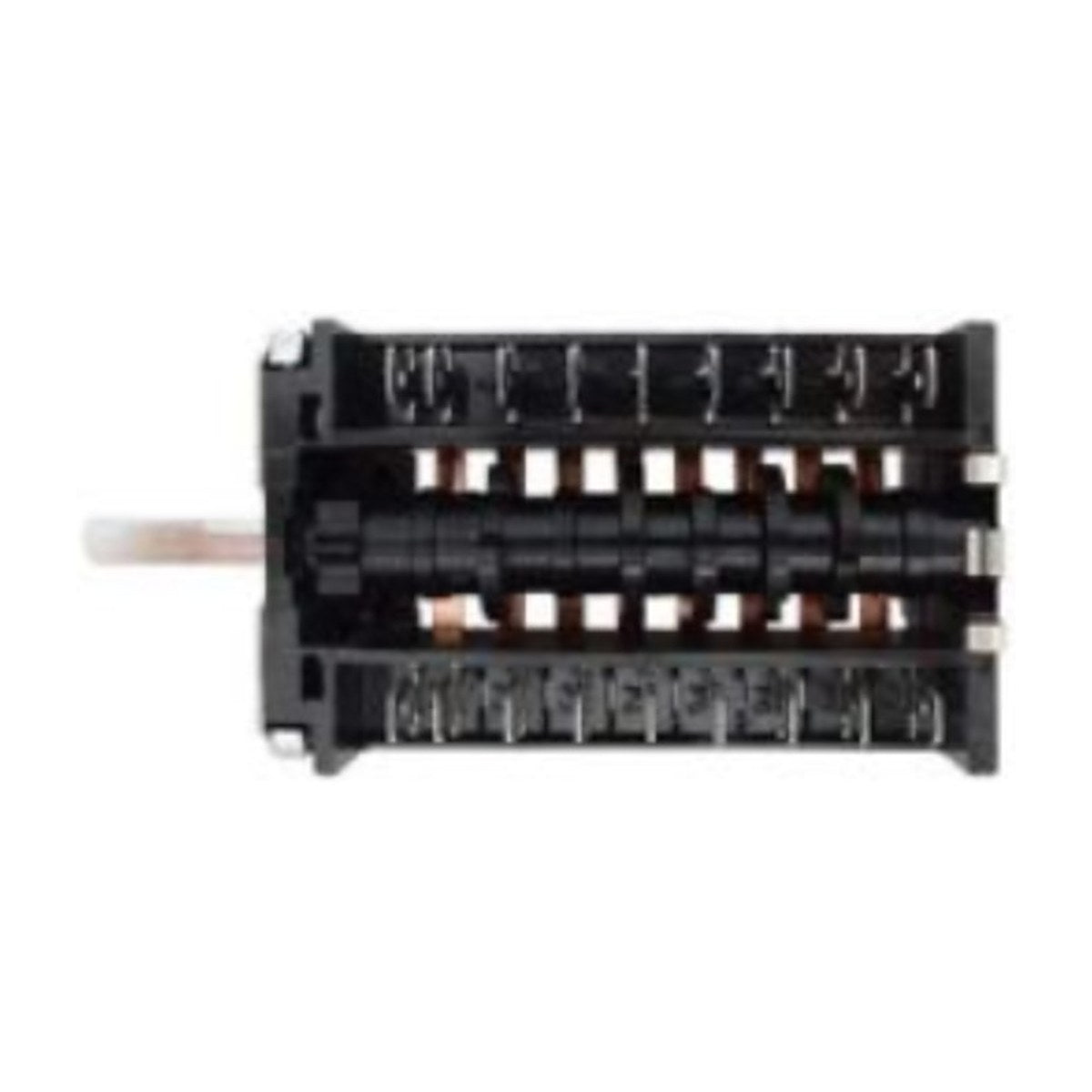

4055565040 Genuine Oven Selector Switch 8 Position for Westinghouse, Electrolux Ovens WVE616S WVE626S WFE914SA POR668S PDR790S EOEM61CS

Genuine part 4055565040 is the 8 position multifunction selector switch used across a wide range of Westinghouse and Electrolux ovens. It replaces the older number 0534001739. There are 124 models on file, among them the WVE616S, WVE626S and WVE636S, the WFE912SA and WFE914SA, the POR668S and PORS668S-L, the PDR790S and PDP790S, and the EOEM61CS and EOB307CX-C.

Westinghouse oven functions not working? Test the selector switch

Each click of the function knob moves this switch to a new set of contacts, sending power to the bake, grill or fan element, the fan motor and the lamp in the right combination. The contacts carry high current, so over the years they pit and burn, and a shorted element can damage them quickly. Common complaints include the oven working on some settings but not others, the light coming on with no heat, a scorched smell near the knobs, or a loose knob with no positive click.

Part details

• Genuine Electrolux group part 4055565040
• Replaces old number 0534001739
• 8 position function selector switch
• 124 oven models on file
• Includes WVE, WFE, POR and PDR models as well as EOEM61CS

Replacing the switch safely

Switch the oven off at the circuit breaker, because most wall ovens are hard-wired and the work should be done by a licensed electrician. Remove the control panel to reach the switch. Before disconnecting, number each wire against its terminal and take a photo. Fit the new switch, transfer the wires exactly, refit the panel and knob, then check every function heats as it should.

Questions about this part

My old switch has a different number. Is this the right one?

If your old switch or parts list shows 0534001739, this is its replacement. The switch maker's own code may also be printed on the body. If you are unsure, send the oven model number from the rating plate through the parts enquiry form.
