4055563383 Genuine Rapid Burner Cap 100mm Enamel for Chef, Simpson, Westinghouse Cooktops CFG504SANG WLG503WANG CHG642SA CHG956SA GHC605S GHS605S

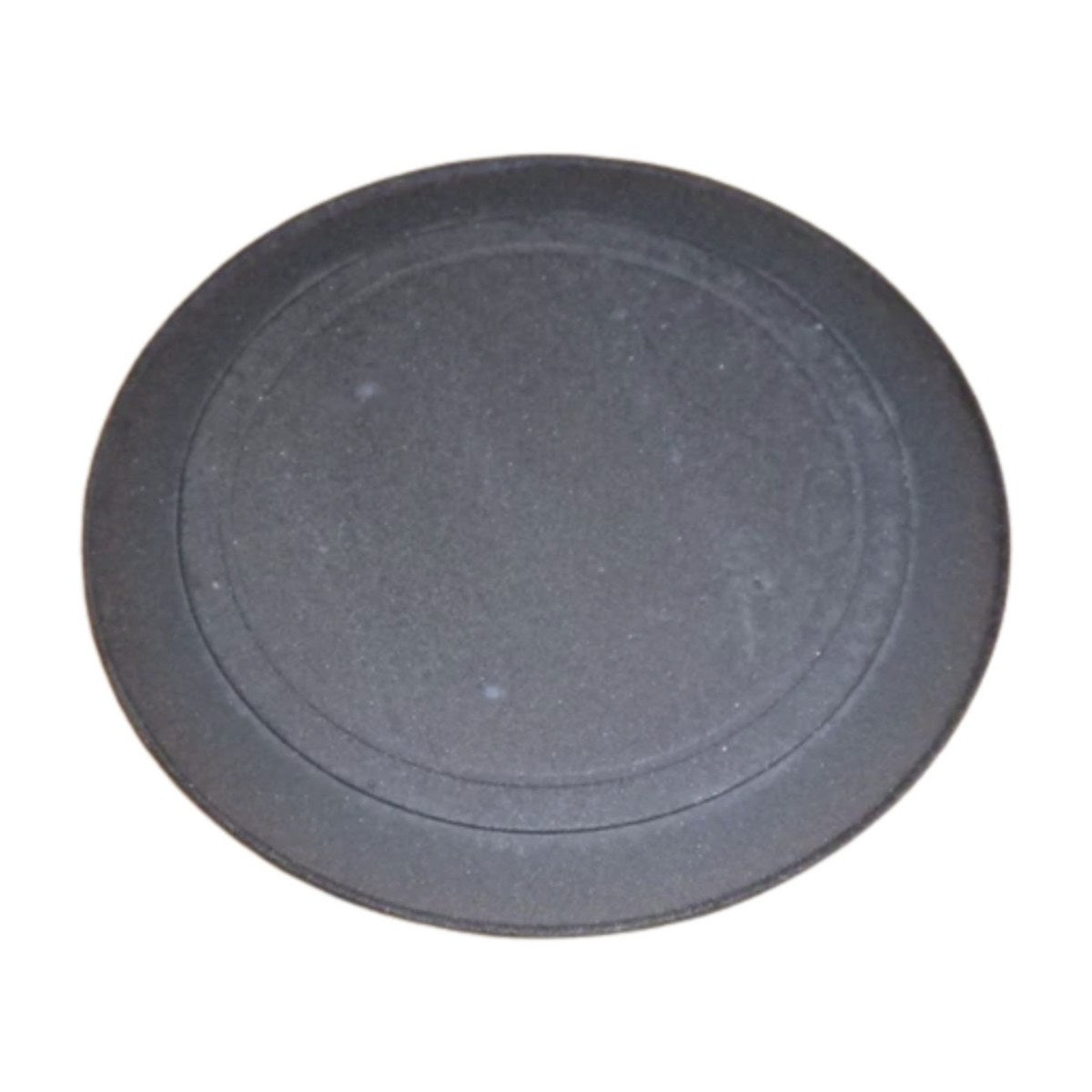

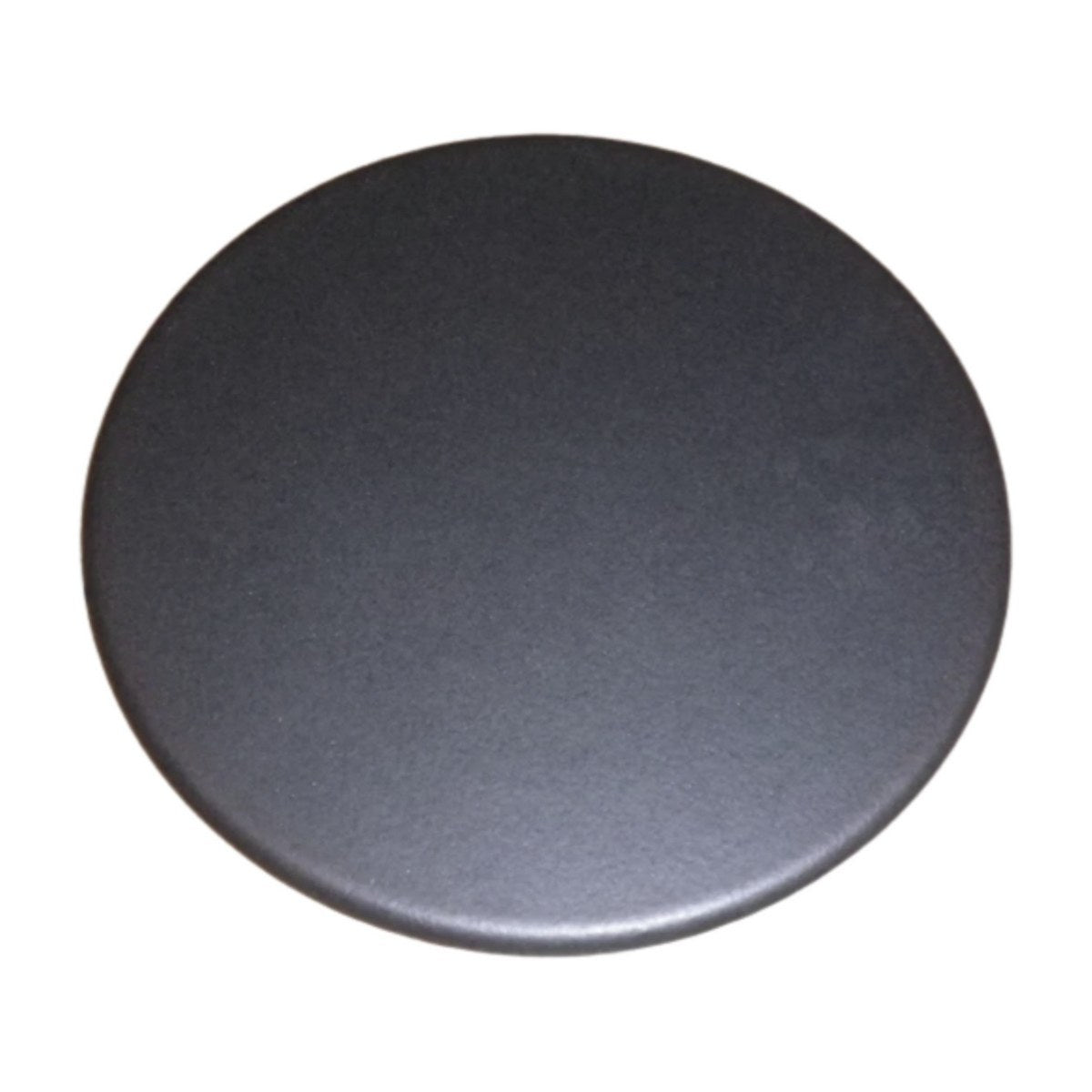

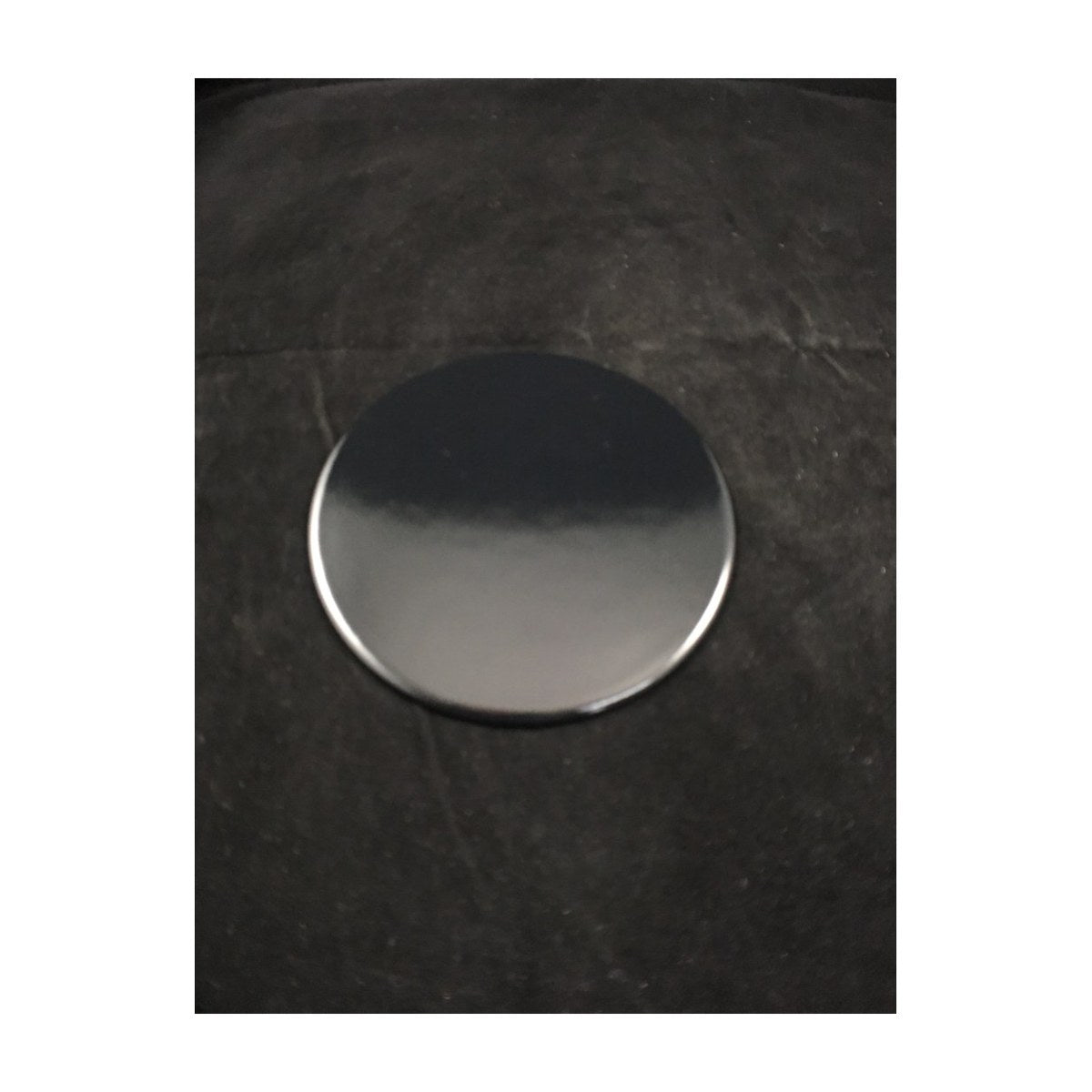

4055563383 is the genuine large enamelled cap for the rapid burner, measuring 100mm across. It suits a long list of Chef, Simpson and Westinghouse gas cooktops and cookers, and older parts lists may show it as 354013904, 0004008393 or 4055574331. Models on file include CFG503 and CFG504 units, the CHG642 and CHG956, WLG503 and WLG505 models, GHC605 and GHS605 series, and GEK1235 models.

Rapid burner lighting badly or burning yellow

The rapid burner is the large, high output burner used for boiling and fast frying. Its cap sits on the burner head and directs gas out through the ports in an even crown of flame. Constant high heat, boil-overs and harsh cleaners wear away the enamel, and a cap that has been dropped can warp. A damaged cap may give a patchy, lifting or yellow flame, slow ignition, or flames that go out when a heavy pan is put down.

Part details

• Genuine Electrolux group part 4055563383
• Alternative numbers 354013904, 0004008393 and 4055574331
• 100mm enamelled cap for the rapid burner
• Listed for 71 Chef, Simpson and Westinghouse gas models

Replacing the rapid burner cap

With the burner off and cool, lift off the pan support and the old cap. Brush out the burner ports, wipe the head clean and let it dry before fitting the new cap. Check it sits flat and fully seated, then light the burner to confirm an even flame. Never force a cap into place or try to adjust gas parts yourself, as any gas work needs a licensed gas fitter.

Questions about this part

Is this the large cap or the small one?

This is the large 100mm cap for the rapid burner. Smaller burners on the same cooktop take different caps, so measure your old cap across the top before ordering to be sure you get the right size.
