4055561361 Genuine Large Hotplate Trim 200mm for Chef, Simpson, Westinghouse Cooktops EBC5010W EBC5201W EUC5110W 61D810W 61C810W CLE527WB

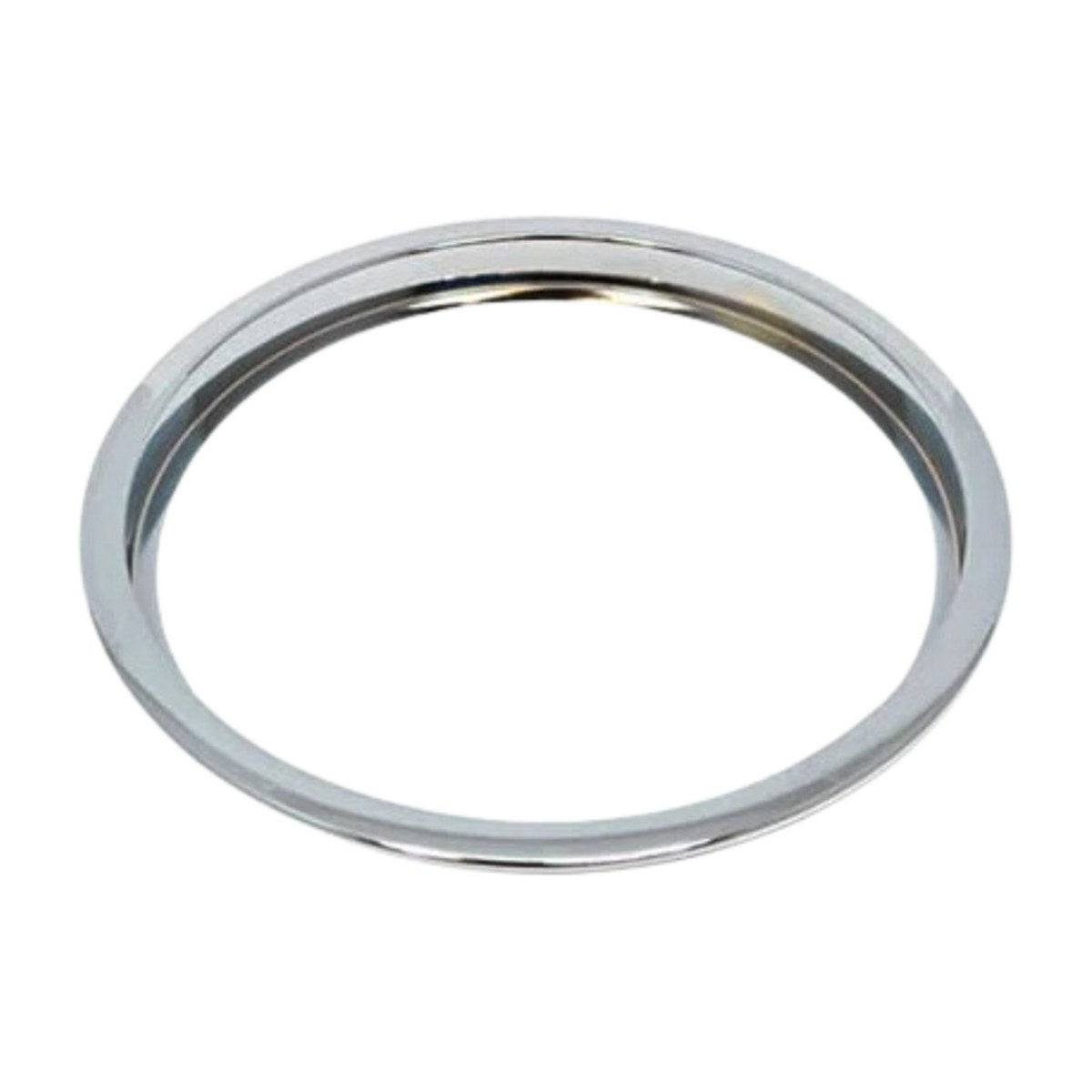

4055561361 is the genuine large trim and support plate for the 200mm hotplate on Chef, Simpson and Westinghouse electric cookers and cooktops. Listed models include the EBC5010W and EBC5030W, the EBC5201W, EBC5241W and EBC5261W, the EUC5110W and EUC5130W, older 61C and 61D series cookers and the CLE527WB, with 199 models on file in all. It is linked to numbers 0545002976 and 0545002481.

Replacing a rusted or warped hotplate trim

The trim sits around and under the large coil hotplate, supporting the element and finishing off the opening in the cooktop. After years of heat, boil-overs and scrubbing, it can rust through, warp so the element sits unevenly, or crack and lose its finish. A hotplate that rocks, tilts pans or sits proud of the cooktop often points to a damaged trim or support plate, and uneven contact with the pan means slower, patchy heating. Replacing it gives the element a stable seat again and smartens up the look of the cooktop.

Part details

• Genuine Electrolux group part 4055561361
• Linked to 0545002976 and 0545002481
• Large trim and support plate for a 200mm hotplate
• Listed for 199 cooker and cooktop models
• Covers EBC, EUC, EEC, 61C and 61D series

Fitting the new trim

Switch the cooker off at the isolating switch and make sure the hotplate is cold. Lift the element as your manual describes, taking care not to strain its terminals or wiring, and remove the old trim. Seat the new trim in the same position, lower the element back into it and check it sits flat and level. If the wiring or terminals look burnt, have a licensed electrician check them before using the cooktop.

Questions about this part

Is this the trim for the large or small hotplate?

This is the large trim, listed for 200mm hotplates. Measure your element across its coils, and if your cooktop also has smaller plates, check the trim number for those separately before ordering.
