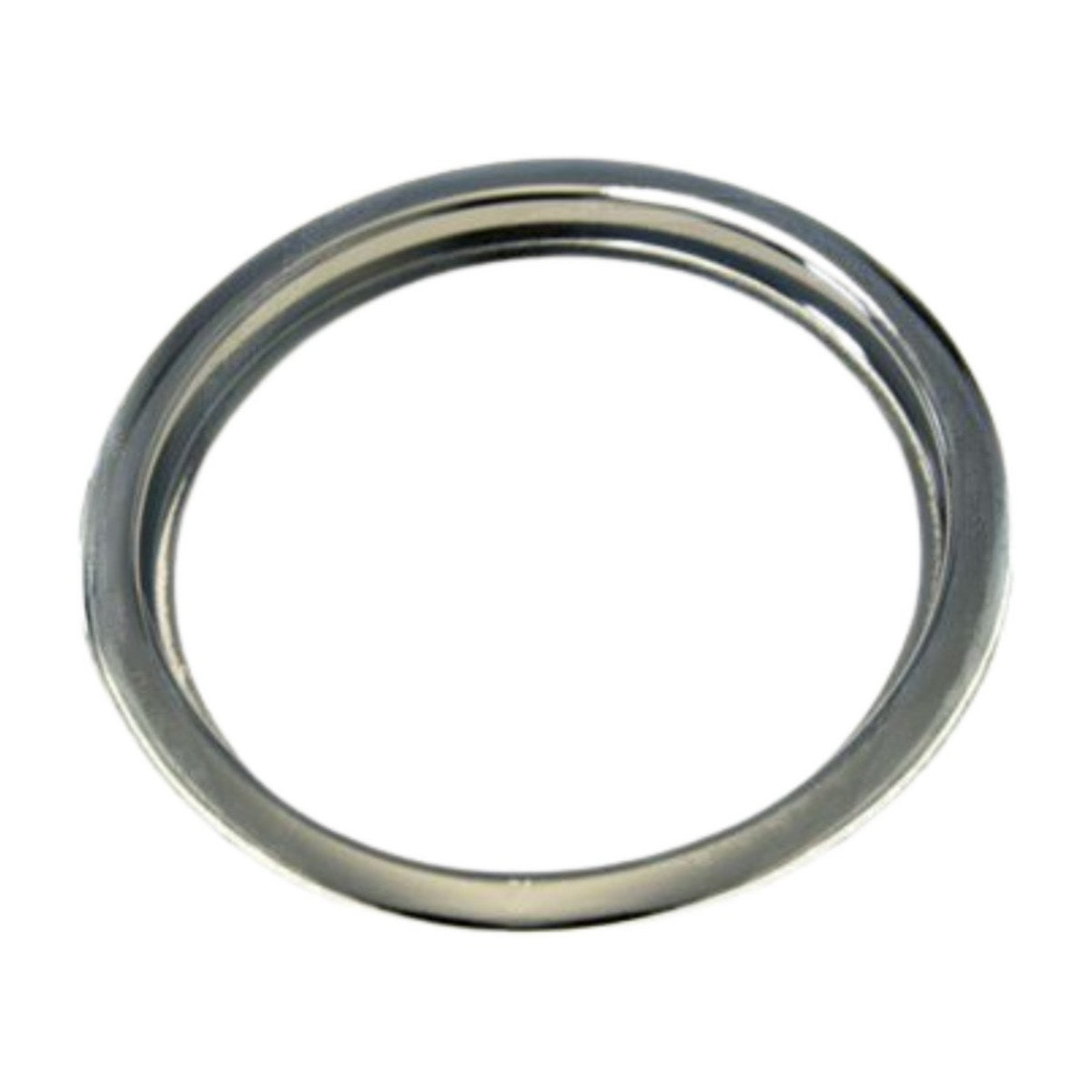

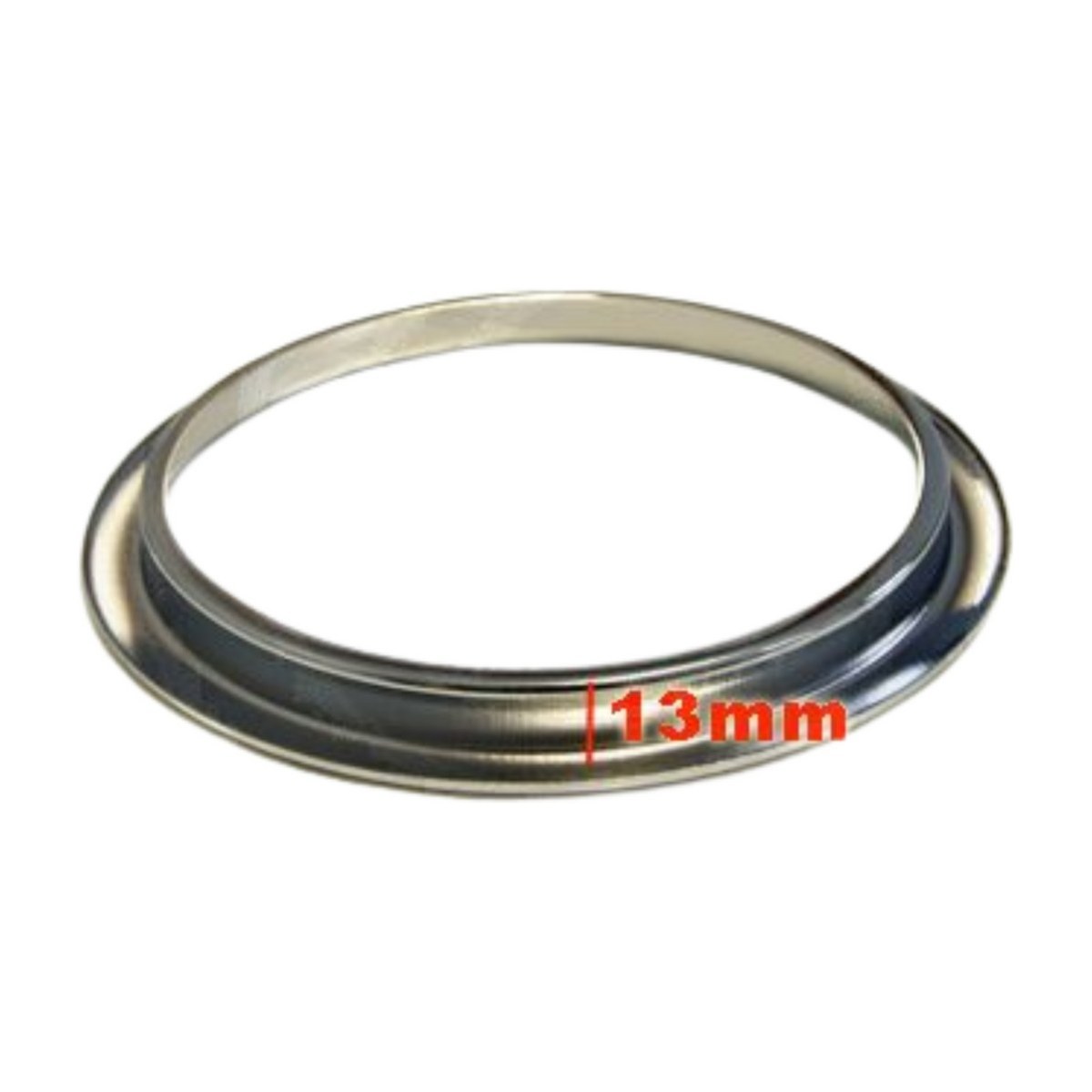

4055561353 Genuine Small Hotplate Trim Ring 150mm for Chef, Westinghouse, Simpson, Electrolux Cookers CLE527WB EBC5010W 61C810W 61D817W

Part 4055561353 is the genuine small 150mm hotplate trim ring for Chef, Westinghouse, Simpson and Electrolux cookers. With 226 models on file, it is listed for cookers such as the Chef CLE527WB, the EBC5010W, EBC5030W and EBC5241W, and the 61C, 61D and 61F series. It is also listed under 0545002975 and 0545002480.

Rusty or warped hotplate trim ring?

The trim ring sits between the solid hotplate and the cooktop surface, supporting the plate and sealing the gap so spills don't run underneath. It takes constant heat, so over the years it can rust, warp or discolour badly. A distorted ring lets the hotplate sit crooked or rock under a pan, and boil-overs can get under the cooktop where they bake on and corrode the wiring area. If the ring is pitted, loose or no longer sits flat, replacing it tidies up the cooktop and puts the hotplate back on a level, secure footing.

Part details

• Genuine Electrolux group part 4055561353
• Small hotplate trim ring, 150mm
• Also listed as 0545002975 and 0545002480
• Listed for 226 Chef, Westinghouse, Simpson and Electrolux models

Fitting the trim ring

Turn the cooker off at the isolator and let the hotplates cool fully. The hotplate usually has to be lifted out or the cooktop raised to remove the ring, and the element stays connected to its wiring, so take care not to strain the leads. If any wiring needs to be disconnected, have a licensed electrician do it. Seat the new ring evenly and check the hotplate sits level.

Questions about this part

How do I know if I need the small or large ring?

Measure across the old ring or the hotplate it surrounds and compare it with the 150mm size listed for this small ring. Larger hotplates take a bigger ring, so check the size, and your model number on the compliance plate, before ordering.
