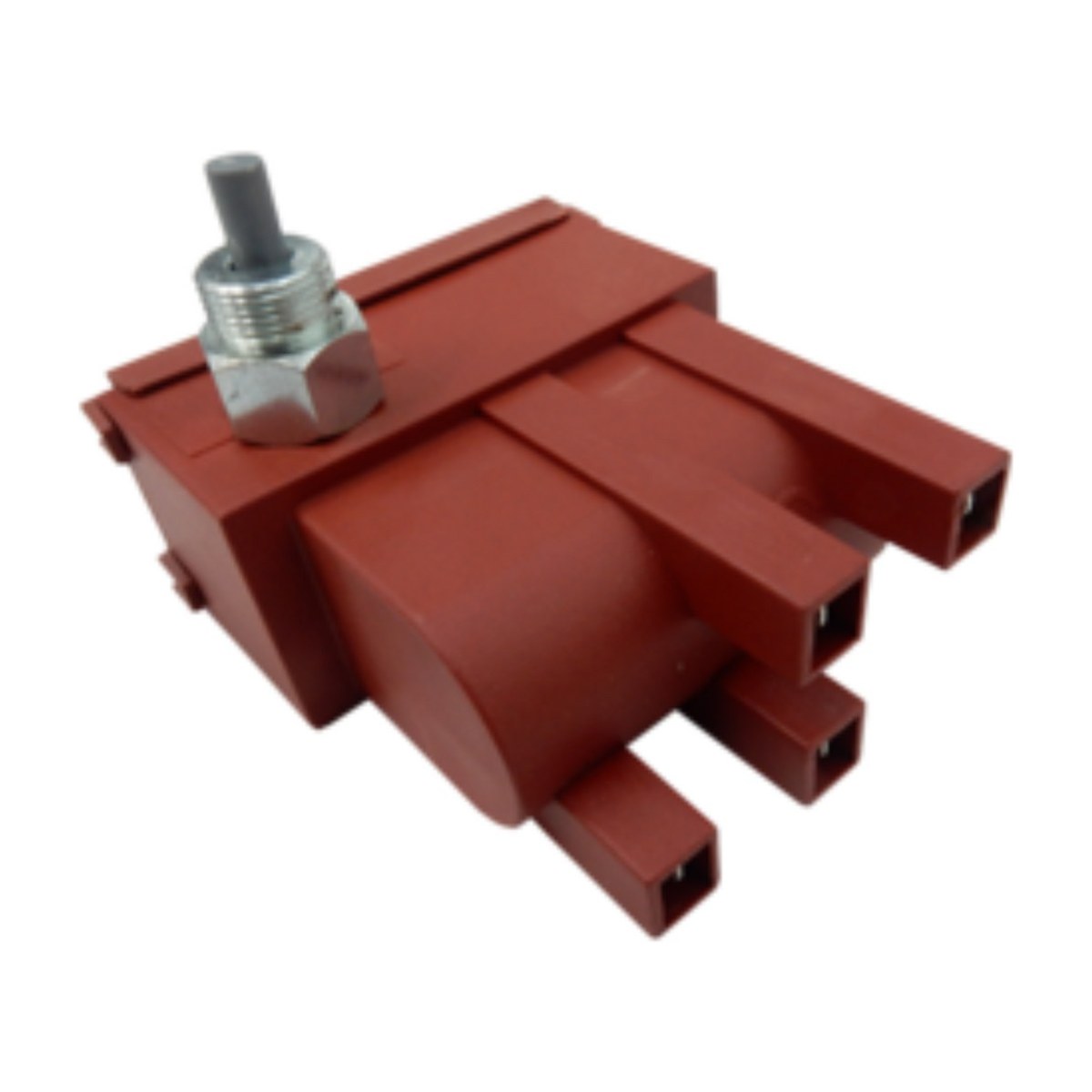

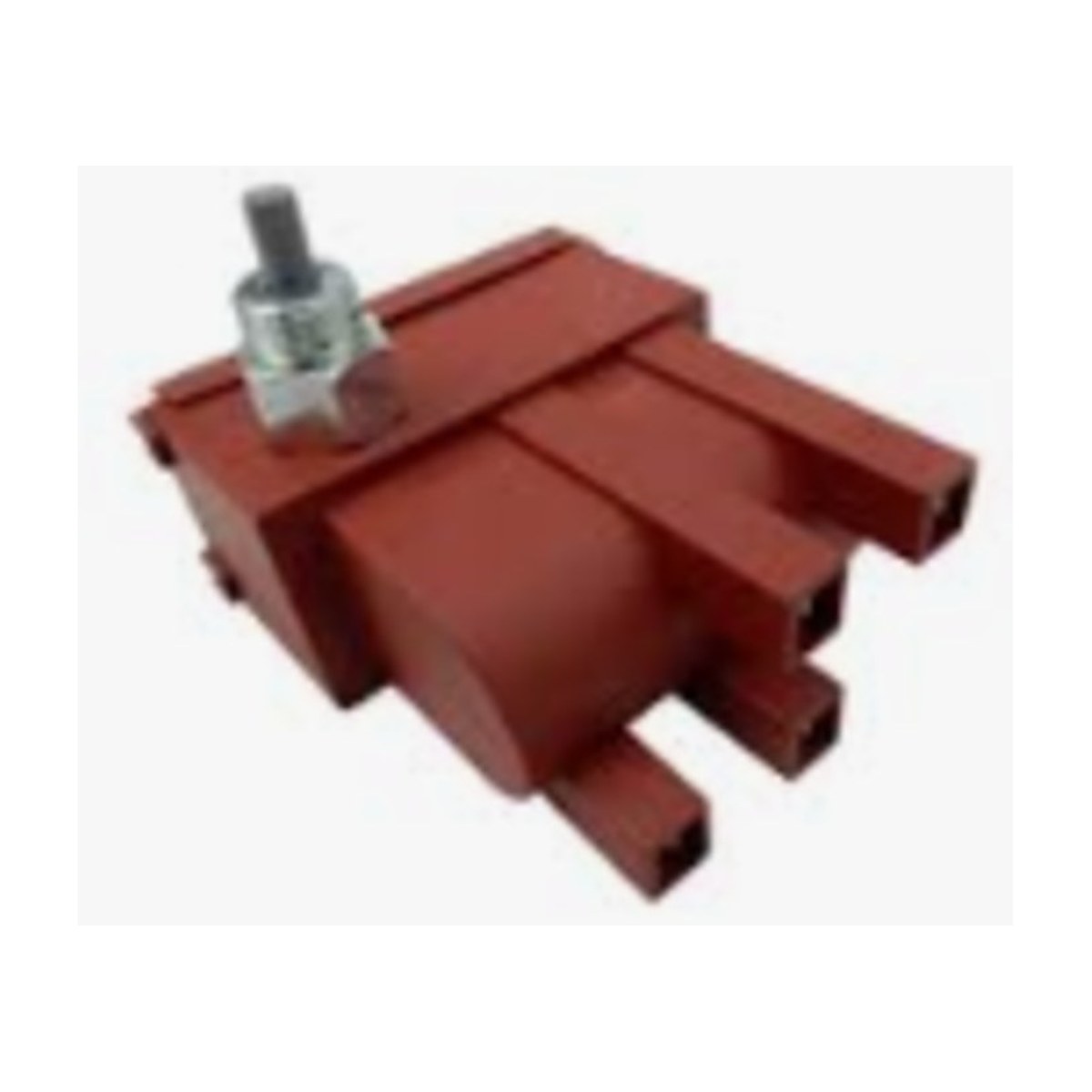

4055538641 Genuine 4 Point 1.5V Push Button Ignition Box for Chef Gas Cooktops CHG642WB CHG642SB GHS602S GHS605W GHS913S 72G311S 72F311W

This genuine Chef ignition box, part 4055538641, is the battery powered spark generator behind the push button on many Chef gas cooktops. It has four outlets, one for each burner electrode, and runs from a 1.5V battery supply. It's listed for CHG642 cooktops, GHS602 to GHS614 and GHS913 to GHS917 models, and the older 72F311 and 72G311. Other numbers for it are A04393401 and 0673001058.

Chef cooktop won't spark

Pressing the ignition button closes a circuit that lets this box turn the battery's 1.5V into rapid high voltage pulses. Each pulse travels down a lead to an electrode beside a burner and jumps to earth as a spark, lighting the gas. If nothing clicks at all with a fresh battery fitted, or the clicking is slow and weak across every burner, the box is the likely culprit. A single burner that won't spark while the others do usually points to that burner's lead or electrode instead.

Part details

• Genuine Electrolux group part 4055538641
• Also numbered A04393401 and 0673001058
• Four spark outlets
• 1.5V battery operated, push button activation
• Listed for Chef CHG642 and GHS series gas cooktops

Before you replace the ignition box

Try a new battery first, as a flat cell causes most weak spark complaints. Turn the gas off at the cooktop isolation valve before lifting the cooktop. In Australia, work inside a gas appliance should be done by a licensed gas fitter. Label each lead before unplugging it so it goes back on the matching outlet, then test every burner.

Questions about this part

Will this fit my Chef cooktop?

It's listed for Chef CHG642WA, CHG642WB, CHG642WC, CHG642SA and CHG642SB, the GHS602 to GHS917 models and the 72F311 and 72G311 cooktops. Check the model on the data label under the cooktop before ordering.
