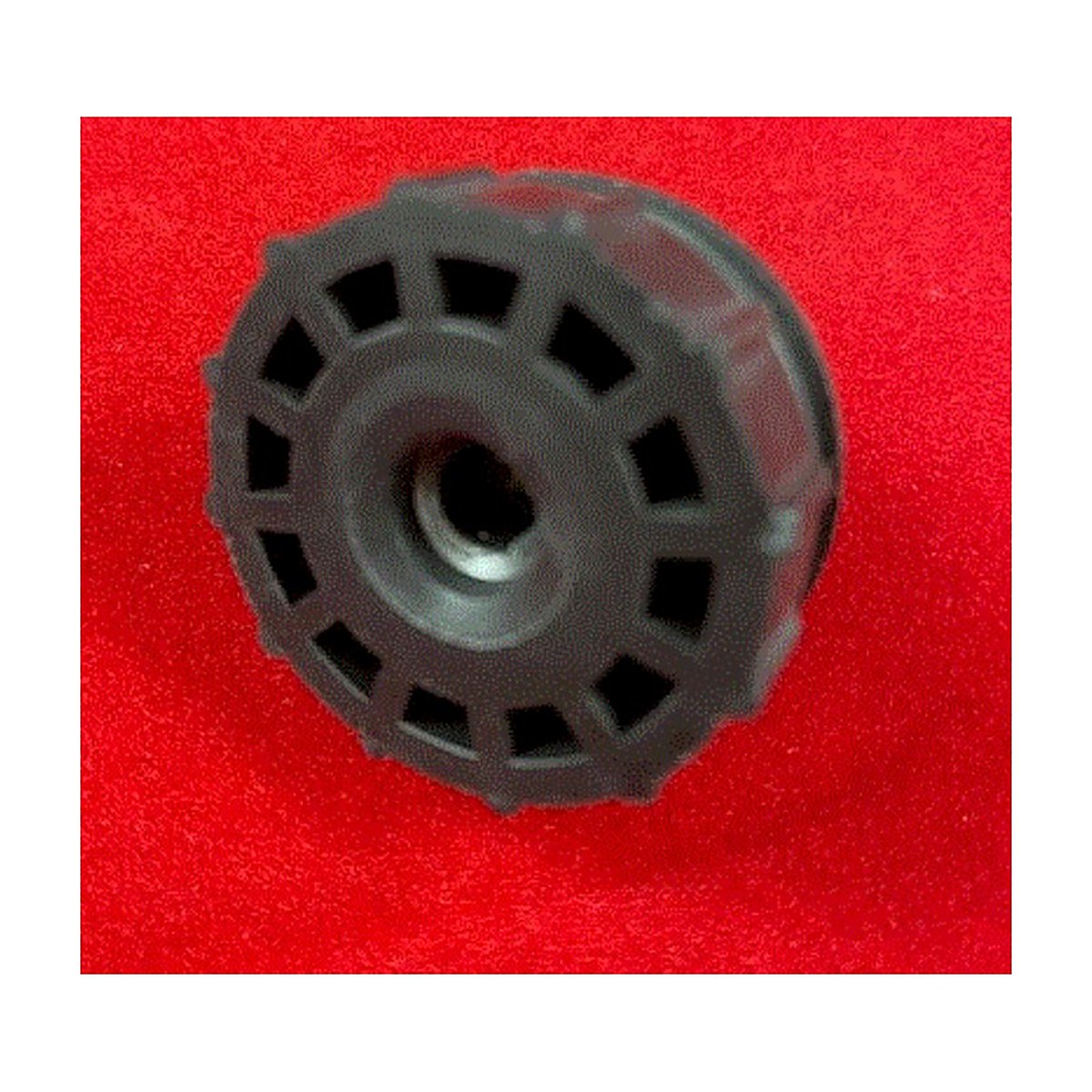

4055387262 Genuine Bearing Pedestal for Electrolux Group Air Conditioners, Indoor Fan Bearing Support Mount

This is the genuine Electrolux bearing pedestal, part number 4055387262, for Electrolux group air conditioners. The pedestal is the mount that locates the fan bearing and keeps the end of the fan shaft in line. A matching bearing sleeve is available as 4055387254. No compatible models are on file yet, so compare it with the part in your unit, or send us the indoor unit's model number through the parts enquiry form.

When an air conditioner fan bearing mount fails

A bearing pedestal holds the fan's support bearing in position inside the indoor unit. If the mount cracks, warps from heat or loses its grip on the bearing, the fan barrel drops slightly and starts to run out of true. Symptoms include a vibrating or humming indoor unit, a fan that scrapes or clicks as it turns, uneven airflow from the outlet, and in bad cases broken fan blades from repeated contact. Because the pedestal and the sleeve wear together, it's worth checking both while the unit is open.

Part details

• Genuine Electrolux part 4055387262
• Bearing pedestal (mount) for the fan bearing
• Matching bearing sleeve listed as 4055387254
• For Electrolux group air conditioners

Fitting the pedestal

Turn the air conditioner off and isolate the power. Take photos as you remove covers so everything goes back the same way. Seat the new pedestal fully into its location so the bearing sits square to the fan shaft. Before closing up, spin the fan by hand to make sure it turns freely without touching the housing. A licensed air conditioning technician can do this for you if you'd prefer.

Questions about this part

Do I need both the pedestal and the sleeve?

Not always. Check whether the pedestal is cracked or loose and whether the sleeve is worn, then replace whichever is damaged. If you're unsure, doing both at once, with 4055387262 for the pedestal and 4055387254 for the sleeve, saves taking the unit apart twice.
