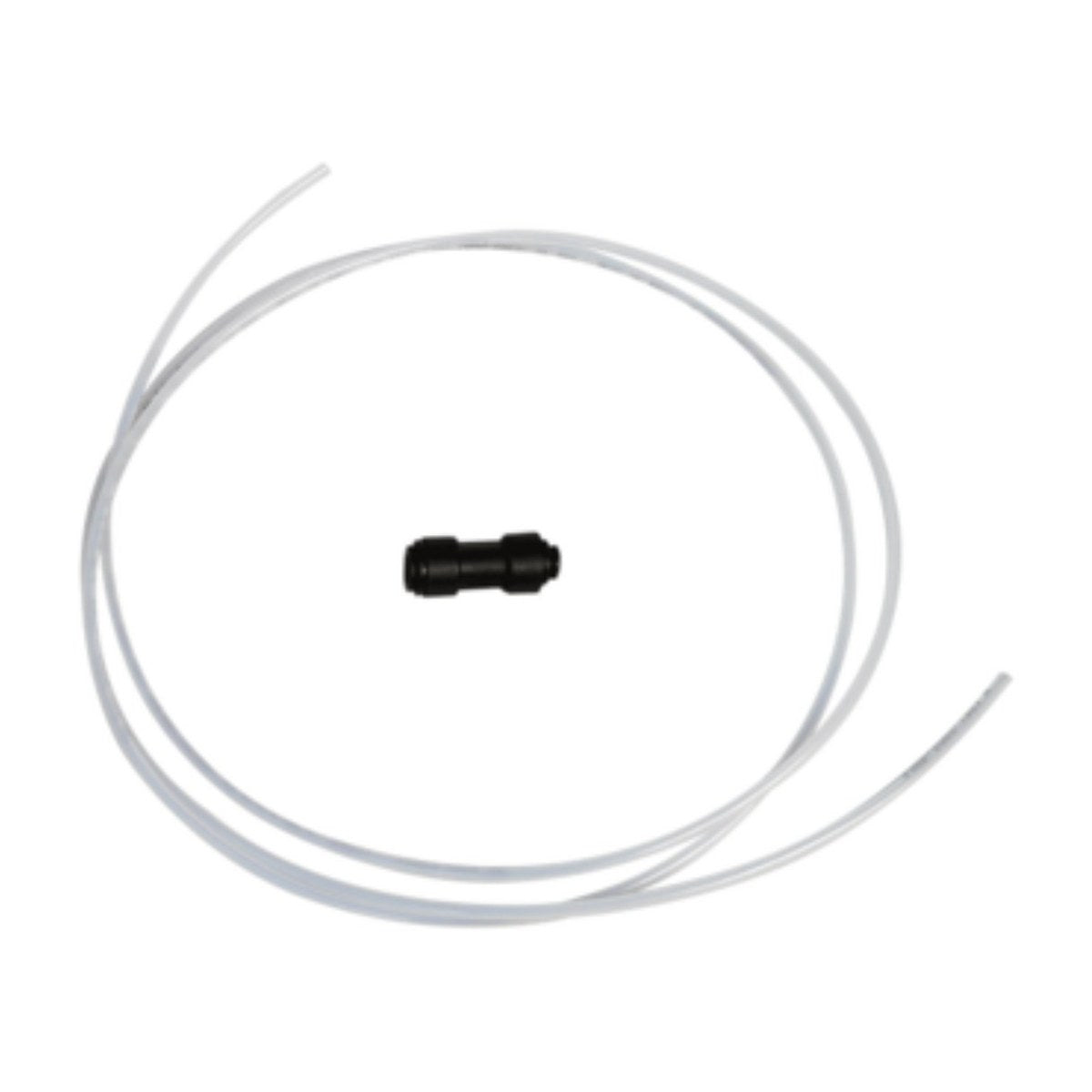

4055191060 Genuine Ice and Water Tube Replacement Kit for Electrolux, Westinghouse Fridges WSE6070SA WSE6070WB WSE6970SA RS623S RS643T RS645V RS825S

When the water line feeding the dispenser or ice maker splits or kinks, this genuine tube kit, part 4055191060, is the fix. It suits Electrolux and Westinghouse fridges with ice and water, including the WSE6070SA, WSE6070WB and WSE6970SA, and the RS623S, RS643T, RS645V and RS825S. Using the genuine kit means the tubing matches what the fridge was built with.

Water leaking from your fridge or no water at the dispenser?

Inside the cabinet and door, plastic tubing carries mains water from the inlet valve to the ice maker and the dispenser. Age, heat from the compressor area and the door opening thousands of times can harden or crack this tubing. A split line often shows up as water pooling under the fridge, ice forming where it should not, a dispenser that dribbles or stops, or an ice maker that never fills. Before replacing the tubes, check that the house tap is on and the water filter is not blocked, as both cause similar symptoms.

Part details

• Genuine Electrolux group part 4055191060
• Replacement tubing kit for the ice and water system
• Listed for Westinghouse WSE6070SA, WSE6070WB and WSE6970SA
• Also listed for RS623S, RS643T, RS645V and RS825S models

Replacing the water tubes

Turn off the water supply tap behind the fridge, then unplug it. Lay towels down, as the old lines will still hold some water. Follow the route of the old tube and replace it section by section. If tubing needs trimming, cut it square and push each end fully into its fitting. Turn the water back on, run a few glasses through the dispenser to clear air, and check every joint for drips over the next day.

Questions about this part

Will this kit fix a fridge that makes no ice?

Only if the cause is a damaged or blocked water line. An ice maker that stays empty can also come from a closed tap, a blocked filter, a faulty inlet valve or a frozen fill tube, so check those before ordering.
