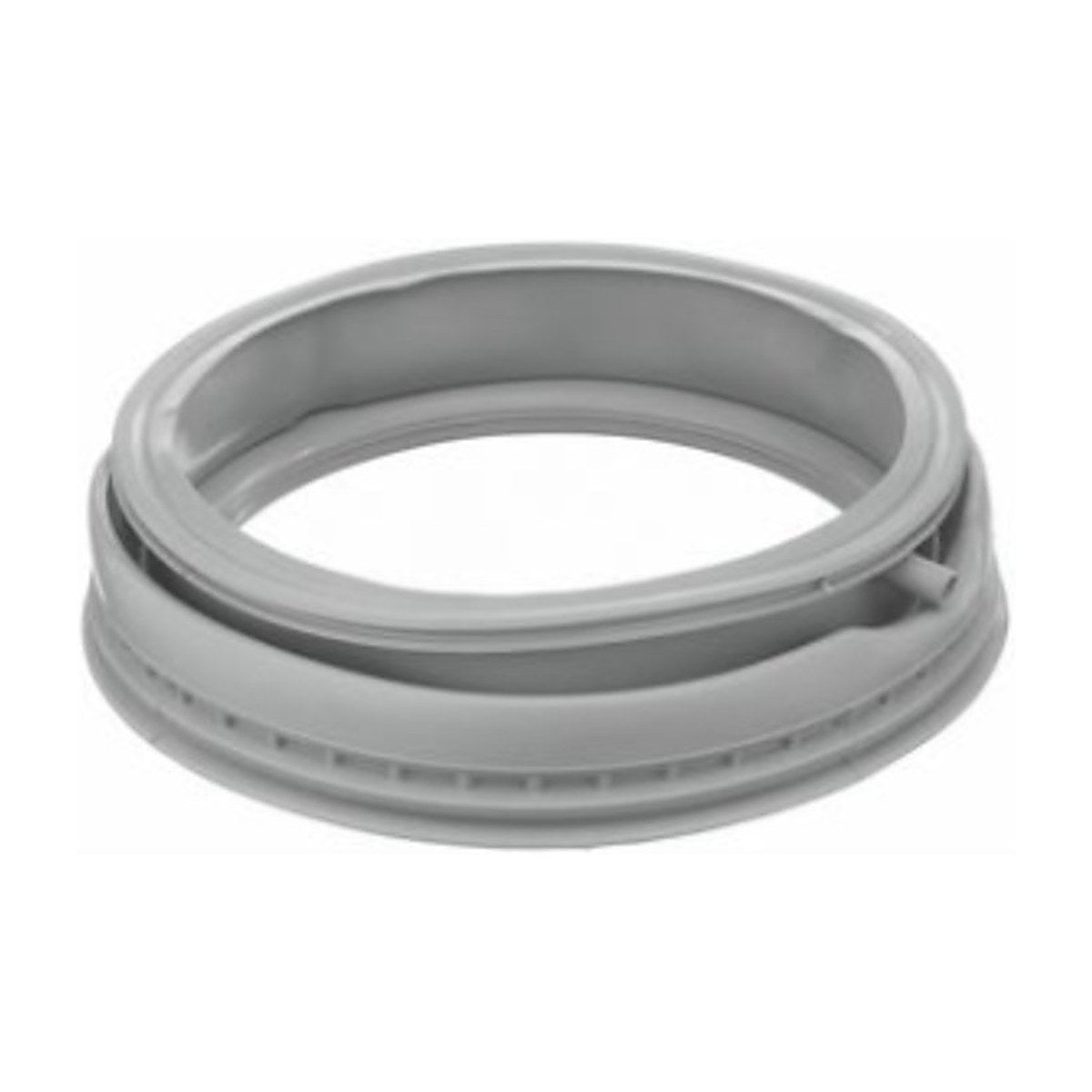

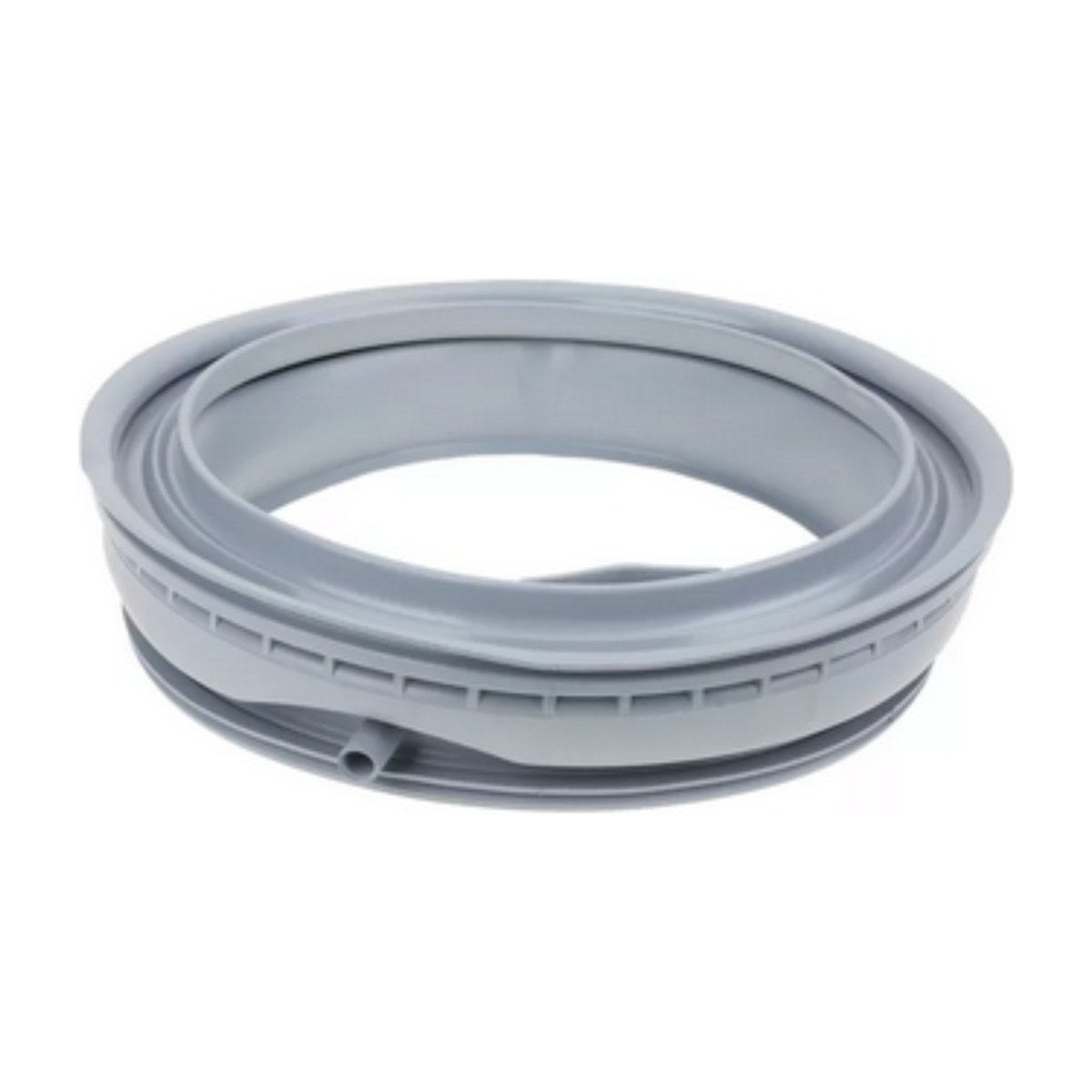

361127 Genuine Door Seal Bellows for Bosch Front Load Washing Machines WAE24463AU WAE22464AU WAE20262AU WFO2460AU WFR2830AU WAN22120AU

This genuine Bosch door seal, part 361127 (often written 00361127), is the rubber bellows that seals the door opening on many Bosch front load washing machines. It cross references to 00706276, 00435513 and 11012879. Models on file include the WAE20262AU, the WAE22462AU and WAE22464AU, the WAE24463AU, plus WFO2460AU, WFR2830AU and WFR3230AU machines, the WFX2830AU and the WAN22120AU.

Bosch washer leaking at the door or smelling musty?

This bellows links the cabinet front to the outer tub and gives the door glass a surface to seal against. It flexes with every spin and lives in damp, detergent-laden conditions, so it wears over time. Look for water dripping from under the door, tears in the folds, rubber that has hardened or gone sticky, and black mould that will not clean off. Coins, underwire and hairpins caught in the folds are a frequent cause of holes.

Part details

• Genuine Bosch part 361127, also written 00361127
• Cross references 00706276, 00435513 and 11012879
• Door seal bellows for front load washers
• Listed for Bosch WAE, WFO, WFR, WFX and WAN models

Changing the door seal

Switch off and unplug the machine, then close both taps. Release the front clamp ring and fold the seal back, then remove the front panel to reach the rear clamp on the tub. Line up the new seal's alignment marks, refit both clamps evenly, and run a short wash to check for leaks. It is a fiddly job, so allow plenty of time.

Questions about this part

My model has a suffix like /29 or /35. Does that matter?

Yes, the suffix identifies the production version. This seal is listed against specific versions, such as WAE24463AU/24 and WAE22464AU/35, so check the full model number including the suffix, often found on a label around the door opening.
