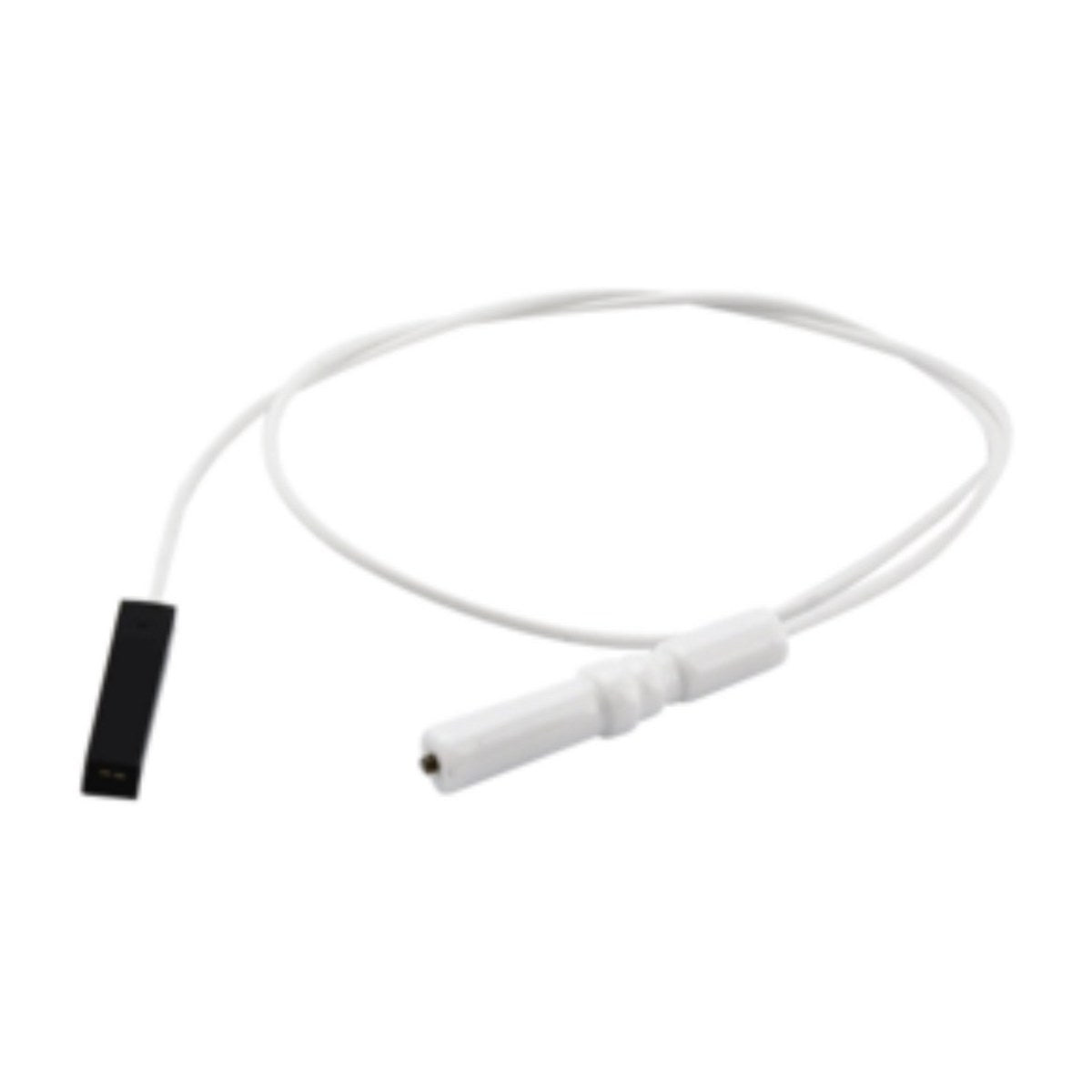

3055230019 Genuine Wok Burner Spark Electrode 500mm Lead for Westinghouse Cooktops WHG642SA WHG952SA WHG956SA WFE914SA WFEP915SB GHR95SR

Part 3055230019 is the genuine spark electrode, or spark plug, for the wok burner on Westinghouse gas cooktops and freestanding cookers. It has a 500mm ignition lead and is also listed as 305523001, 357040608 and 3570406086. Models on file include the WHG641SA through to WHG646WA, the WHG756SA, the WHG952SA and WHG956SA, the WFE912SA and WFE914SA cookers, the WFEP915SB and the GHR95SR.

Westinghouse wok burner clicking but not lighting

When you push and turn the knob, the ignition module sends a high voltage pulse down the lead to this electrode, which sparks across to the burner and lights the gas. If the ceramic cracks, the tip burns away or the lead breaks down, the spark weakens or jumps somewhere else. You will hear clicking but the wok burner won't catch, or there is no spark at that burner while the others work. Spills and cleaning water are common causes, so dry the burner well and check the cap sits correctly before blaming the electrode.

Part details

• Genuine Westinghouse wok burner spark electrode 3055230019
• 500mm lead length
• Alternative numbers 305523001, 357040608 and 3570406086
• Listed for WHG series cooktops and WFE series cookers

Replacing the wok burner electrode

Turn off the gas and switch the cooktop off at the wall before starting. As the electrode sits in the gas burner assembly, this work should be done by a licensed gas fitter. The lead runs under the cooktop to the ignition module, so note its path and the module terminal before removing the old one. Keep the new lead away from hot parts and sharp edges, then test the spark on every burner.

Questions about this part

Will this electrode fit the smaller burners?

This is the wok burner version with a 500mm lead. Other burners often use a different lead length, so check which burner you are fixing and compare the old part number or lead length before ordering.
