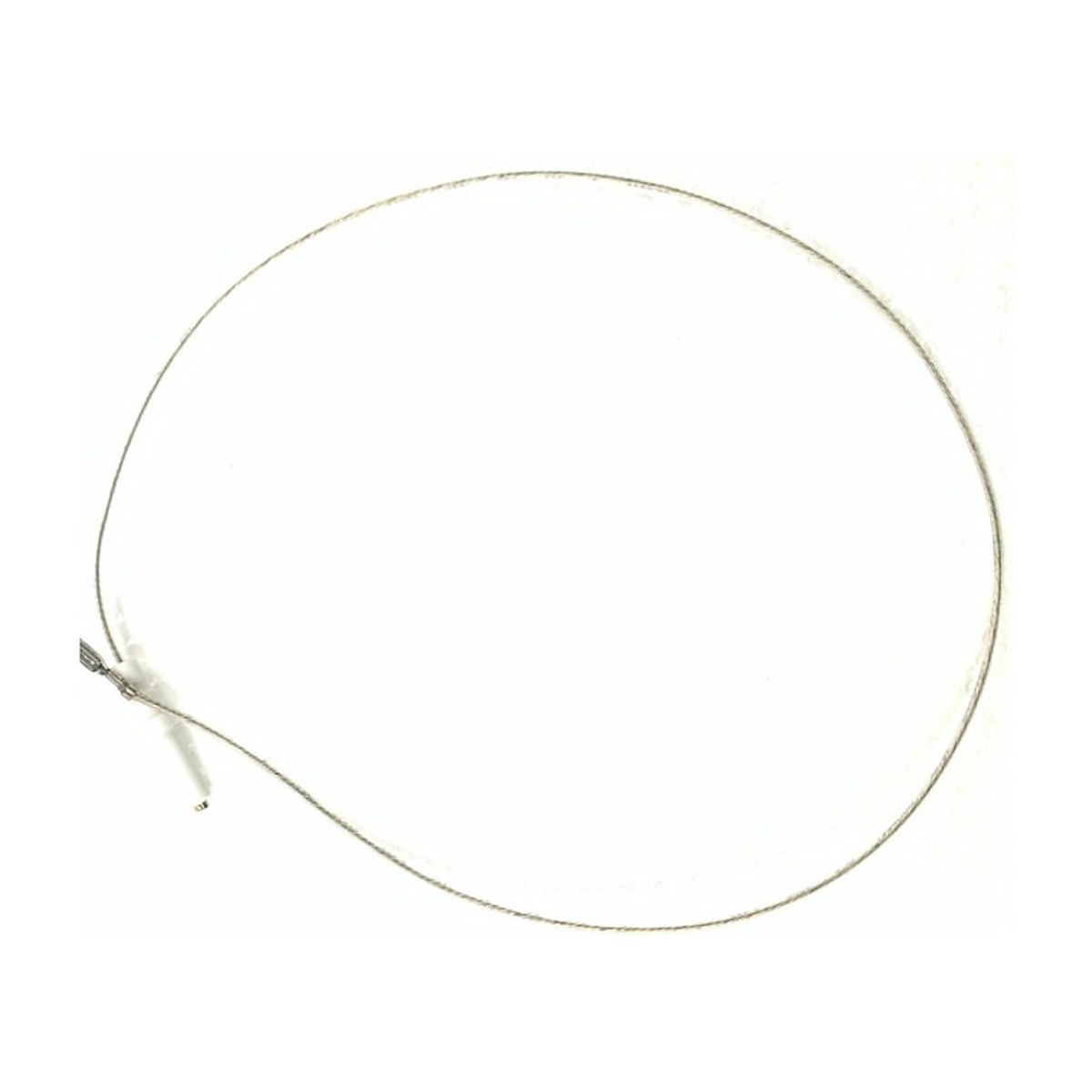

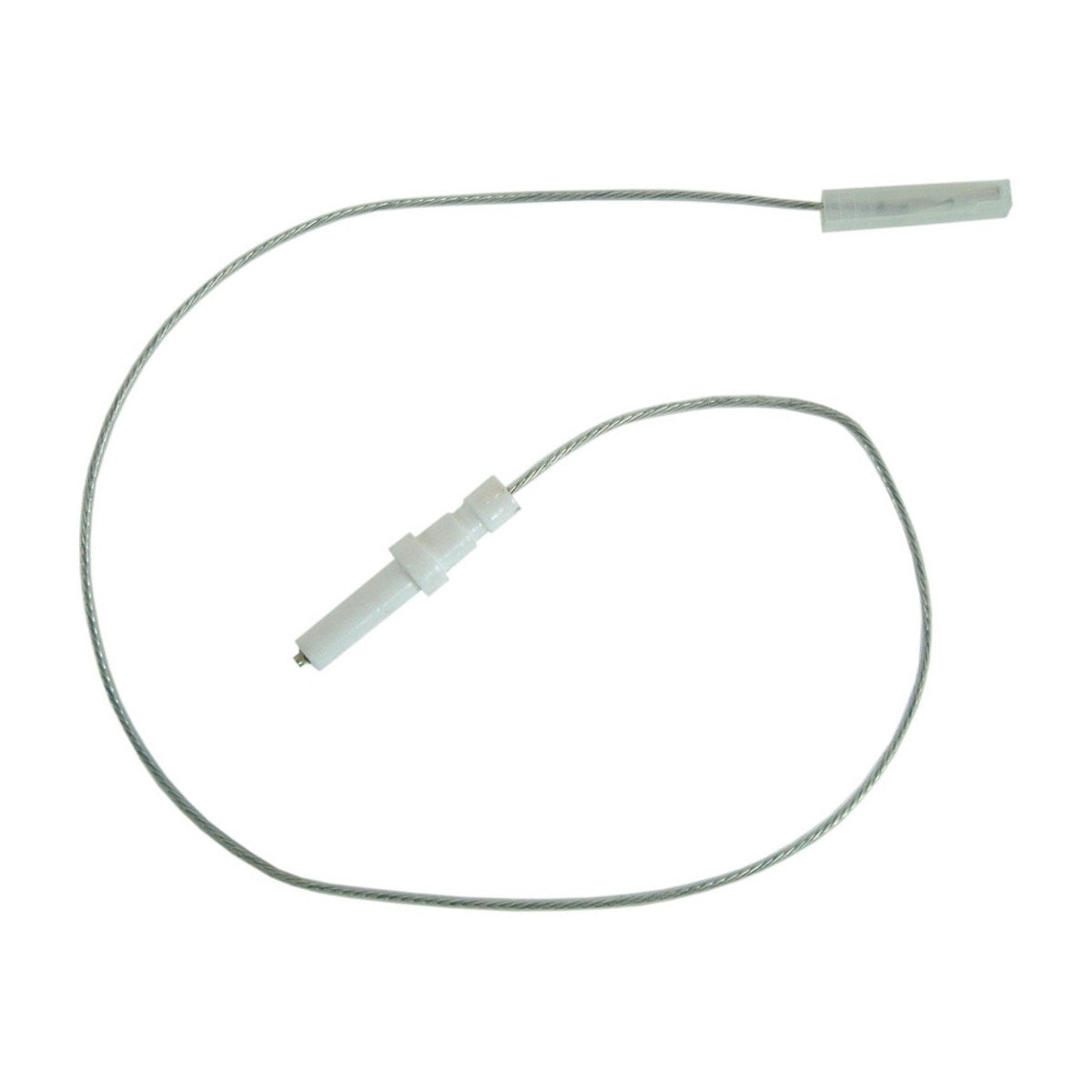

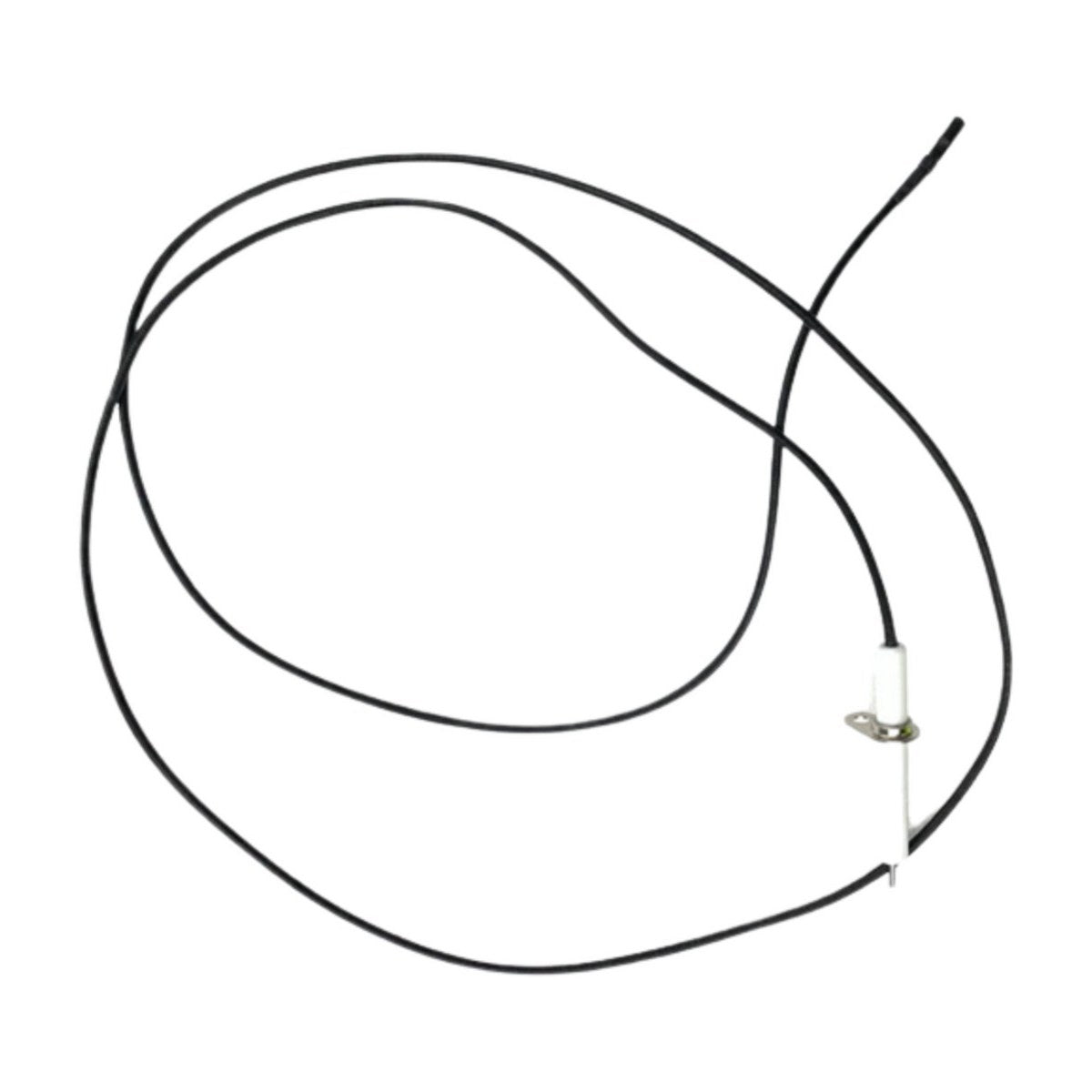

30402400004 Genuine Ignition Pin with 500mm Lead for Technika, Euromaid Gas Cooktops TGC9GLX H640STXPRO TB64GWSS-3 EC95GLS GG54GW
- Original part no.
- 30402400004
- Part grade
- Genuine
- Appliance
- Cooktop Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
One burner on your Technika or Euromaid cooktop won't light from the spark? This genuine ignition pin, part 30402400004, comes with a 500mm lead and is described for the semi rapid burner position. Over 90 gas cooktops and cookers are on file, including the Technika TGC9GLX, TB64GWSS-3 and H640STXPRO, and the Euromaid EC95GLS and GG54GW. It's also known as 30402400056 and 32300007.
Signs a gas burner ignition pin has failed
The ignition pin, sometimes called a spark plug or candle, sits beside the burner and throws a spark across to the burner cap when you push and turn the knob. A cracked ceramic body, a burnt or bent tip, or a damaged lead lets the spark leak away to earth somewhere else, so you hear clicking but the gas doesn't catch. Other signs are a weak spark on one burner while the rest work, or no click at all from that position. Grease and spills can cause similar trouble, so clean and dry the area before you order.
Part details
- Genuine part 30402400004
- Also listed as 30402400056 and 32300007
- Ignition pin with a 500mm lead
- Described for the semi rapid burner
- Over 90 Technika and Euromaid gas cooktop and cooker models on file
| Lead length | 500mm |
|---|
Fitting a new ignition pin
Turn off the gas supply and switch the appliance off at the wall before you begin. The lead runs from the pin back to the spark generator, so note its route and clip points before pulling it out. Keep the new lead clear of hot surfaces and sharp edges. Gas appliance repairs in Australia should be carried out by a licensed gas fitter, who can also test every burner once it's done.
Questions about this part
Is this the same part as 30402400056 or 32300007?
Yes. Both numbers are linked to 30402400004 in our parts records, so if either is printed on your old pin or shows in your manual, this is the one. Check the lead length too, as this pin has a 500mm lead.
Specifications
| Brand | Technika |
|---|---|
| Original part number | 30402400004 |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 30402400004 |
| Appliance | Cooktop Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
