30402400003 Genuine Ignition Pin with 350mm Lead for Technika Gas Cooktops H640STXPRO H950STXPRO TGC9GLWSS TB64GWSS-3 VH64FSS RV640STXE-2
- Original part no.
- 30402400003
- Part grade
- Genuine
- Appliance
- Cooktop Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

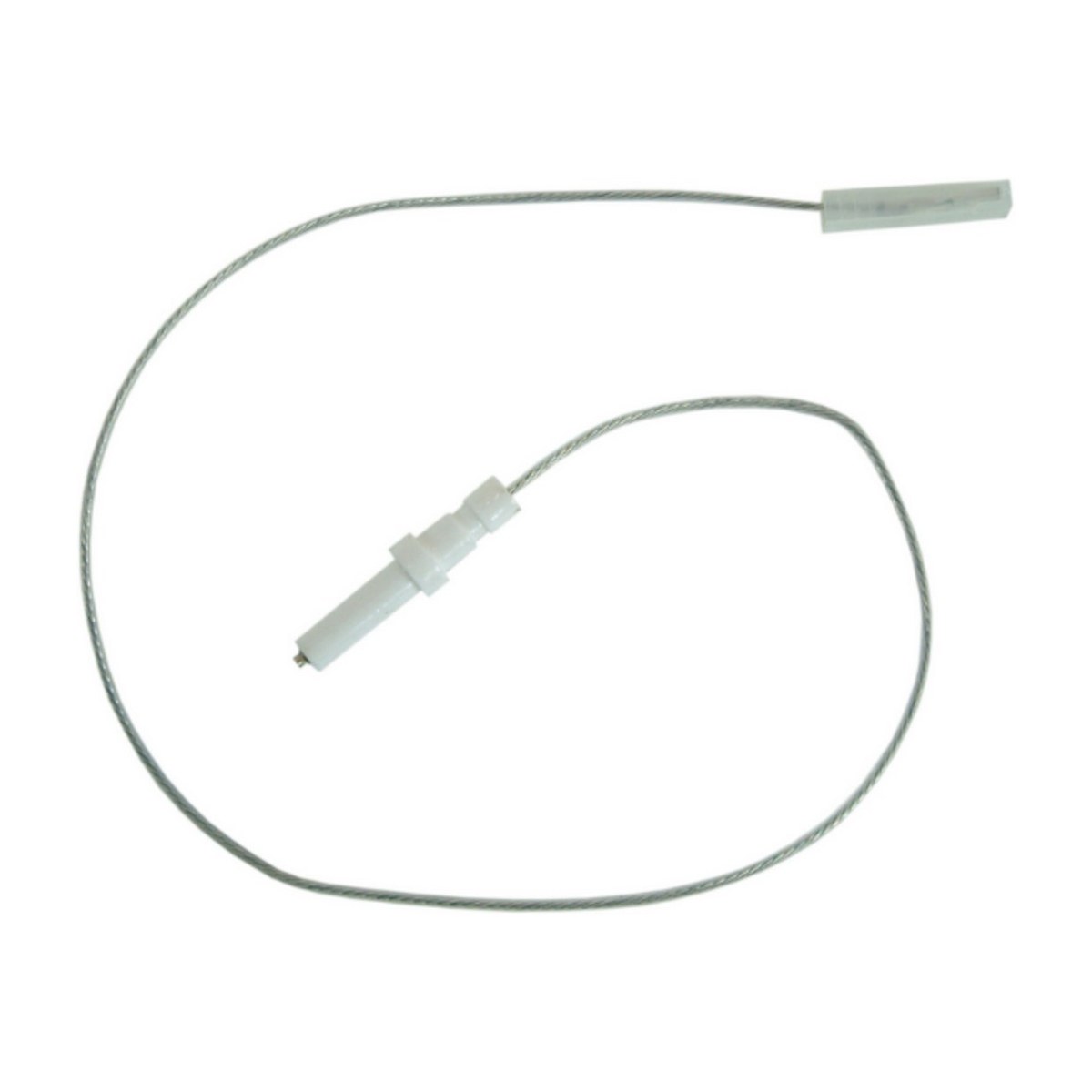

Technika gas cooktops and cookers that won't spark on one burner can be fixed with this genuine ignition pin, part 30402400003, supplied with a 350mm lead. It also goes by 32300006. Over 60 models are on file, spanning the H640, H750 and H950 cooktops, TGC gas cooktops, TB cookers and the RV and VH ranges. Examples are the H640STXPRO and H950STBGPRO, the TGC9GLWSS, the TB64GWSS-3 and the VH64FSS.
Technika burner not lighting or not clicking?
When you push and turn a burner knob, the spark module sends a high voltage pulse down the lead to the ignition pin, which sparks across to the burner and lights the gas. The ceramic body can crack, the tip can become coated in grease or burnt food, and the lead can break or short against the cooktop frame. The result is a burner that clicks without lighting, no click at all on one burner, or sparks jumping to the wrong place. Clean the tip and dry the burner before deciding the pin is faulty.
Part details
- Genuine Technika part 30402400003
- Also known as 32300006
- Ignition pin with 350mm lead
- Listed for over 60 Technika gas cooktop and cooker models
| Lead length | 350mm |
|---|
Fitting the ignition pin
Isolate the electricity and turn off the gas before starting. Work on gas appliances should be done by a licensed gas fitter. The knobs, burners and cooktop top come off to reach the pin. Route the new lead the same way as the old one, away from hot surfaces and sharp edges, and connect it to the same spark module terminal. Test every burner for a strong spark and clean ignition.
Questions about this part
How do I know the lead length is right?
This pin comes with a 350mm lead. Measure the old lead from the pin to the spark module plug. A lead that's too short won't reach, and an overly long one can sit against hot or sharp surfaces.
Specifications
| Original part number | 30402400003 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 30402400003 |
| Appliance | Cooktop Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
