30101200109 Genuine Coil Hotplate Element 150mm for Euromaid Stoves EFS54RC-DRW FRR54W GG54RRW R54RW TFS54RC-DRW

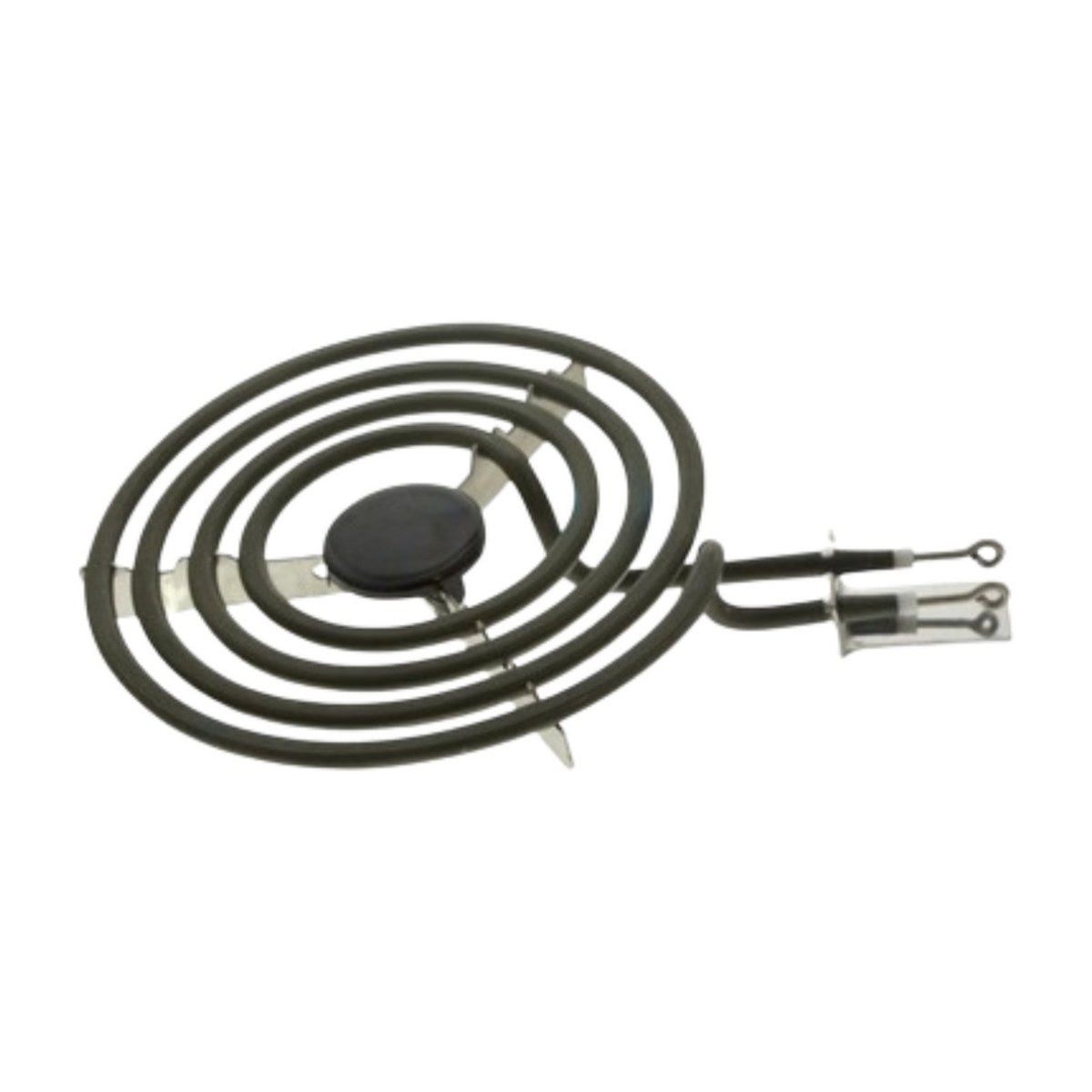

This genuine 150mm coil element, part 30101200109, is a radiant coil hotplate used on Euromaid stoves. It also carries the numbers 33303057 and 33303118. Models on file are the EFS54RC-DRW and TFS54RC-DRW, the FRR54W, the GG54RRW and the R54RW. Measure the old coil across its outer edge before ordering, since coil stoves often mix 150mm and larger elements.

Euromaid coil element not heating?

A coil element heats when current flows through the resistance wire sealed inside its metal sheath. With age, or after a pot boils over, the sheath can split, blister or break, and the coil then stops heating, heats only in patches, sparks or trips the safety switch. Loose or burnt terminals at the back of the coil cause similar symptoms, so inspect the connection end as well. If your stove uses plug-in coils, swap positions with another coil of the same size to see whether the fault follows the element.

Part details

• Genuine Euromaid part 30101200109
• Also known as 33303057 and 33303118
• 150mm coil hotplate element
• Listed for the EFS54RC-DRW and TFS54RC-DRW, the FRR54W, the GG54RRW and the R54RW

Fitting the coil element

Stoves are often hard-wired, so isolate the circuit at the switchboard and use a licensed electrician where the job involves fixed wiring. Lift the old coil and note how it connects, whether by plug-in or screw terminals. Clean any corrosion from the connection point, fit the new coil so it sits level in its trim ring or drip bowl, then test it on low and high.

Questions about this part

Is this the small or the large coil?

This listing is the 150mm coil. Measure your old coil across the outside of the spiral to check the size before ordering, as larger coils on the same stove use a different part number.
