2425118243 Genuine Compressor Start Relay with Overload for Westinghouse, Kelvinator Fridges WTB5400WA-R WTB4600SA-LH WTB5404SA-RH KTM4602WA
- Original part no.
- 2425118243
- Part grade
- Genuine
- Appliance
- Fridge Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

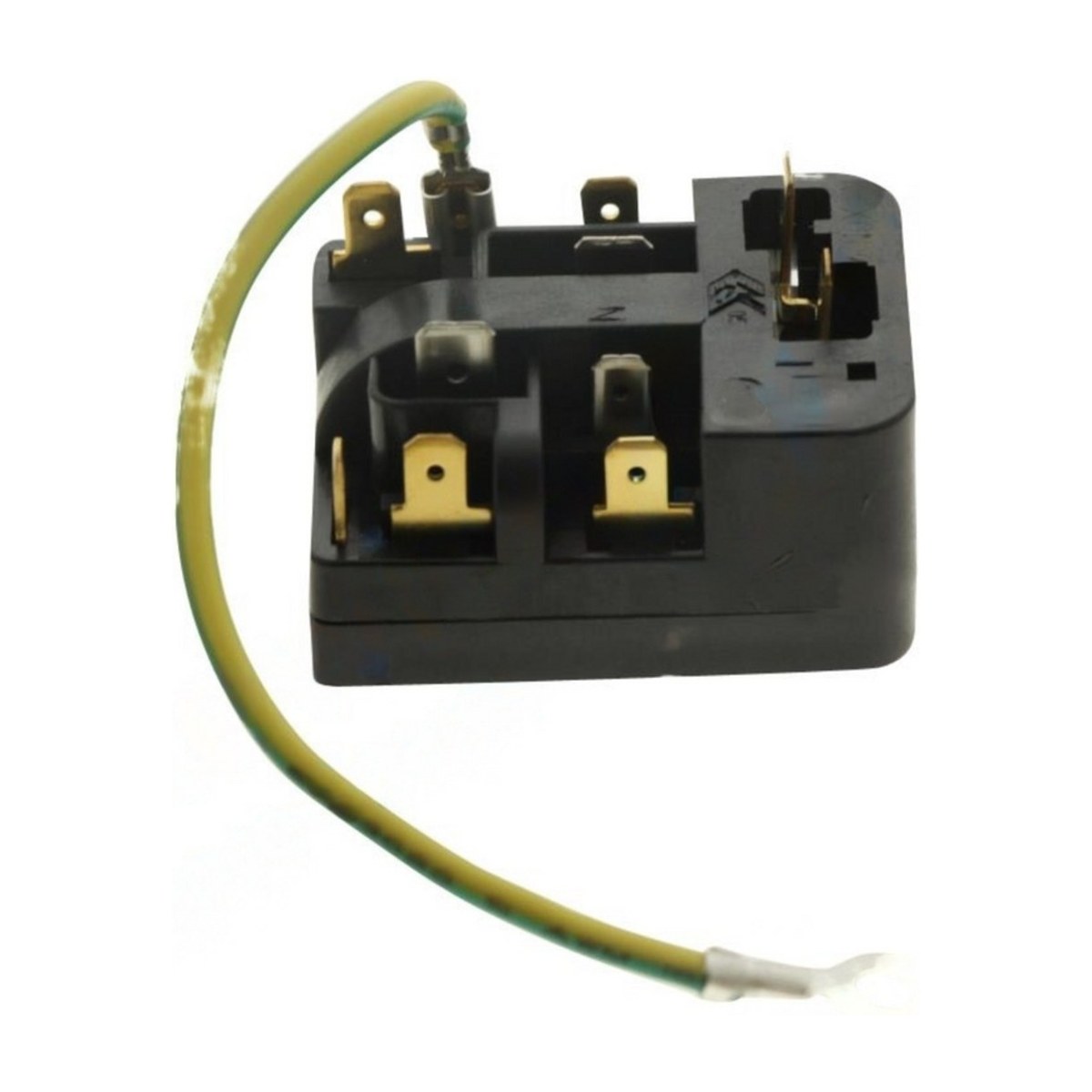

Part 2425118243 is a genuine compressor starting device for Westinghouse and Kelvinator fridges, combining a PTC start relay with a motor protector. It also appears as 242511824 and is referenced as TH1116Y. Models on file are the Westinghouse WTB4600, WTB4604, WTB5400 and WTB5404 in left and right hand versions, and the Kelvinator KTM4602WA and KTM5402AA.
Fridge compressor clicking but not starting?
The start relay plugs onto the side of the compressor. At start up the PTC device lets extra current flow through the start winding to get the motor turning, then cuts it back as it warms. The motor protector guards against overheating and excess current by breaking the circuit. When these parts fail, the compressor may click every few minutes without running, hum and then click off, or stay silent while the fridge light and fans still work, and the cabinet slowly warms up. A seized or shorted compressor causes similar clicking, so it is worth having the fault confirmed.
Part details
- Genuine Electrolux group part 2425118243
- PTC start relay and motor protector combined
- Also referenced as 242511824 and TH1116Y
- 15 Westinghouse and Kelvinator models on file
Changing the start relay
Unplug the fridge and pull it out to reach the compressor at the back. Take a photo of the wiring and how the old relay sits on the compressor pins, then pull it straight off without bending the pins. Push the new device on squarely, reconnect the wires as they were and refit any cover. Plug in and listen for the compressor to start and keep running. Use a qualified fridge technician if you are not confident with the electrics.
Questions about this part
How can I tell if it is the relay or the compressor?
A technician can test the relay and the compressor windings with a multimeter. A relay that rattles when shaken, or shows burn marks, is a strong hint. If a new relay still leaves the compressor clicking, the compressor itself may be at fault.
Specifications
| Brand | Electrolux |
|---|---|
| Original part number | 2425118243 |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 2425118243 |
| Appliance | Fridge Parts |
| Shipping weight | 1.5 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
