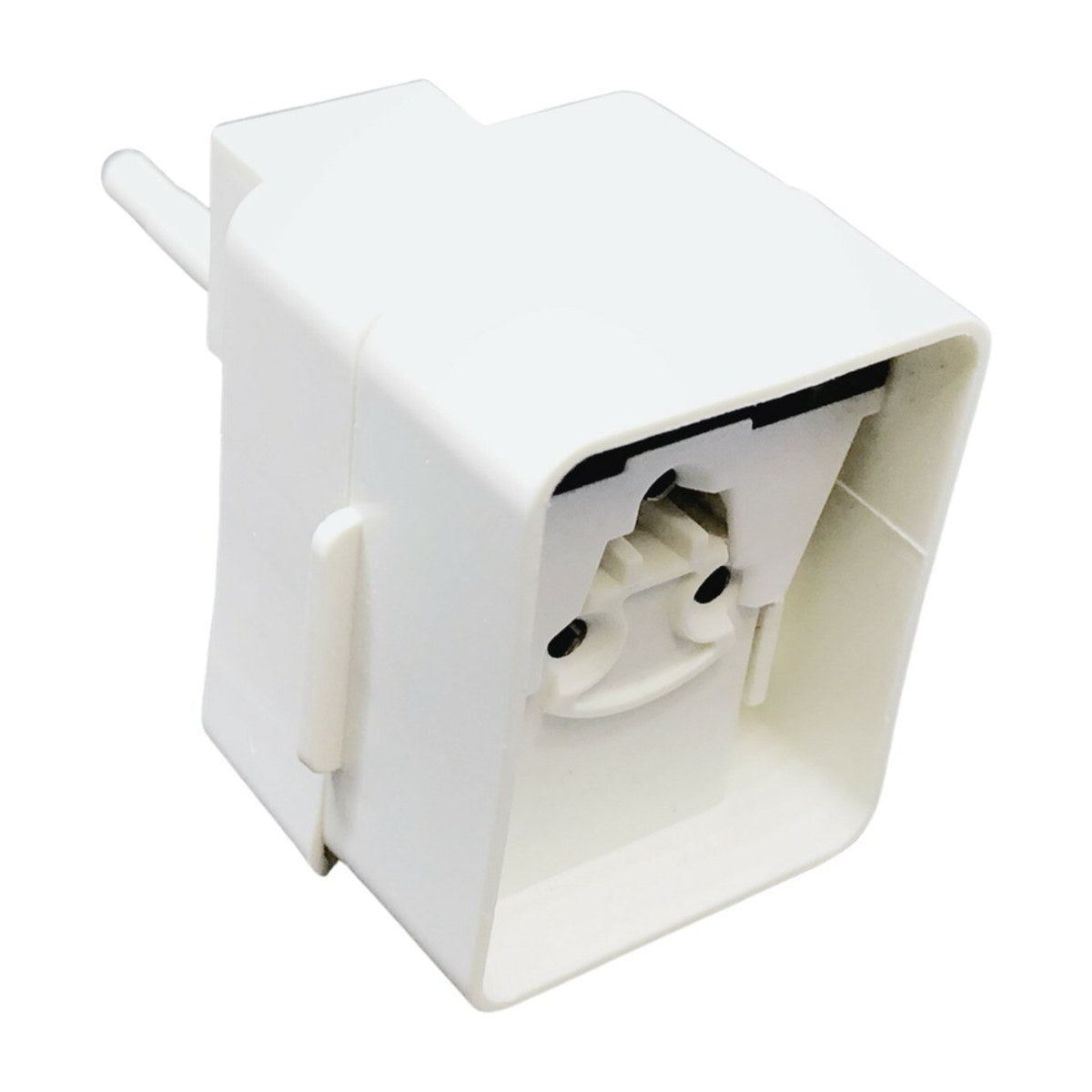

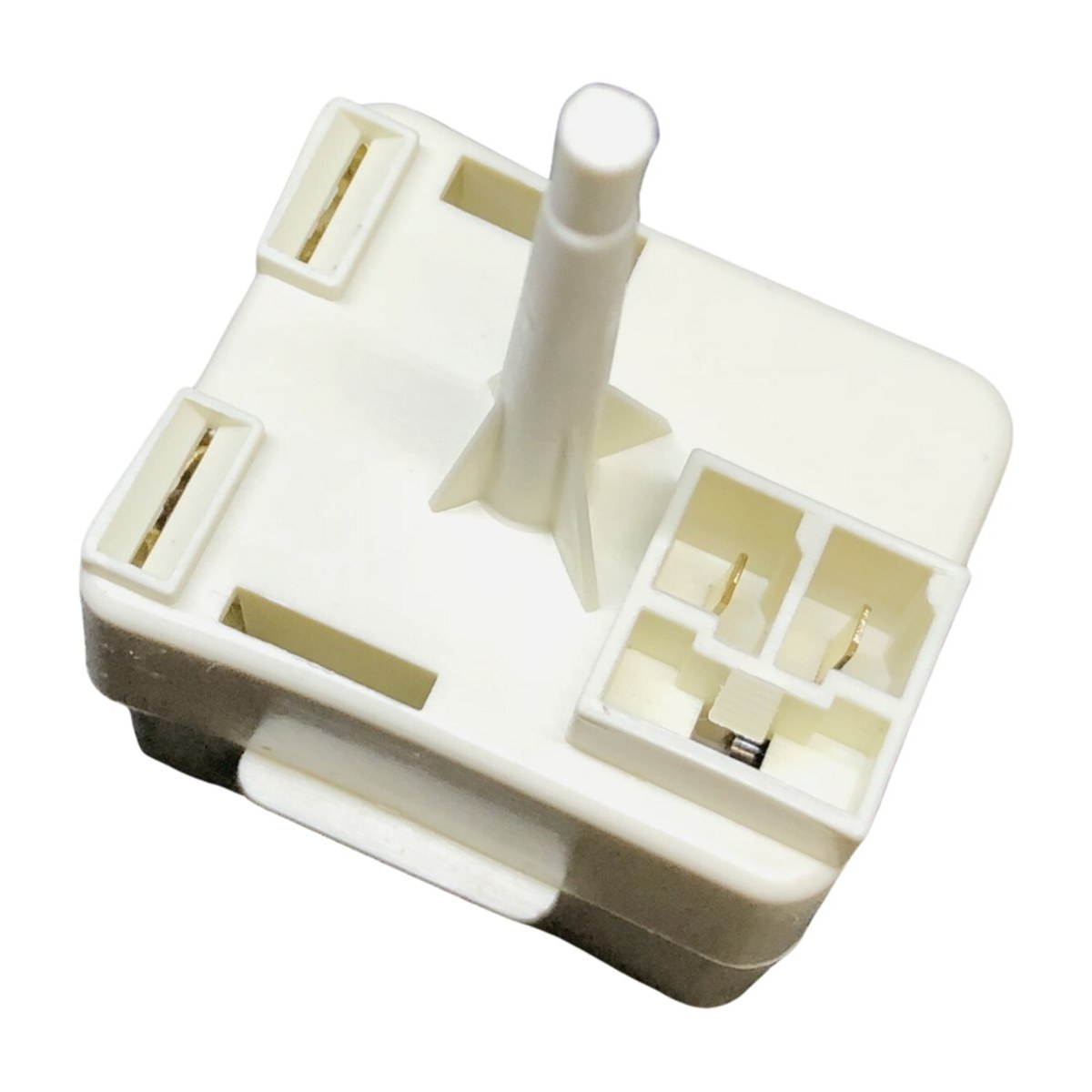

2417077290 Genuine Fridge Compressor PTC Starter Relay for Westinghouse, Kelvinator Fridges WSE6070SF WSE6100SF WSE6970SF KSM6100WF
- Original part no.
- 2417077290
- Part grade
- Genuine
- Appliance
- Fridge Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
Fridge warm, and the compressor clicking on and off? Part 2417077290 is the genuine PTC starter relay that gets the compressor running on a group of Westinghouse and Kelvinator fridges. It's listed for the WSE6070SF and WSE6070WF, the WSE6100SF, WSE6100WF and WSE6100PF, the WSE6970SF and WSE6970WF, and the Kelvinator KSM6100WF and KSM6100PF. It also appears as 241707729.
Fridge not cooling? Check the starter relay
The PTC relay plugs onto the side of the compressor and gives the start winding a short boost of current each time the motor kicks in. Inside is a ceramic element that heats up and cuts off the start circuit once the compressor is running. When the relay fails, the compressor may hum and click off every few minutes, refuse to start at all, or trip the overload. The cabinet slowly warms while the lights and fans keep working. A rattle when you shake the old relay usually means the ceramic has cracked.
Part details
- Genuine Electrolux group part 2417077290
- Also listed as 241707729
- PTC starter relay for the fridge compressor
- Listed for Westinghouse WSE6070, WSE6100 and WSE6970 and Kelvinator KSM6100 models
- WCM7000WC needs harness 1458703 to connect this relay
Fitting a compressor starter relay
Unplug the fridge before touching anything near the compressor. Pull the cover off the compressor terminals, photograph the wiring and ease the old relay straight off the pins. Push the new relay fully home, reconnect and refit the cover. Compressor electrical work is best left to a qualified refrigeration or appliance technician. If the fridge still won't start, the compressor or overload may be faulty.
Questions about this part
Will this relay fit my WCM7000WC?
It can be used, but this relay differs from the one fitted to that model at the factory, so you'll also need harness 1458703 to connect it. Order both together if you're repairing a WCM7000WC.
Specifications
| Original part number | 2417077290 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 2417077290 |
| Appliance | Fridge Parts |
| Shipping weight | 1.5 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
