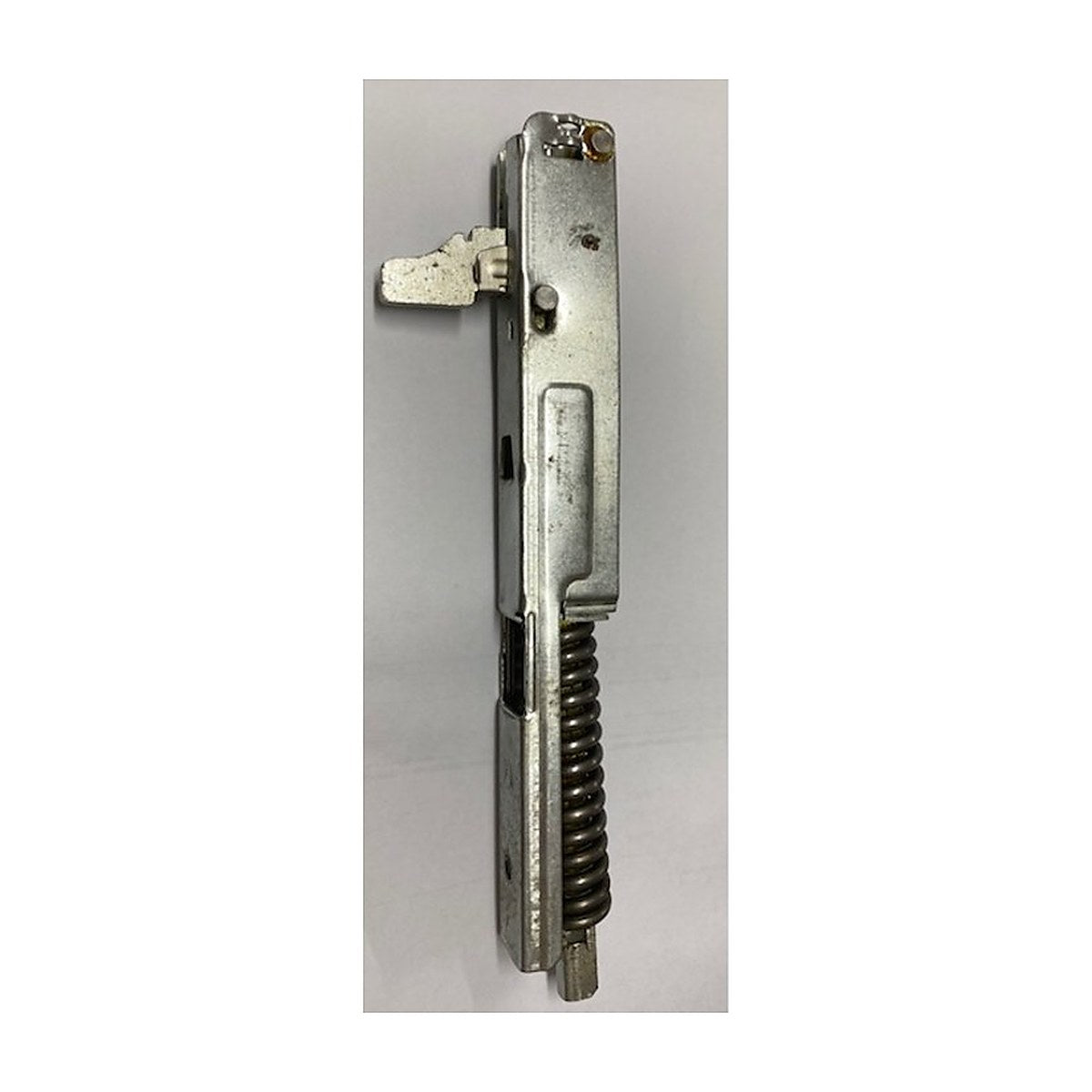

2199071 Genuine Oven Door Hinge for Ariston 900mm Ovens, Ariston 90cm Oven Hinge for a Sagging or Gapping Oven Door

Ariston's 900mm ovens have a wide, heavy door, and part 2199071 is the genuine hinge listed for that size. Extra width means extra weight on each hinge, so wear tends to show as a door that drops hard or no longer closes square. This hinge is listed separately from the 600mm version, 2199070, so check your oven width as well as the number on the old hinge. No model list is on file for 2199071.

How a worn 900mm oven hinge shows itself

The hinge lets the door swing smoothly and uses spring tension to pull it tight against the door seal when closed. On a big 900mm door, a tired spring or worn pivot shows up quickly. The door may thump down when you open it, sit lower on one side, refuse to stay closed, or grind and squeak through its travel. Heat escaping past a poorly closed door can scorch the controls above it, fog the glass and make the oven slow to come up to temperature.

Part details

• Genuine Ariston hinge 2199071
• For 900mm Ariston ovens
• Spring tension pulls the door closed against the seal
• The 600mm oven hinge is a different part, 2199070
• No model list on file, check the old hinge

Changing a hinge on a 900mm oven

A 900mm oven door is heavy and mostly glass, so have a second person on hand. Turn the oven off at the wall or isolator and let it cool. Lock the hinges open, lift the door away and set it down on a blanket. Undo the screws holding the hinge to the frame, swap it over, refit the door and check it closes evenly.

Questions about this part

Will the 600mm hinge fit my 900mm Ariston oven?

They're listed as separate parts for different oven widths, 2199070 for 600mm and 2199071 for 900mm. Measure your oven and check the number on your old hinge before ordering, or send the model through our parts enquiry form.
