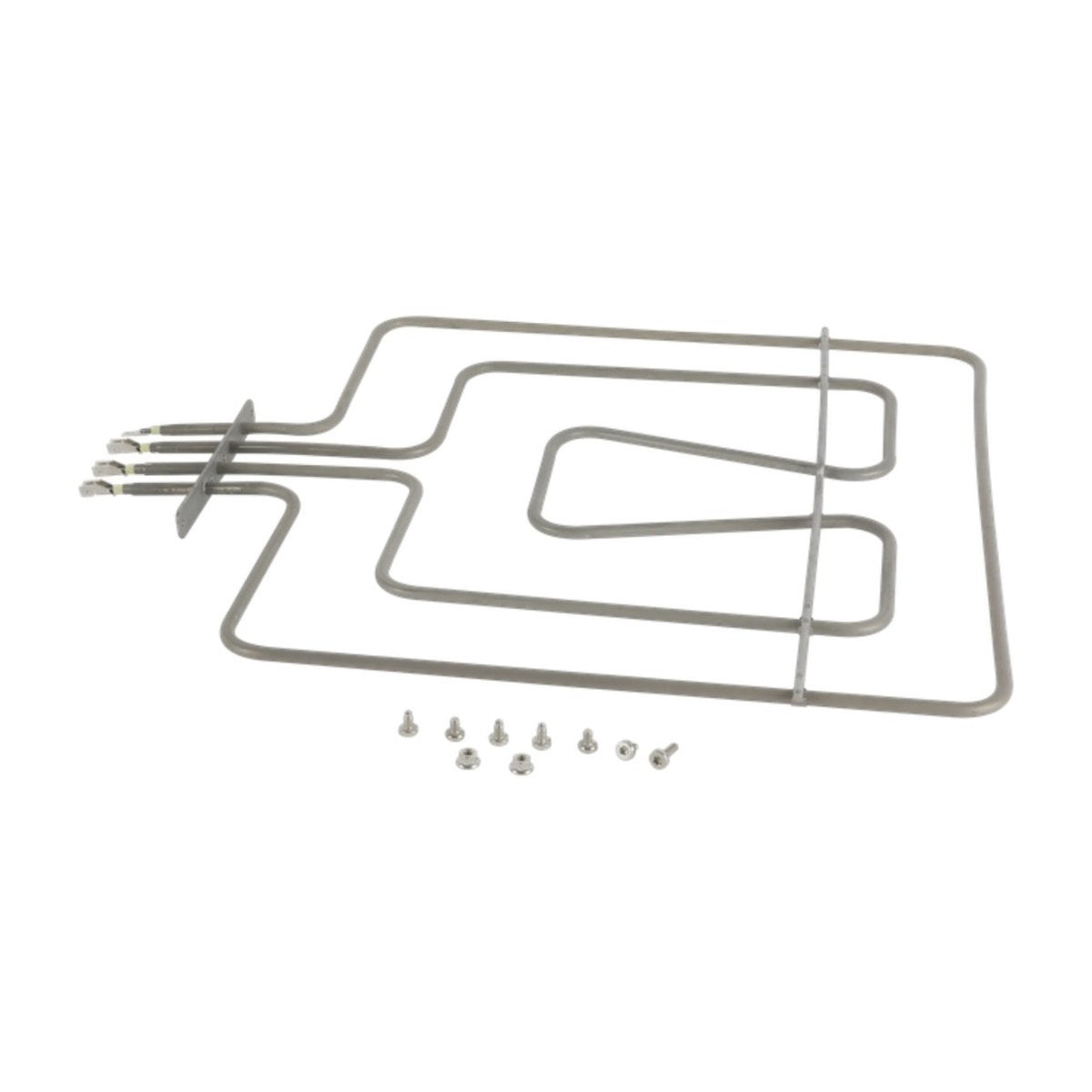

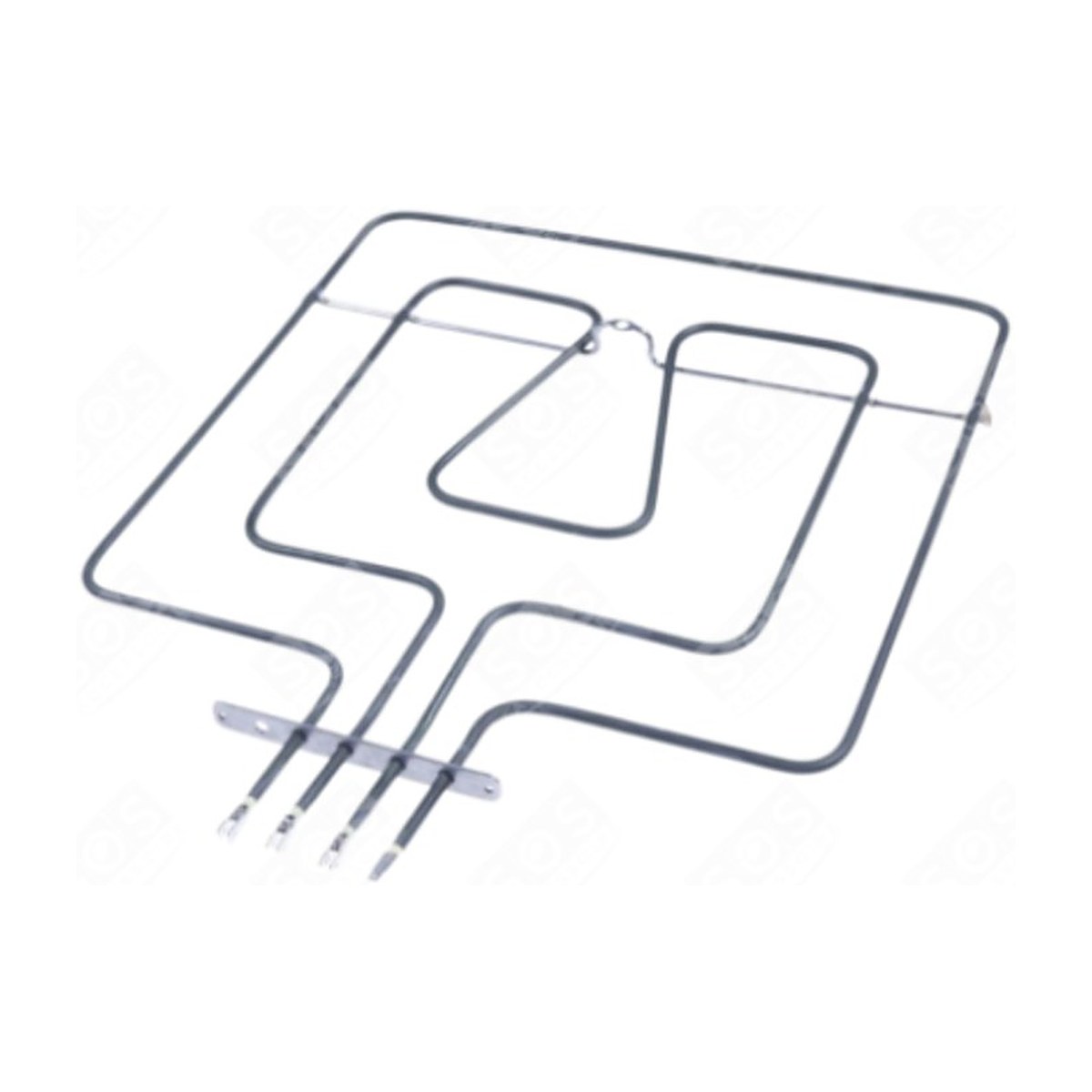

20006486 Genuine Oven Top Element Dual Circuit 2700W 220-240V 00776188 for Bosch Ovens HBA534ES0A
- Original part no.
- 20006486
- Part grade
- Genuine
- Appliance
- Oven Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
20006486 is the genuine Bosch upper heating element, a dual circuit 2700W unit rated at 220 to 240V. It is also listed as 00776188, 20003529 and 20006257. It's on file for the HBA534ES0A in many versions, including /03, /05, /08, /16, /21, /30, /44, /49 and /67, so check the full number on your oven's rating label.
Bosch oven top element not working
Mounted in the roof of the oven cavity, the top element supplies heat from above for the top heat and grill functions. Being dual circuit, it has two heating sections that the oven can run together or separately, depending on the function chosen. When one circuit burns out, the grill may only heat in part, food won't brown on top, or top heat settings stay cold. Visible blisters, breaks or a burnt patch on the sheath are a clear sign it has failed.
Part details
- Genuine Bosch part 20006486
- 2700W, 220-240V
- Dual circuit upper element
- Also listed as 00776188, 20003529 and 20006257
- On file for HBA534ES0A versions
| Power | 2700W |
|---|---|
| Voltage | 220-240V |
| Type | Dual circuit |
Replacing the top element
Turn the oven off and isolate it at the switchboard, as ovens are normally hard-wired and electrical work should be done by a licensed electrician. Let it cool fully. Reaching the terminals usually means sliding the oven out of its cabinet. Photograph the wiring on every terminal before disconnecting, then move each wire to the matching terminal on the new element.
Questions about this part
Why does a new element smoke the first time?
A new element often gives off a little smoke or a smell on first use as manufacturing residue burns off. Run the oven empty on a high setting for a while, with the kitchen well ventilated, before cooking.
Specifications
| Original part number | 20006486 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 20006486 |
| Appliance | Oven Parts |
| Shipping weight | 0.7 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
