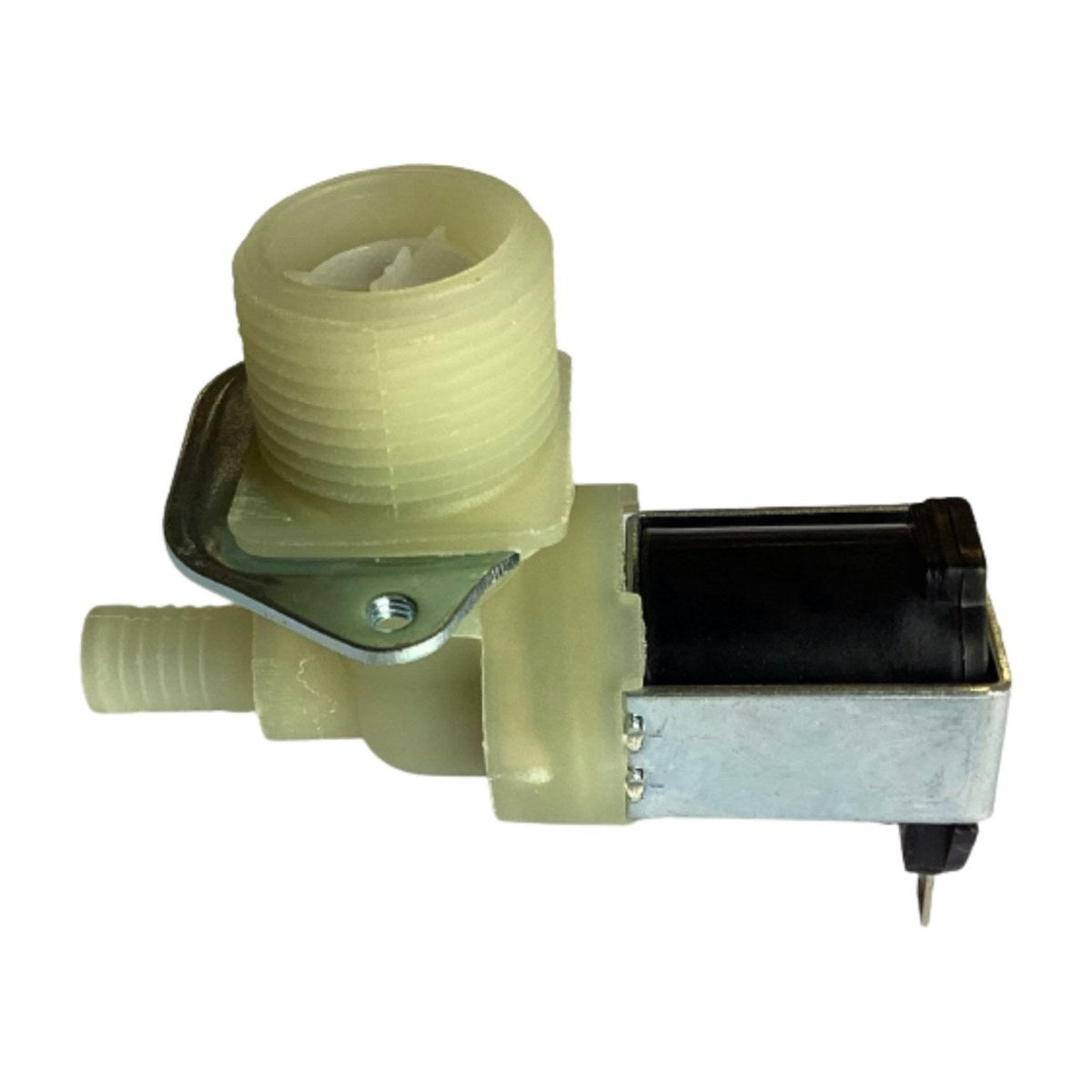

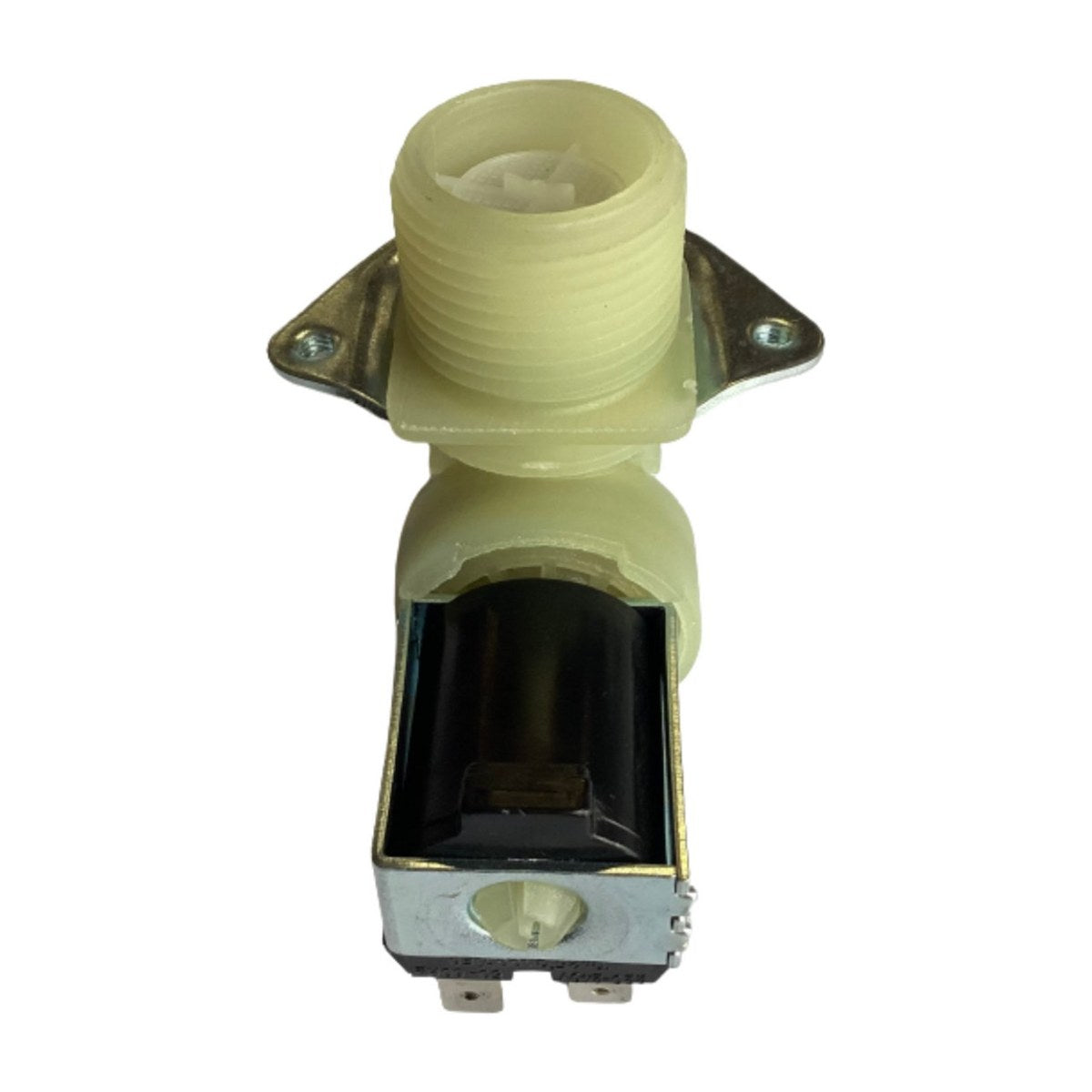

1760008833 Genuine Single Inlet Valve Hot or Cold for Simpson, Westinghouse Top Load Washing Machines SWT1043 SWT955SA 36S605M 22S757J LT955SA

Part 1760008833 is a genuine single inlet valve for Simpson and Westinghouse top load washing machines, and it can be used on the hot or cold supply. It replaces the earlier valve numbers 4055731402 and 119410001. Listed models cover the Simpson SWT range, such as the SWT1043, SWT955SA and SWT902SA, Simpson 22S and 36S machines, and Westinghouse LT top loaders like the LT955SA.

Washing machine not filling or overfilling

The inlet valve is an electrically operated tap at the back of the machine. When the control calls for water, the solenoid opens and lets it through, then closes once the bowl has filled. A valve with a failed coil stays shut, so the machine won't fill at all, or only gets water from the other tap and washes everything hot or everything cold. A valve that sticks open, or has grit under its seal, does the opposite, letting water dribble in when the machine is off or overfilling the bowl. A leak from the valve body is another reason to swap it.

Part details

• Genuine Electrolux group part 1760008833
• Single solenoid inlet valve, hot or cold position
• Replaces 4055731402 and 119410001
• Suits Simpson SWT, 22S and 36S top loaders
• Suits Westinghouse LT top loaders

Swapping the inlet valve

Turn off both taps and pull the plug out of the wall before starting. Disconnect the inlet hose and catch any water left in it. The valve is usually reached by removing the rear panel or top cover. Take a photo of the wiring and the hose clamps, then transfer them to the new valve. Clean the filter screens in the hose ends, refit everything and check for leaks on the first fill.

Questions about this part

Can this valve go on the hot side and the cold side?

Yes, it's listed for either the hot or the cold position on the models it suits. If your machine has two single valves and both have failed, you'll need two of these.
