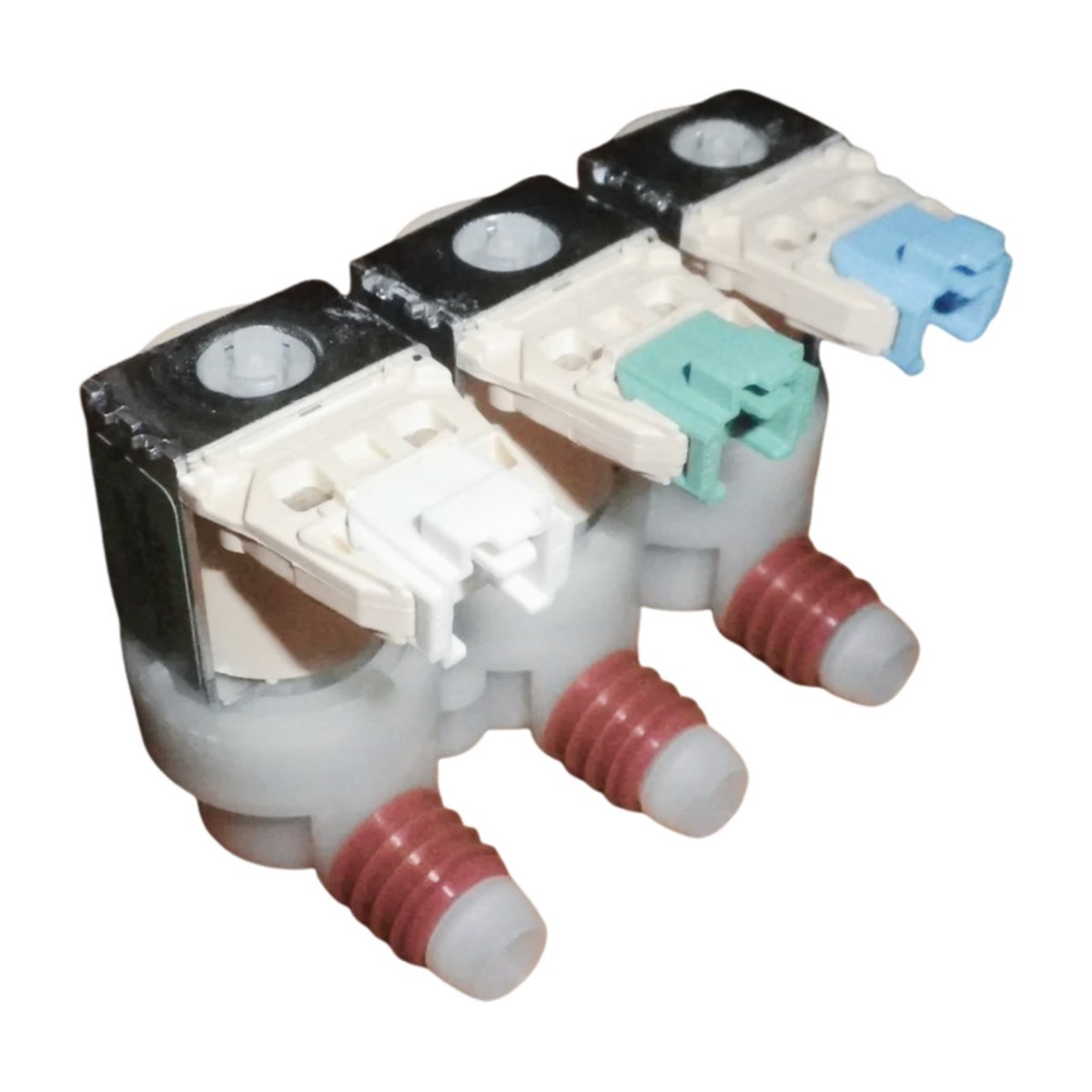

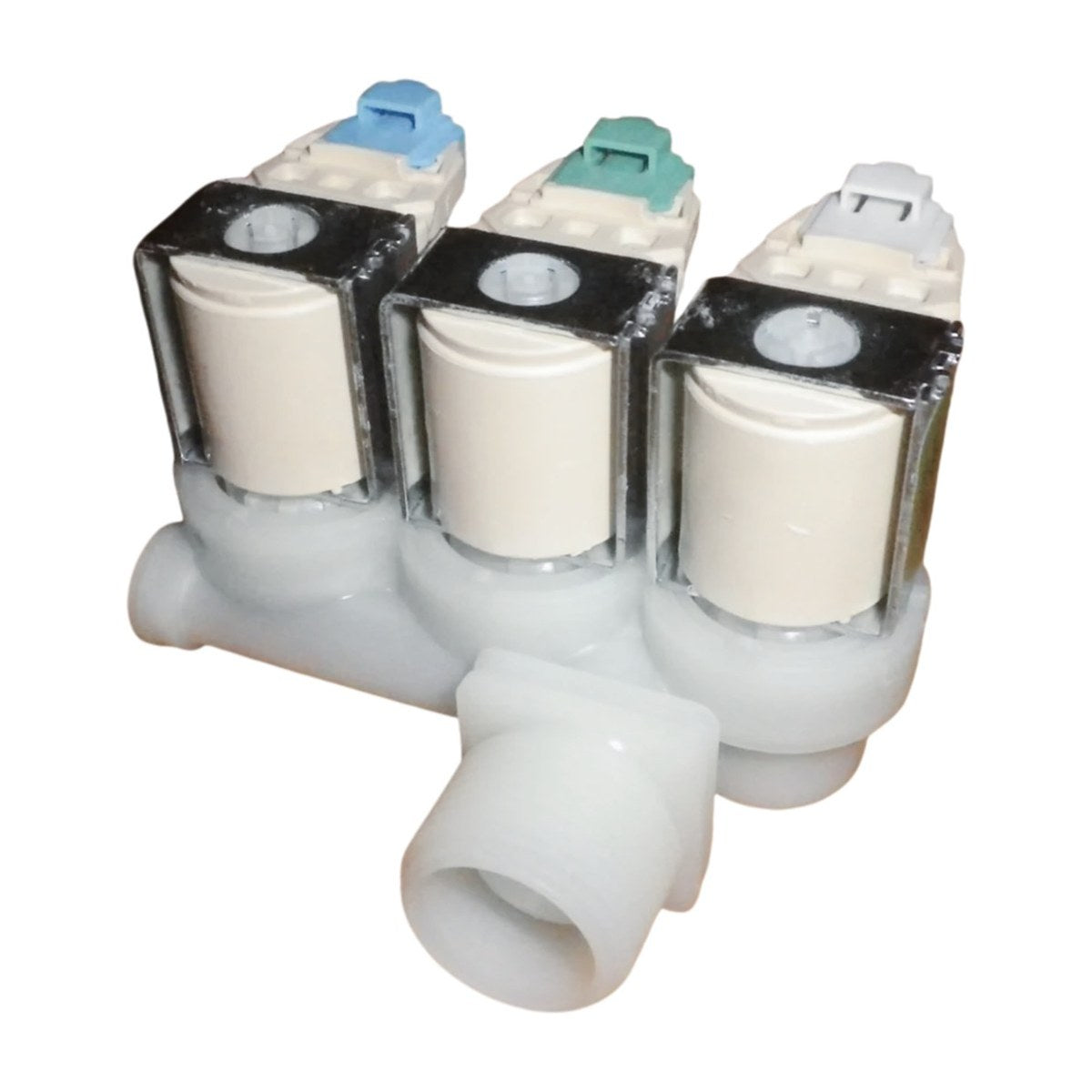

140207157029 Genuine Cold Water Inlet Valve 1 Inlet 3 Outlet for Westinghouse Washing Machines WWT1284M7WA

Westinghouse washing machine not filling properly? 140207157029 is the genuine cold water inlet valve with a single inlet and three outlets, listed for the WWT1284M7WA. Multiple outlets let the machine send cold water along different paths at different stages of the wash, for example through the detergent or softener dispenser.

Washing machine not filling or overflowing?

The inlet valve is where the cold tap hose screws onto the machine. Each outlet is usually controlled by its own solenoid coil, and the control board opens them in different combinations to route water where it's needed. A coil that fails leaves that path dry, so the machine might fill slowly, not flush the softener or detergent properly, or stop with a fill error. A valve that doesn't close fully lets water creep in even when the machine is off, which can overfill the tub or leak. Low tap pressure or blocked inlet screens can mimic a faulty valve.

Part details

• Genuine Electrolux group part 140207157029
• Cold water inlet valve
• One inlet, three outlets
• Listed for the Westinghouse WWT1284M7WA

Fitting the inlet valve

Turn off both taps and switch the machine off at the wall. Unscrew the cold hose from the back, then remove the top or rear panel to reach the valve. Label each outlet tube and coil wire before you disconnect them, as getting the order wrong sends water to the wrong place. Clean the tap end of the hose and check its washer, then run a test fill.

Questions about this part

Can I use this valve on the hot water side?

This valve is listed as the cold water inlet with one inlet and three outlets. Machines with a hot connection usually have a separate hot valve, so order by the part number on the old valve or by your model number.
