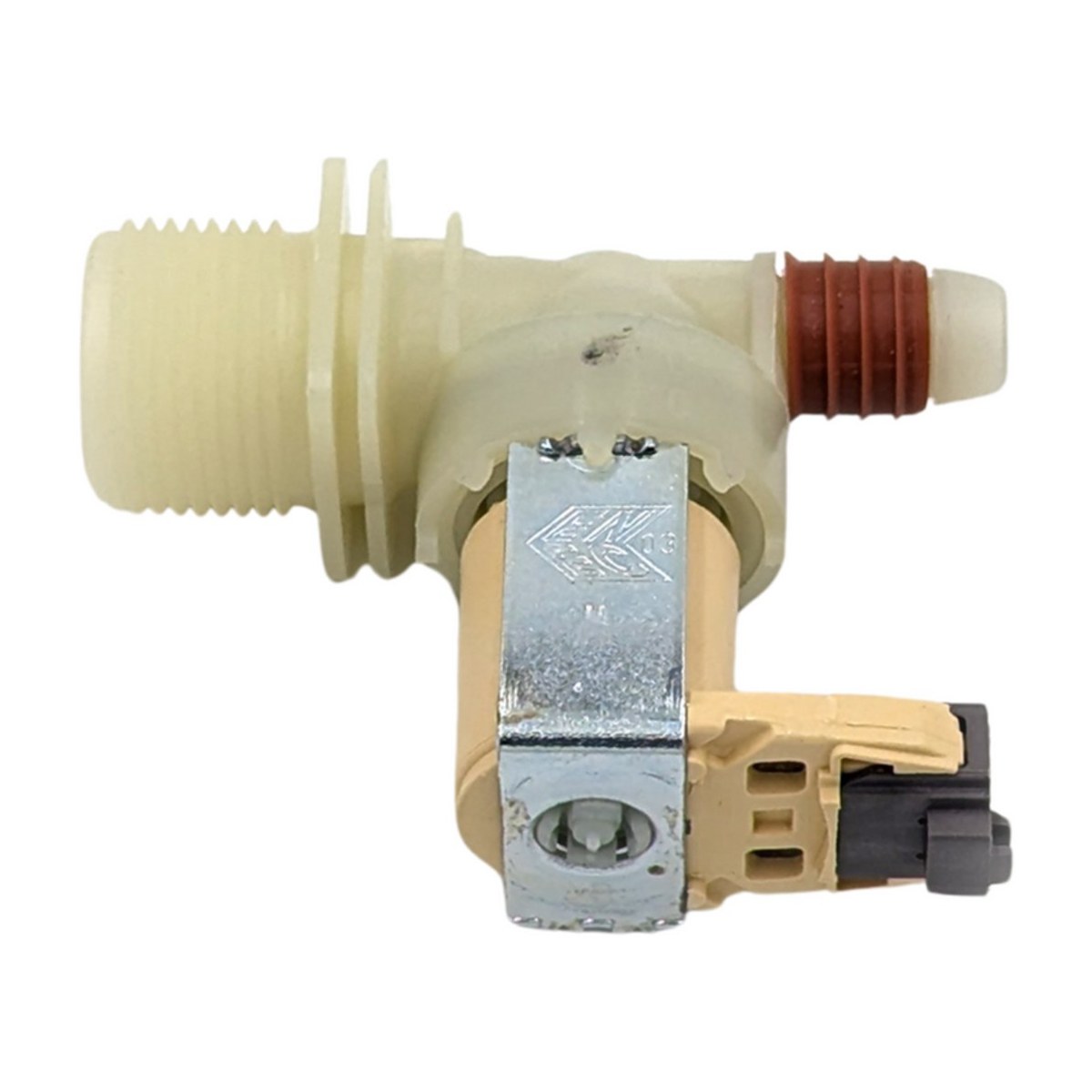

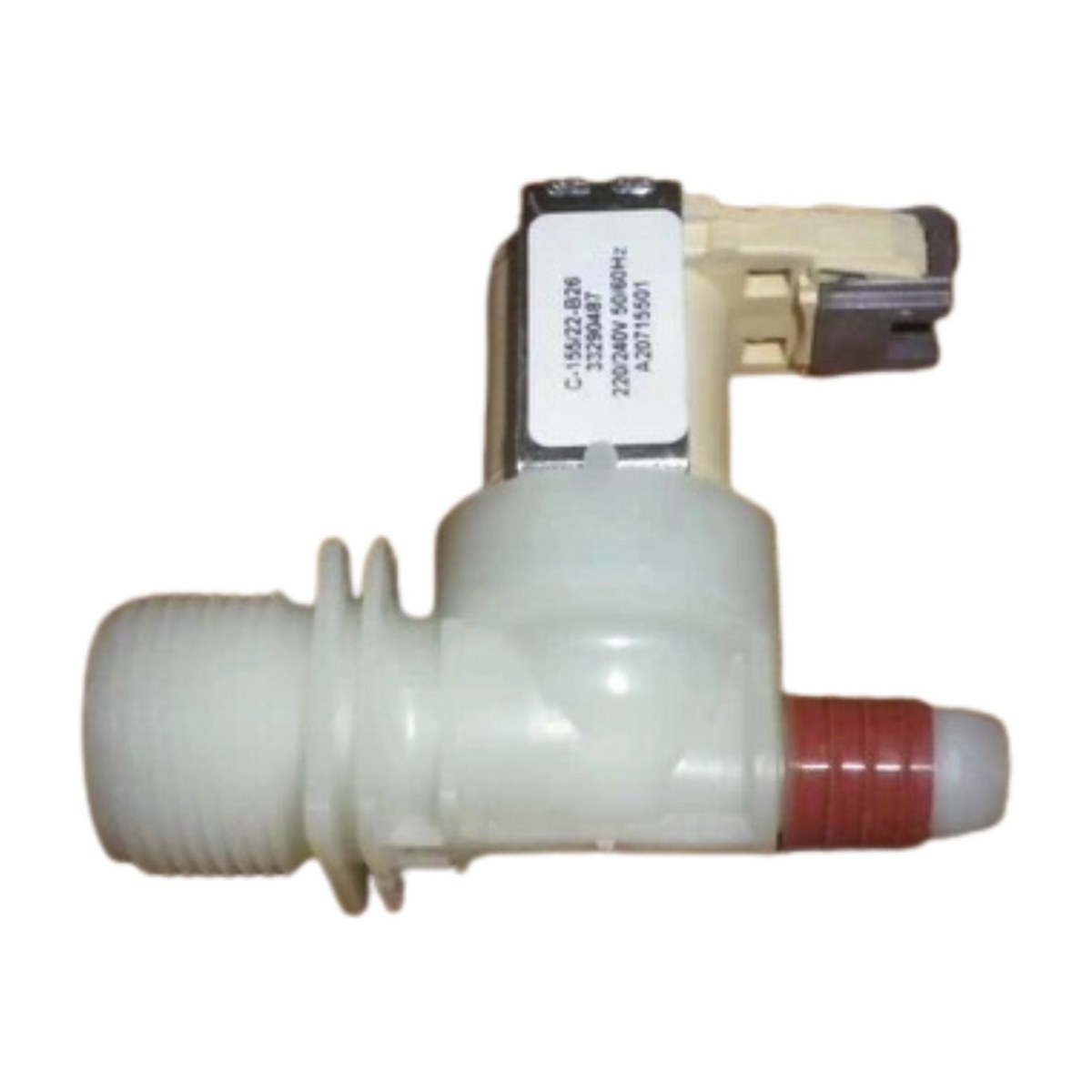

140207155015 Genuine Single Hot Water Inlet Valve for Westinghouse Top Load Washing Machines WWT1084C7WA WWT9084C7WA WWT8084J7WA WWT7084J5WA

For Westinghouse WWT top load washers, 140207155015 is the genuine single hot water inlet valve. It controls the hot supply only, opening when the machine calls for warm or hot water. You may also see it listed as A20715501. Nine models are on file. They include the WWT1084C7WA and the larger WWT1284M7WA, with the J5 and J7 versions such as the WWT8084J7WA also covered.

Westinghouse washer not filling with hot water

Each inlet valve is an electric solenoid that stays shut until the control board sends it power. On a machine with separate hot and cold valves, a failed hot valve shows up as cold-only fills, a warm wash that never gets warm, or a fill error when a hot program is selected. A valve can also fail the other way, letting water creep into the tub while the washer is switched off. Before replacing it, check that the hot tap is on, the hose isn't kinked and the small filter screen inside the valve inlet isn't clogged with grit.

Part details

• Genuine Electrolux group part 140207155015
• Single solenoid hot water inlet valve
• Also listed as A20715501
• Suits Westinghouse WWT top load washing machines

Replacing the hot valve

Turn both taps off and switch the washer off at the wall. Disconnect the hot hose, keeping a bucket handy for the water still in it. Take a photo of the wire and hose connections, swap them across to the new valve one at a time, then reconnect the hot hose with a new washer if the old one is flattened. Run a hot fill and check for leaks.

Questions about this part

How do I know it's the hot valve and not the cold?

Run a hot program and a cold program in turn. If cold fills normally but hot doesn't, with the hot tap on and the hose clear, the hot valve or its wiring is the likely fault. The coil can also be tested for resistance with the power off.
