140163226032 Genuine Heating Element 1950W with Sensor for Electrolux, Westinghouse, Simpson, AEG Washing Machines EWF14013 EWF12832 WWF1284

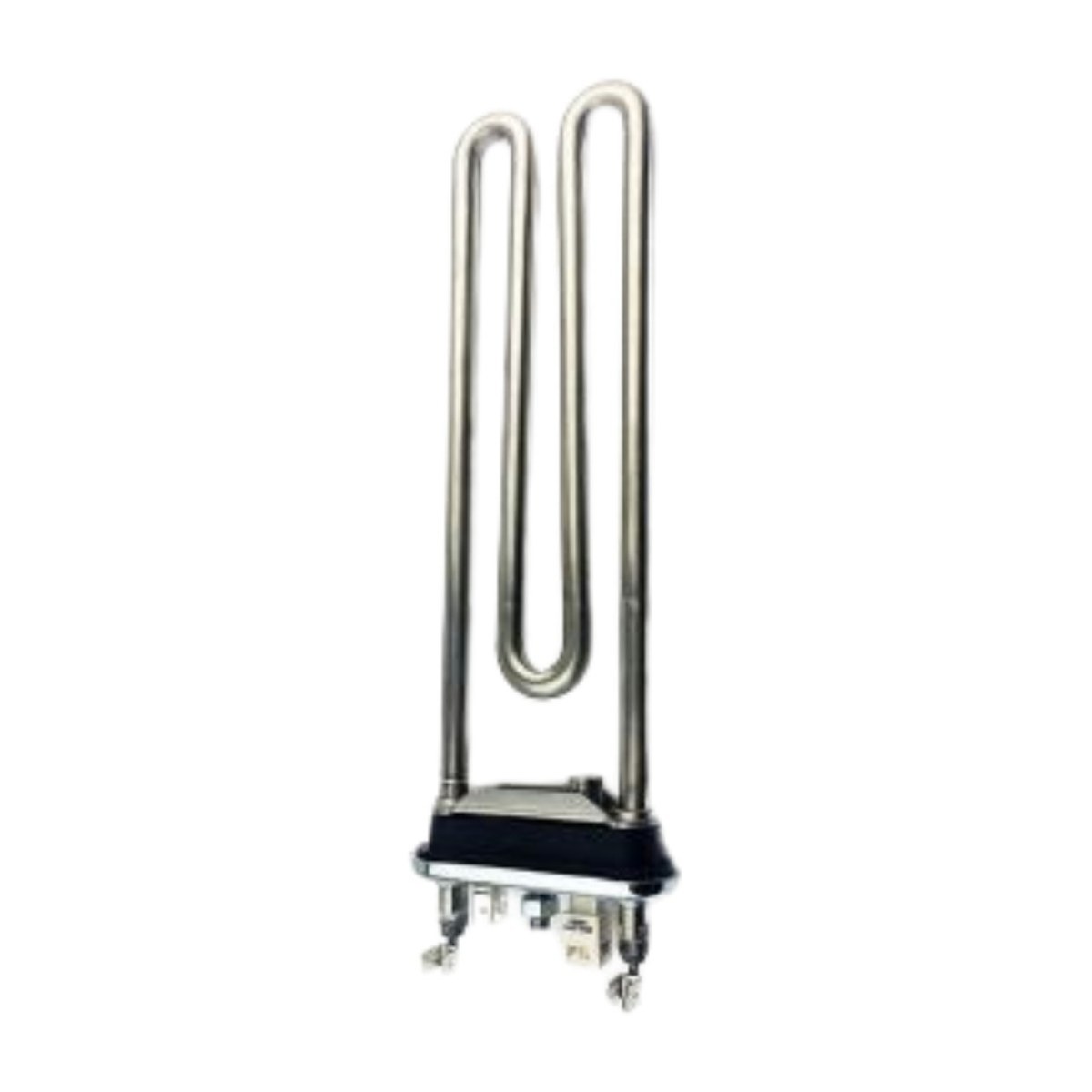

Front loader washing in cold water no matter what program you pick? Part 140163226032 is a genuine 1950W heating element with sensor, made for Electrolux group front load washers. It's listed for a long run of Electrolux EWF and EWW models, Westinghouse WWF, Simpson SWF and the AEG L99699HWD. You may also find it under 4055682415, an alternative number for the same element.

Electrolux washer not heating water? Check the element

The element sits in the bottom of the outer tub, under the drum, and heats the water for warm and hot programs. The sensor fitted with it reports the water temperature back to the control board so the machine knows when to stop heating. When the element fails, washes come out cold, cycles can run much longer than normal, or the machine may trip the safety switch or show a heating fault. Scale build up from hard water and running without enough water are common reasons elements burn out.

Part details

• Genuine Electrolux group part 140163226032
• Alternative number 4055682415
• Rated at 1950W
• Supplied with sensor
• Fits Electrolux, Westinghouse, Simpson and AEG front loaders

Changing the heating element

Switch off at the wall, turn off the taps and drain any water left in the machine before you start. Depending on the model, the element is reached from the back or from behind the lower front panel. Photograph the wiring, loosen the centre nut and work the old element out of the tub. Slide the new one in so it sits in the same position as the old one, tighten the nut evenly and test on a warm wash.

Questions about this part

How do I know the element is faulty?

With the power off and the wires removed, a multimeter across the element terminals should show a resistance reading. An open circuit means the element has failed, and a reading between a terminal and the metal flange suggests it's leaking to earth.
