140070357094 Genuine Ice Maker Ventilation Assembly for Electrolux Fridges with Built-In Ice Makers

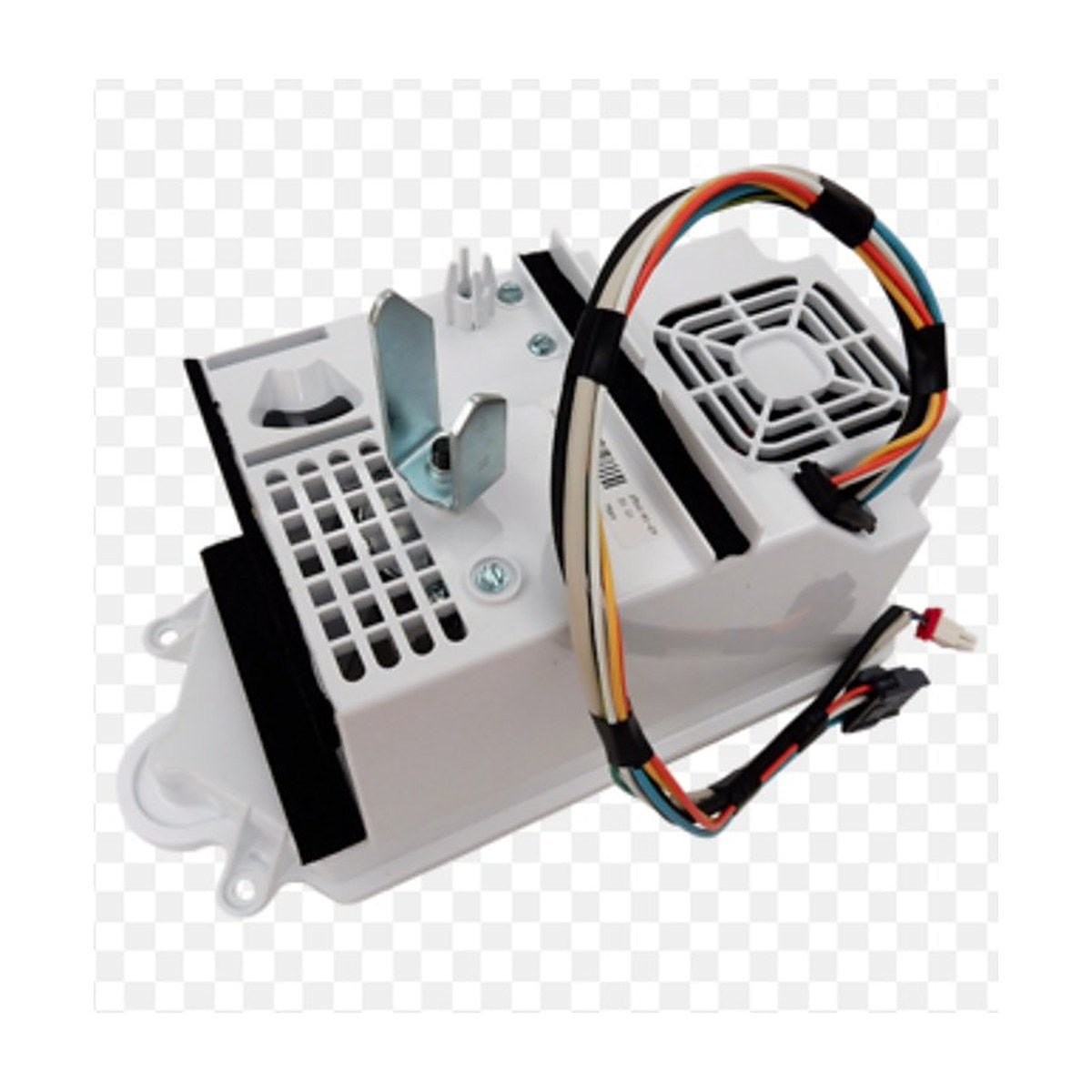

Part 140070357094 is a genuine Electrolux ventilation assembly for the ice maker section of Electrolux fridges. It is part of the airflow system that keeps the ice maker area cold enough to freeze water and hold the stored cubes frozen. Layouts differ between models, so match your fridge model number to part 140070357094 before placing an order.

Electrolux ice maker not making ice or cubes melting

An ice maker needs a steady supply of freezing air to turn water into cubes and stop them fusing together in the bin. The ventilation assembly forms part of the path that air follows into the ice maker area. If it cracks, warps, comes loose or the vent becomes blocked, ice production can slow down or stop, cubes can clump into a solid block, water can drip from the dispenser and frost can build up where warm air gets in. Before replacing it, check the freezer is cold and that the vent is not simply iced over.

Part details

• Genuine Electrolux part number 140070357094
• Ventilation assembly for the ice maker section
• Suits Electrolux fridges fitted with ice makers

Replacing the ventilation assembly

Switch the fridge off at the wall and remove the ice bin and any ice from the compartment. Take photos as you remove covers so everything goes back exactly the same way, including any seals, wiring or foam pieces. Fit the new assembly, make sure any ducts line up and clips are fully engaged, then restart the fridge. Allow a day for ice production to return.

Questions about this part

How do I confirm this suits my fridge?

Check the model and serial number on the rating label inside the fridge section and match them to 140070357094. Electrolux uses different ice maker assemblies across its range, so the model number is the safest way to confirm.
