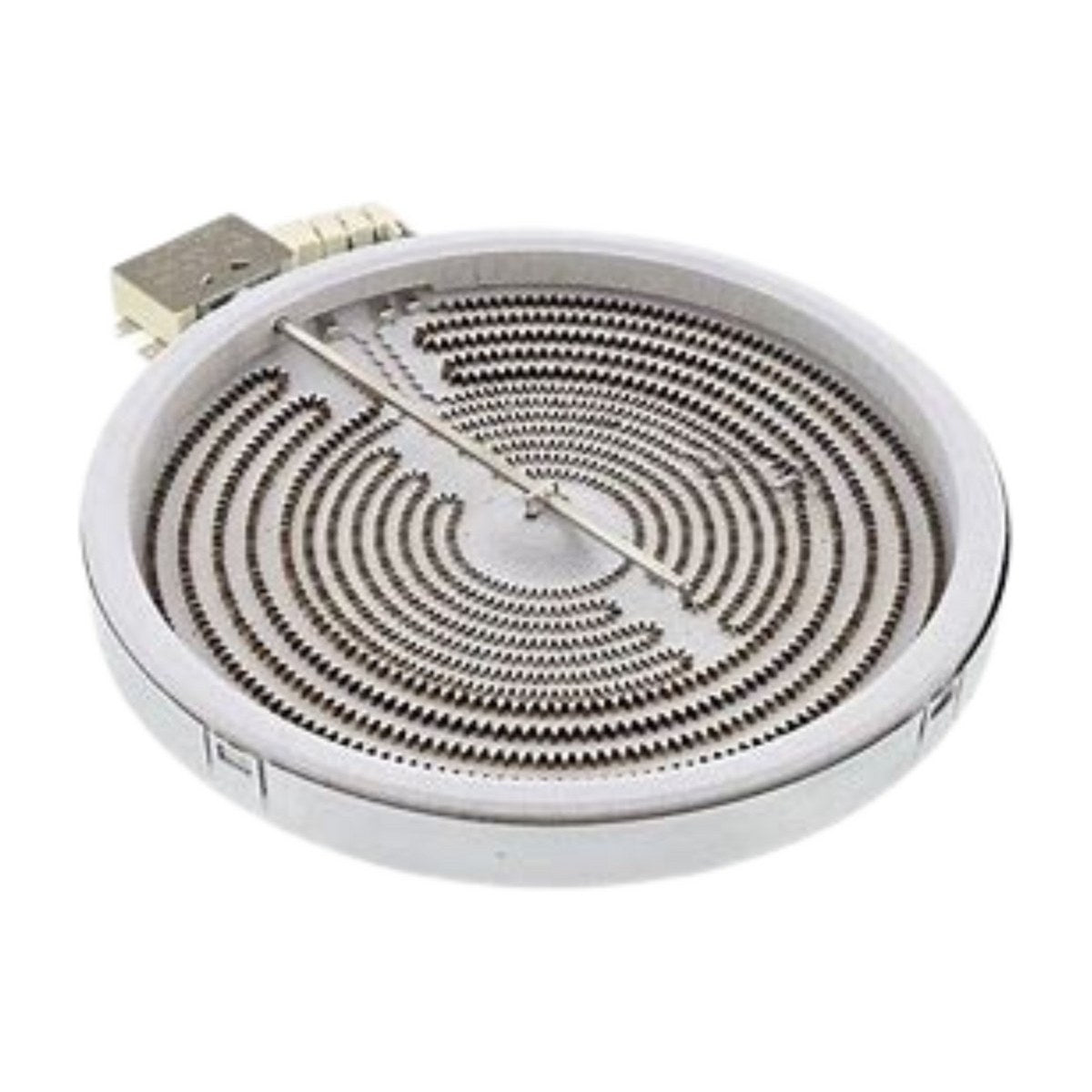

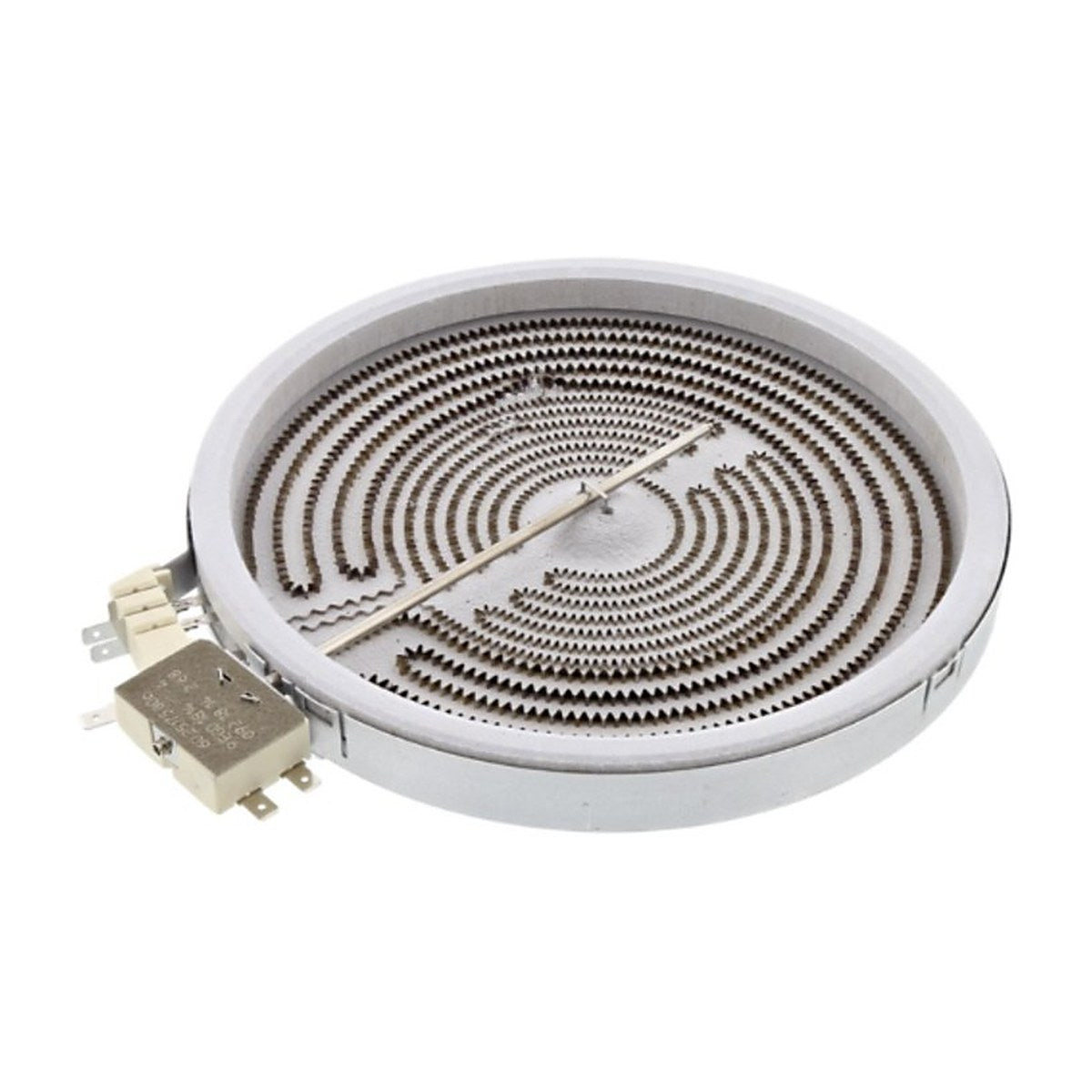

140057321014 Genuine Dual Zone Radiant Element 210/120mm 2200W for Electrolux, Westinghouse Ceramic Cooktops PHN668U WHC942BA WHC644SA EHEC65BS

Part 140057321014 is a genuine dual zone radiant element for ceramic cooktops, rated at 2200W with 210mm and 120mm zones. It also carries the number 374064021. It's listed for 18 models, among them the Westinghouse WHC942BA and WHC644SA, the Electrolux EHEC65BS, the AEG HK614010MB, and cooktops in the PHN, PHP, PHR, PPP and PPR series such as the PHN668U and PHR395U.

Cooktop zone not heating or only the inner ring working?

A dual zone radiant element has two heating rings under the glass, a small inner zone for small pans and an outer ring that joins in for larger cookware. Both glow red when switched on, controlled by the energy regulator or the electronic controls. When the element fails, the zone may not heat at all, only the inner ring may work, the outer ring may not come on when selected, or the coil may show a visible break. If both rings are dead, check the regulator, dual switch and wiring before changing the element.

Part details

• Genuine Electrolux group ceramic cooktop element
• Part number 140057321014
• Also listed as 374064021
• Dual zone, 210mm and 120mm
• Rated 2200W
• Listed for 18 Electrolux, Westinghouse and AEG models

Fitting a ceramic cooktop element

This is hard-wired work, so it should be done by a licensed electrician with the cooktop isolated at the switchboard. The glass top usually has to be lifted to reach the element. Photograph the terminals and the temperature limiter wiring before disconnecting anything, and make sure the new element sits flat and centred under the zone markings. Test both rings once the cooktop is back together.

Questions about this part

Is 374064021 the same element?

374064021 is listed as a matching number for 140057321014, so either number on your old element or parts list points to this part. Confirm your cooktop model is on this page, or send us the model and product numbers to check.
