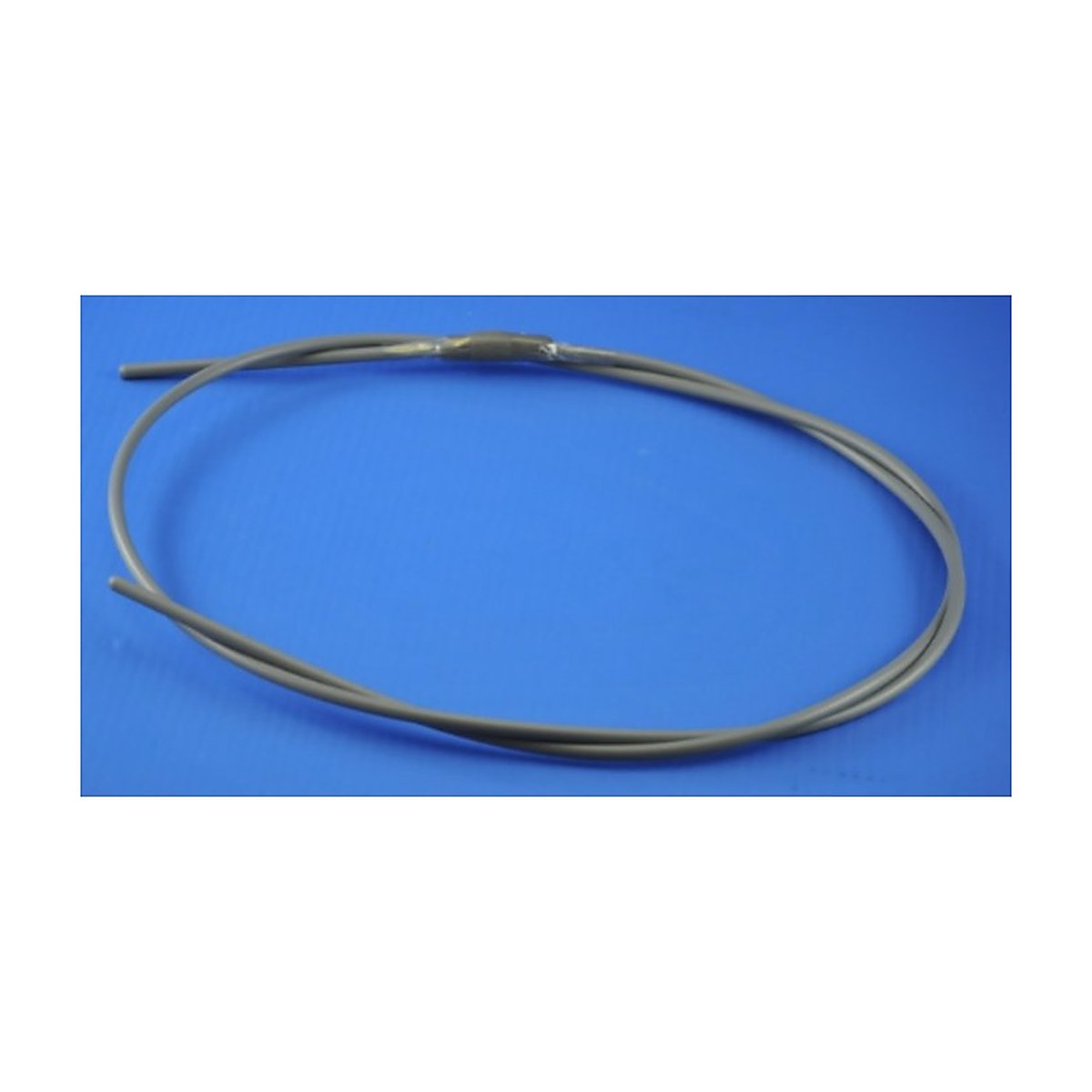

140051154155 Genuine Fridge Water Supply Tube, Double Valve to Hinge, for Electrolux Group Plumbed Fridges

Part 140051154155 is a genuine Electrolux water tube that runs from the double water valve to the hinge on fridges plumbed for water. It's one section of the water supply line, so it only suits fridges with this valve and routing. Check the number against your fridge's parts list or the old tube before ordering, as tube lengths and fittings vary between models.

Fridge leaking water or dispenser not flowing?

On a plumbed fridge, mains water enters through an inlet valve at the back of the cabinet. A double valve feeds two outlets, and this tube carries water from the valve up to the hinge, where the line continues on toward the dispenser or ice maker. A cracked, kinked or split tube shows up as water pooling under or behind the fridge, a dispenser that dribbles or delivers nothing, or an ice maker that stops producing. Older tubing can also harden with age and start leaking at its fittings.

Part details

• Genuine Electrolux part 140051154155
• Water tube from the double valve to the hinge
• For plumbed fridges with this tube routing

Replacing the water tube

Turn off the water supply tap and switch the fridge off at the wall before you start. Pull the fridge out carefully and keep some towels handy for trapped water. Note how the old tube is routed and clipped, swap it over and push each end fully home into its fitting. Turn the water on slowly, check for drips, then run the dispenser to clear air from the line.

Questions about this part

How do I check this is the right tube for my fridge?

Find the model and product number on the label inside the fresh food compartment and look them up in the water system parts list, or send the numbers to us. The tube routing from the double valve to the hinge differs between fridge models.
