140023448016 Genuine Door Handle Assembly Right Hand for Westinghouse Bottom Mount Fridges WBE4504SA-R WBE5304SA-R WBE5314SA
- Original part no.
- 140023448016
- Part grade
- Genuine
- Appliance
- Fridge Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

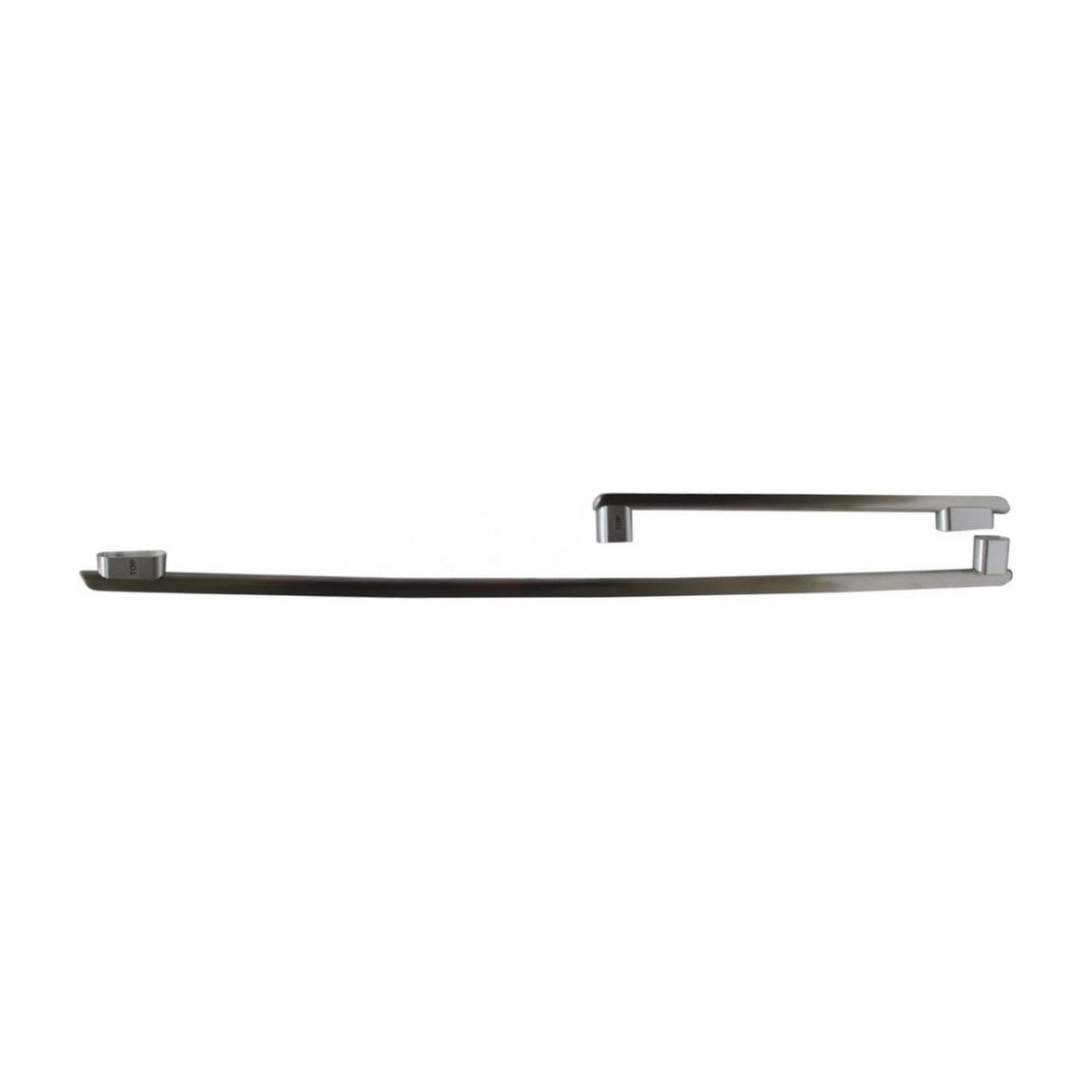

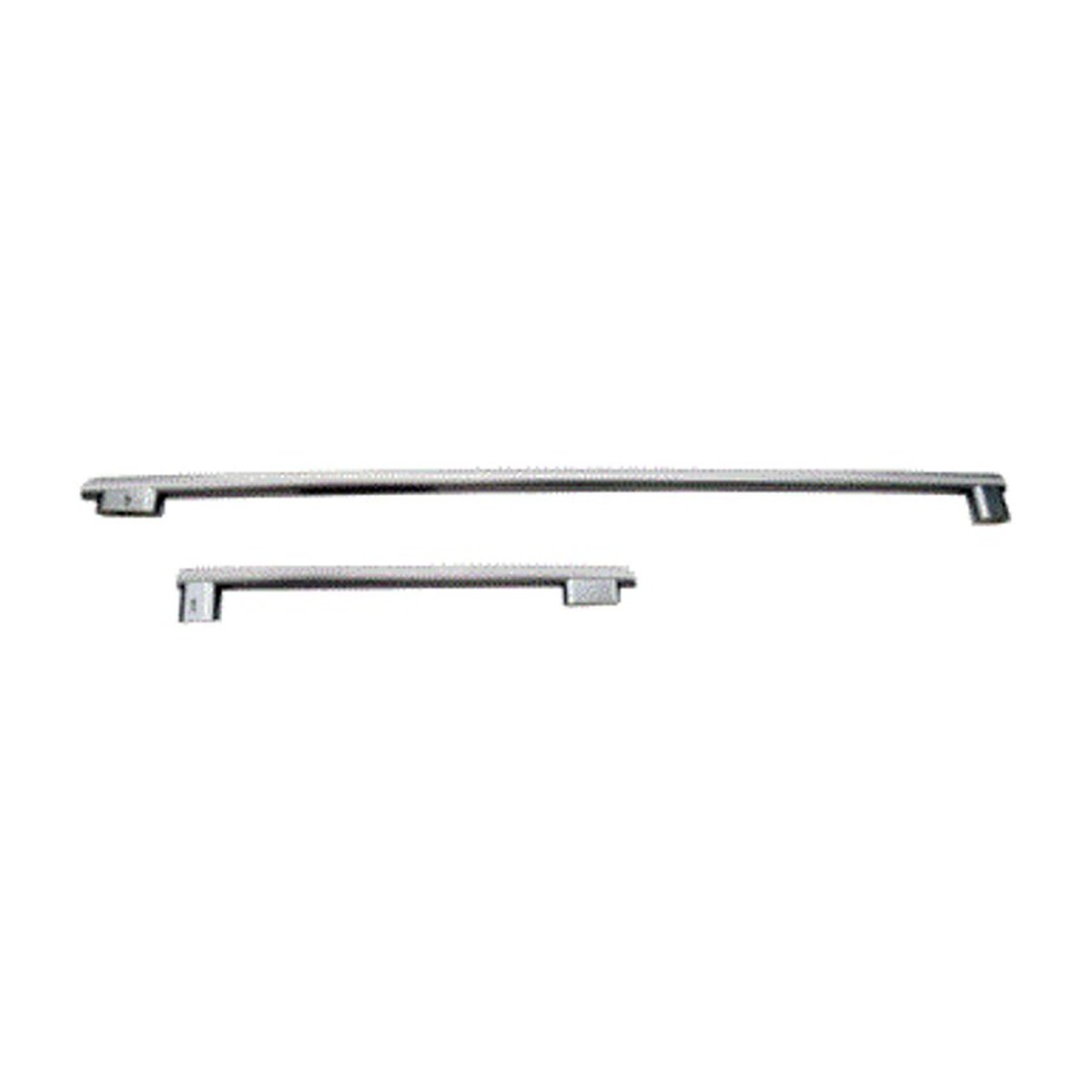

Genuine part 140023448016 is the right hand handle assembly used on the fresh food and freezer doors of Westinghouse bottom freezer fridges. It's listed for the WBE4504SA-R, WBE5304SA-R and WBE5314SA, and it's also known by the earlier number A02344801. Check which side your handles sit on before ordering, as this one is the right hand version.
Replacing a broken bottom mount fridge handle
On a bottom freezer fridge the handles take a lot of strain, because the freezer is pulled open low down and is often loaded heavily. Mounting lugs crack, screws strip out of the plastic and end caps go missing, leaving a handle that rocks or comes away. Replacing the assembly restores a solid grip and stops further damage to the door. If the handle is only loose, check whether the screws can simply be tightened before you order.
Part details
- Genuine Westinghouse part 140023448016
- Also known as A02344801
- Right hand handle assembly
- Used on the fresh food and freezer doors
- Listed for WBE4504SA-R, WBE5304SA-R and WBE5314SA
| Side | Right hand |
|---|
Fitting the handle assembly
Most handle swaps need nothing more than a screwdriver, but turn the fridge off at the wall if the doors will be open for long. Remove any trims or caps covering the fixings, undo the old handle and fit the new one to the same holes. Tighten the screws firmly and stop once they're snug, as over-tightening can split the plastic mounts.
Questions about this part
How do I know I need the right hand version?
This is the right hand assembly. Match your full model number, including any suffix such as -R, against the list on this page, and compare with your existing handle before ordering. If in doubt, send us your model number.
Specifications
| Original part number | 140023448016 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 140023448016 |
| Appliance | Fridge Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
