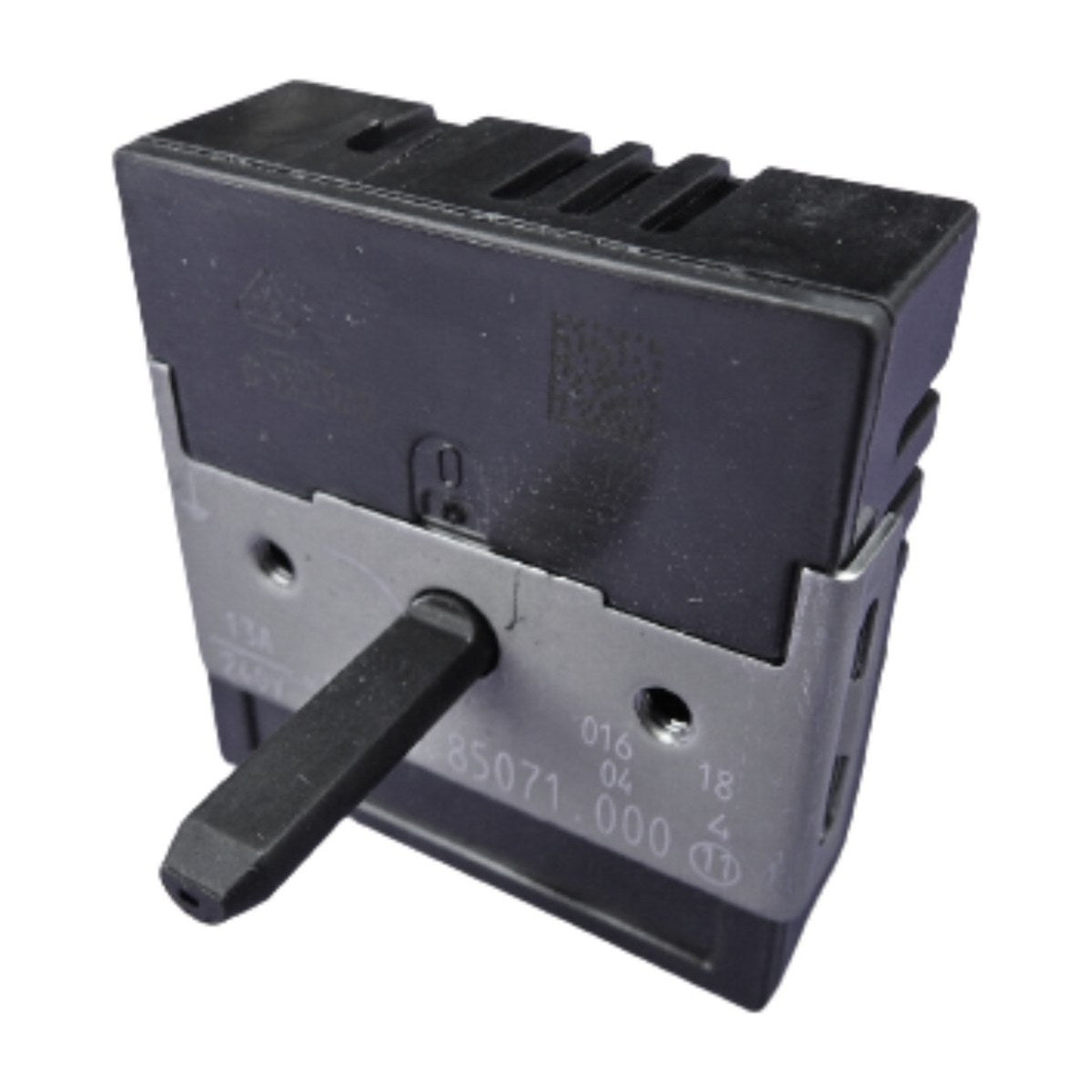

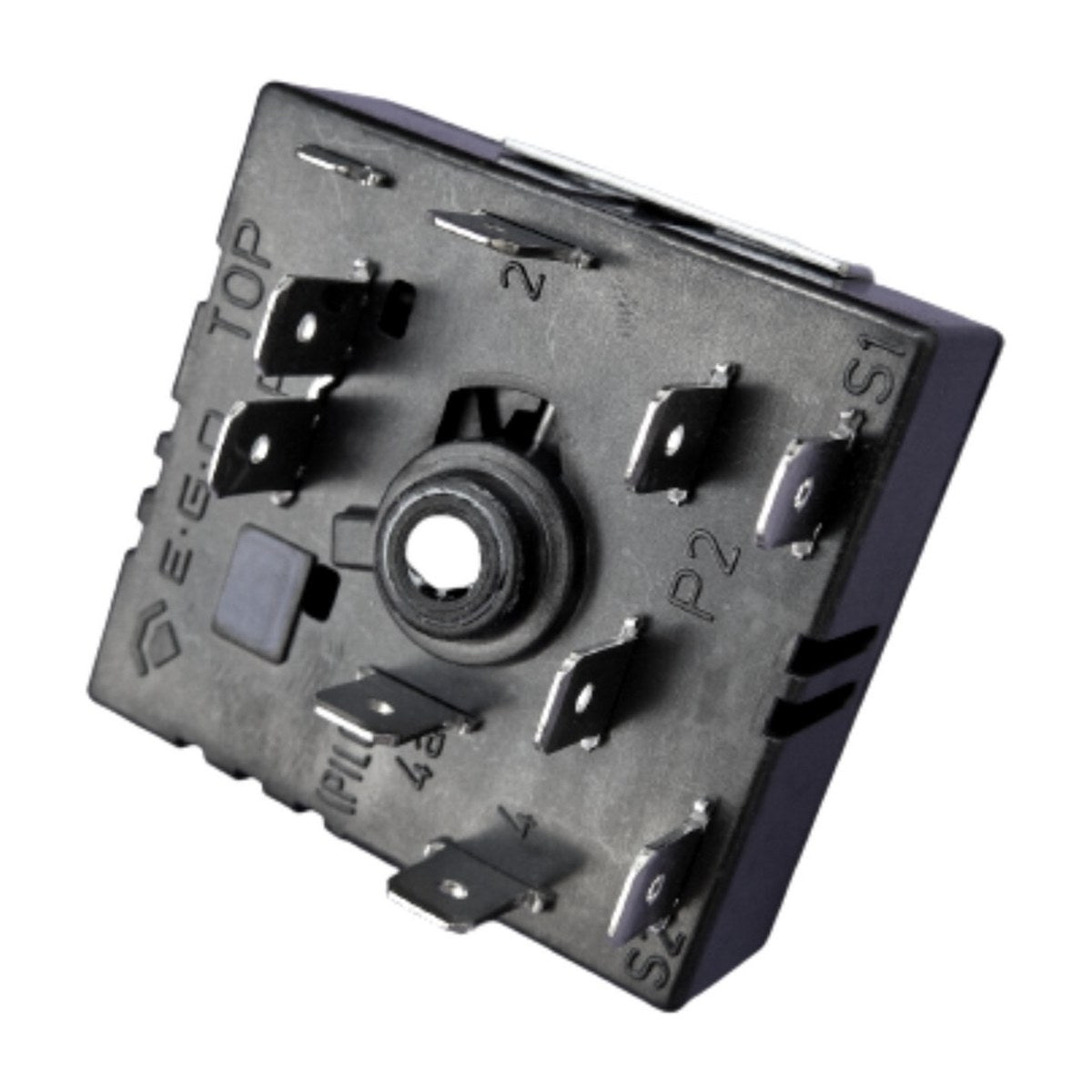

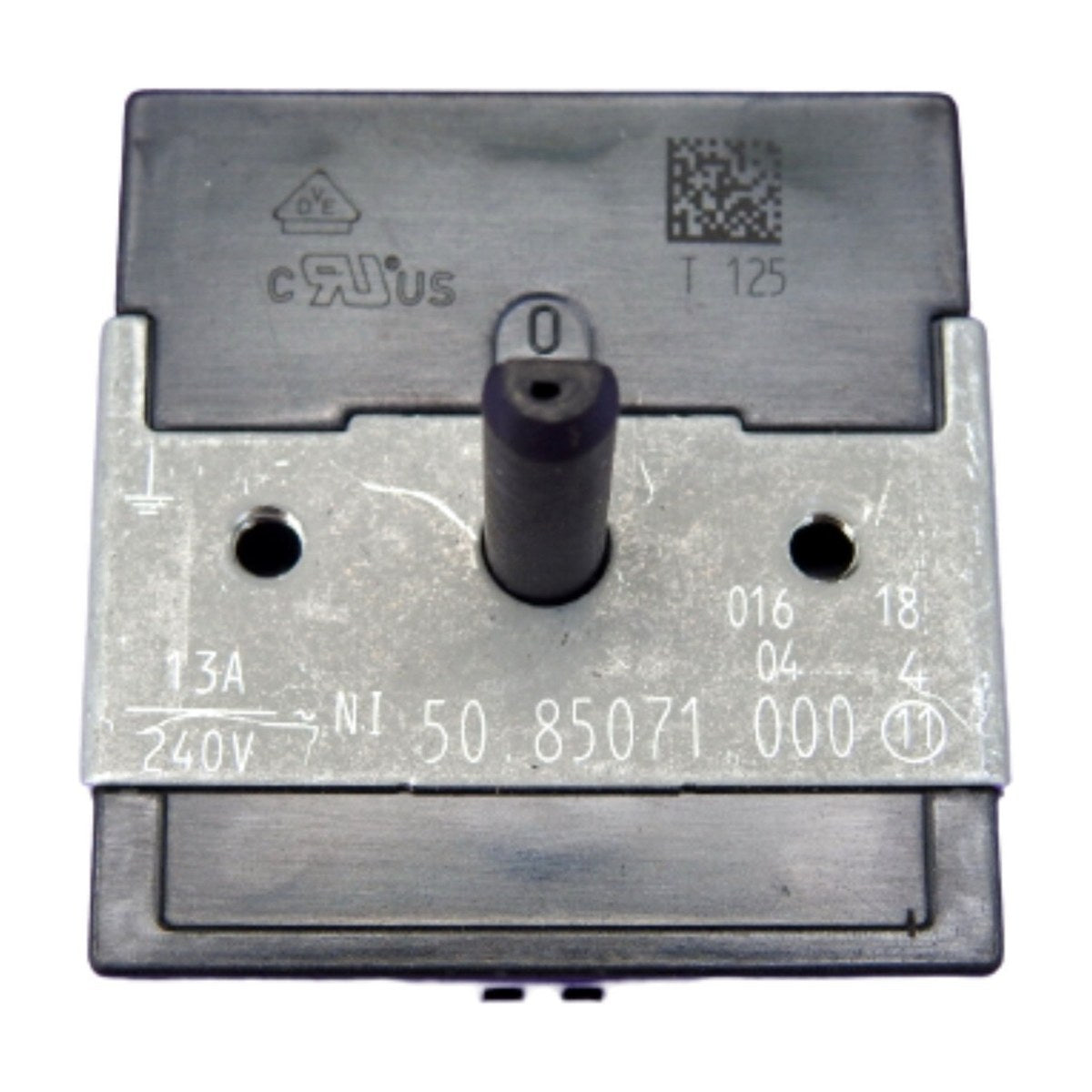

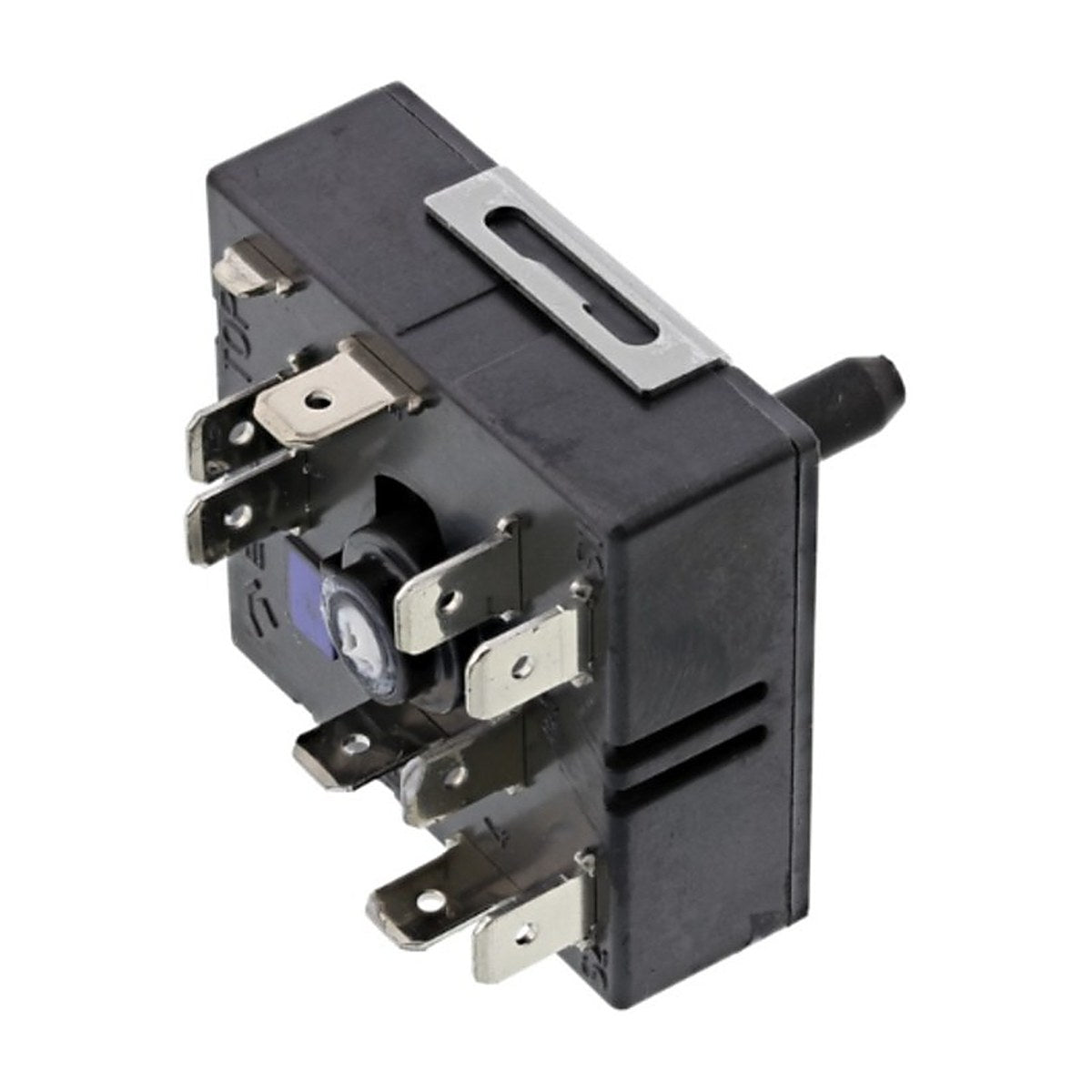

140013340017 Genuine Dual Zone Energy Regulator for Westinghouse, Electrolux, Chef Cooktops WHC942BA WHC644SA EHEC65BS CH605CM PHN285S PHR395U

Part 140013340017 is a genuine double energy regulator, the control switch behind the knob of a dual zone cooking area. It is rated 230V and also listed as A01334001. Models on file include the WHC942BA, the WHC644SA, the EHEC65BS and the CH605CM, along with older PH series cooktops such as the PHN285S, PHP285W and PHR395U.

Cooktop zone stuck on high or outer ring not working

An energy regulator controls heat by switching the element on and off in cycles, with longer on times at higher knob settings. The double version also brings the outer ring of a dual zone element in and out, so you can heat a small or a large pan. When the contacts wear, the zone may sit on full heat whatever the setting, not heat at all, cycle erratically, or the outer ring may never come on. Burn marks, a melted terminal or a hot smell near the knob also point to the regulator. Check the element is sound before replacing it.

Part details

• Genuine Electrolux group part 140013340017
• Alternative numbers A01334001 and 3051706-21/0
• Double regulator for dual zone elements
• Rated 230V
• Listed for WHC942BA, WHC644SA, EHEC65BS, CH605CM and PH series cooktops

Fitting a cooktop energy regulator

Cooktops are normally hard-wired, so isolate the circuit at the switchboard and have a licensed electrician fit the regulator. Photograph and label every wire before removing the old switch, as the terminal layout must be matched exactly. Pull the knob off, release the regulator from its bracket, move the wires across one at a time, and test each heat setting and both ring sizes once power is restored.

Questions about this part

Will a single zone regulator work instead?

No. A single regulator has no switching for the outer ring, so the second zone would not work. Dual zone elements need a double type like this one. Match the number 140013340017 or A01334001 on the old regulator where you can.
