140009518022 Genuine Water Level Pressure Sensor for Simpson, Electrolux Top Load Washing Machines SWT8043 SWT1043 SWT1254LCWA A00951802
- Original part no.
- 140009518022
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

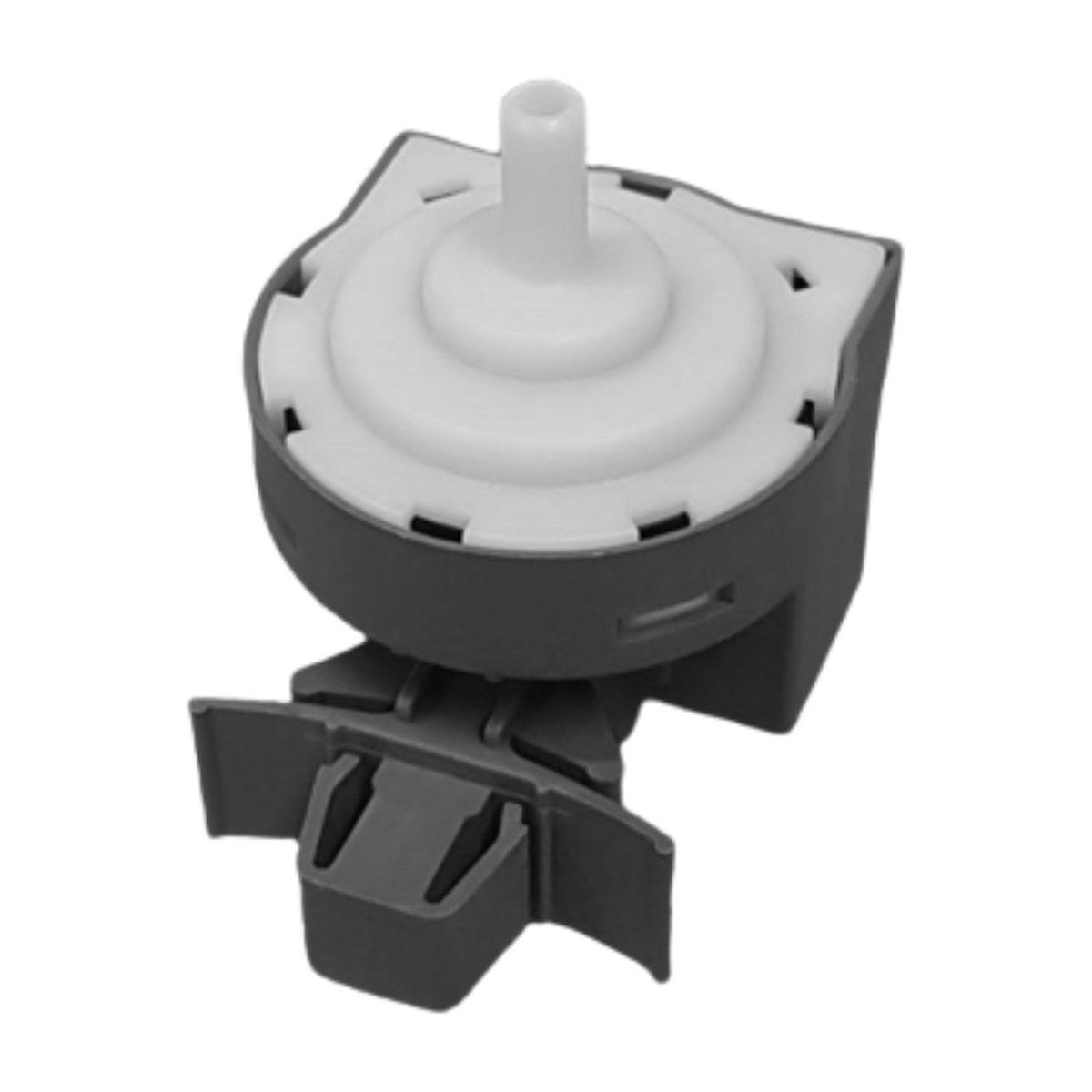

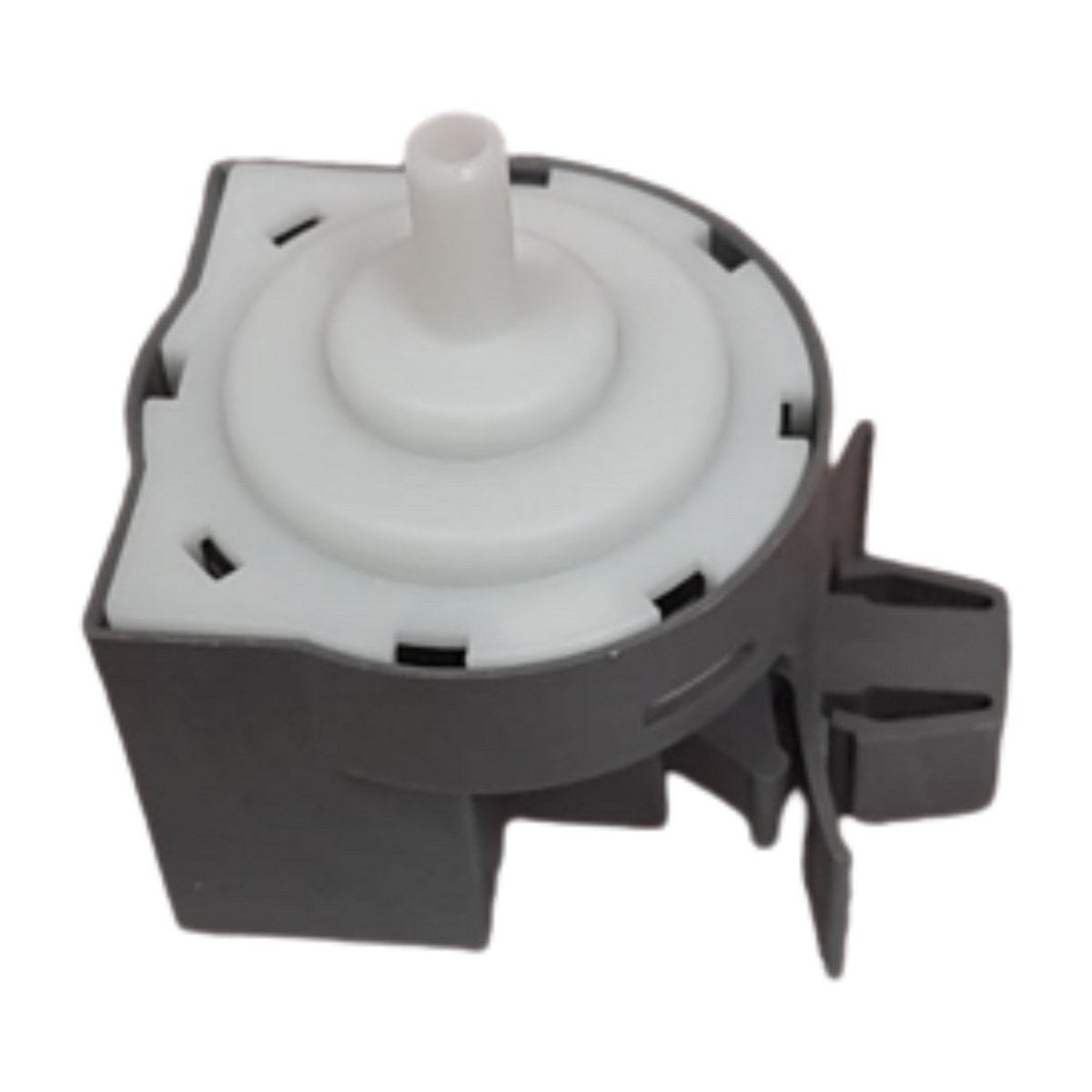

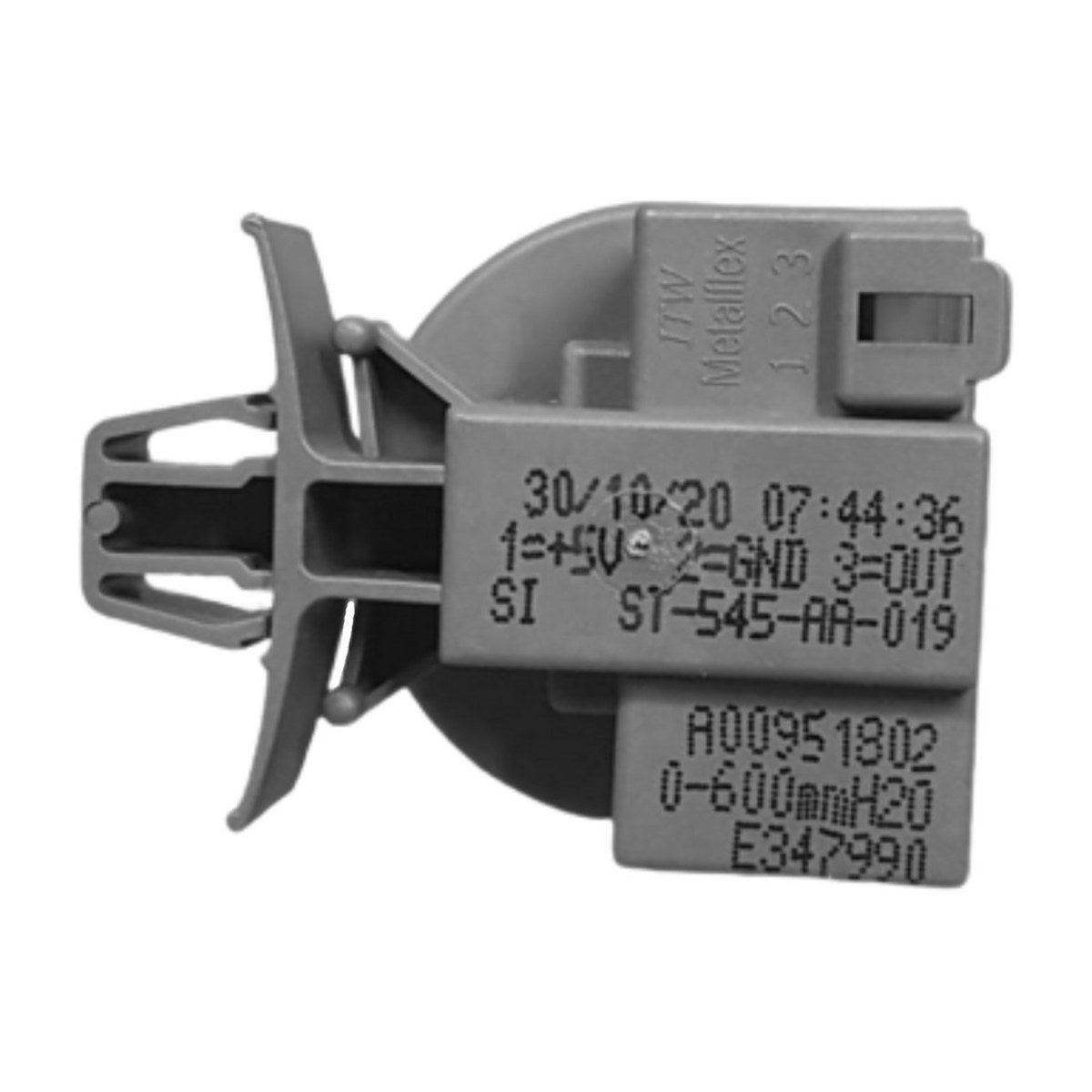

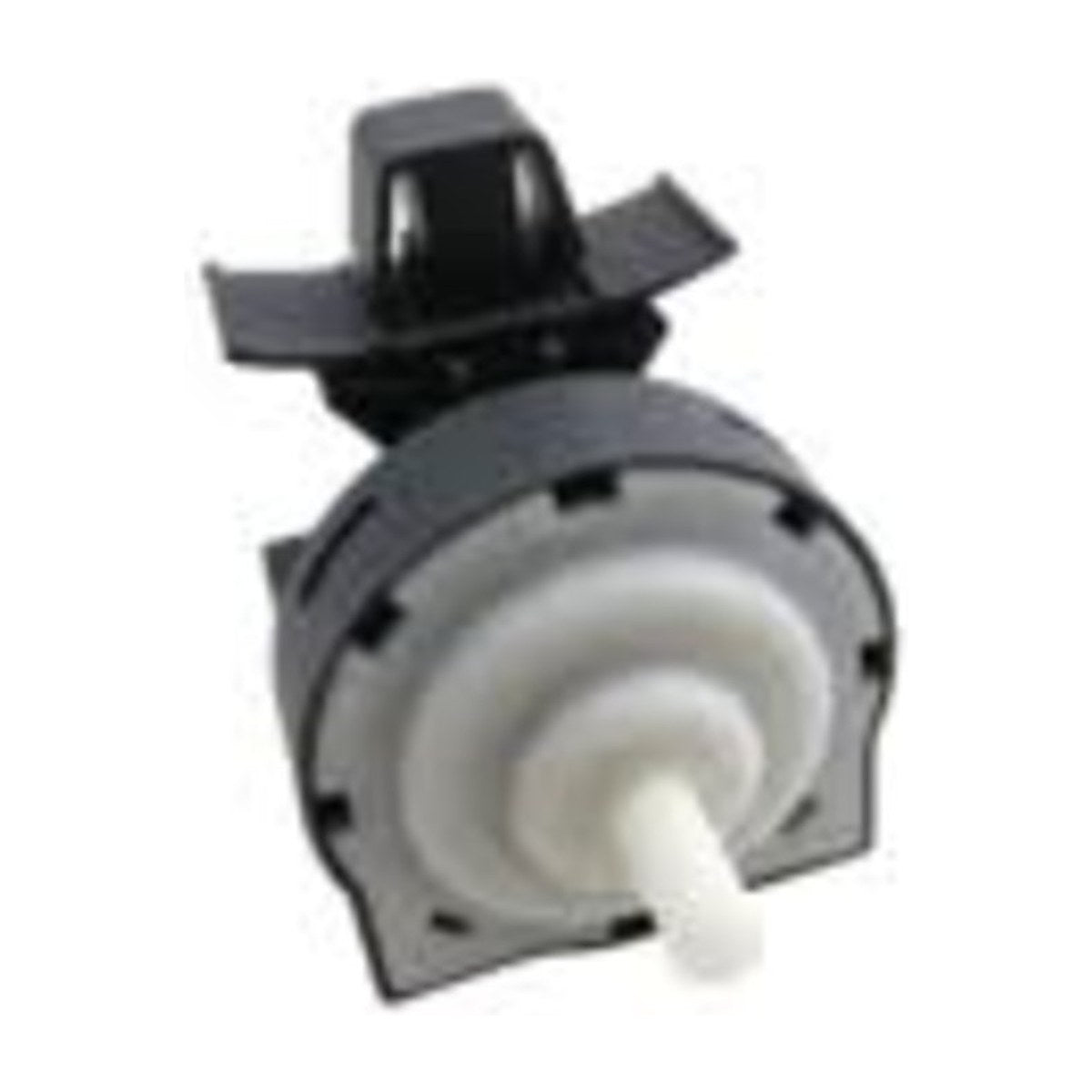

This genuine Electrolux group pressure sensor, part 140009518022, reads the water level in Simpson and Electrolux top load washing machines. It is also listed as A00951802. On file it suits the SWT8043, SWT1043 and SWT1254LCWA, and it is linked to product number 91304113400, which you can match against the label on your machine.
Simpson top loader overfilling or not filling? Test the pressure sensor
A thin air tube runs from the bottom of the tub to this sensor. As water rises, air pressure in the tube rises, and the sensor turns that into a signal the control board uses to stop filling at the right level. When it fails, the machine may overflow, stop filling too early, keep filling and draining, or refuse to start agitating. You may also see a water level error. Before replacing it, check the air tube for splits, kinks or a blockage at the tub end, as these cause the same faults.
Part details
- Genuine part number 140009518022
- Short number A00951802
- Water level pressure sensor for top load washers
- Listed for Simpson SWT8043, SWT1043 and SWT1254LCWA
- Linked to product number 91304113400
Swapping the pressure sensor
Unplug the washer before opening the control panel or console, where the sensor is normally mounted. Photograph the plug and note how the air tube connects, then fit the new sensor and push the tube fully onto its spigot. Blow gently through the old tube to make sure it is clear before reconnecting it. Run a fill to check the water stops at the correct level.
Questions about this part
Where is the model number on a Simpson top loader?
Look on the rating label, usually on the back of the console or the rear of the cabinet. It shows the model, such as SWT8043, and a product number. Match either one to the details for this sensor before ordering.
Specifications
| Brand | Electrolux |
|---|---|
| Original part number | 140009518022 |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 140009518022 |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
