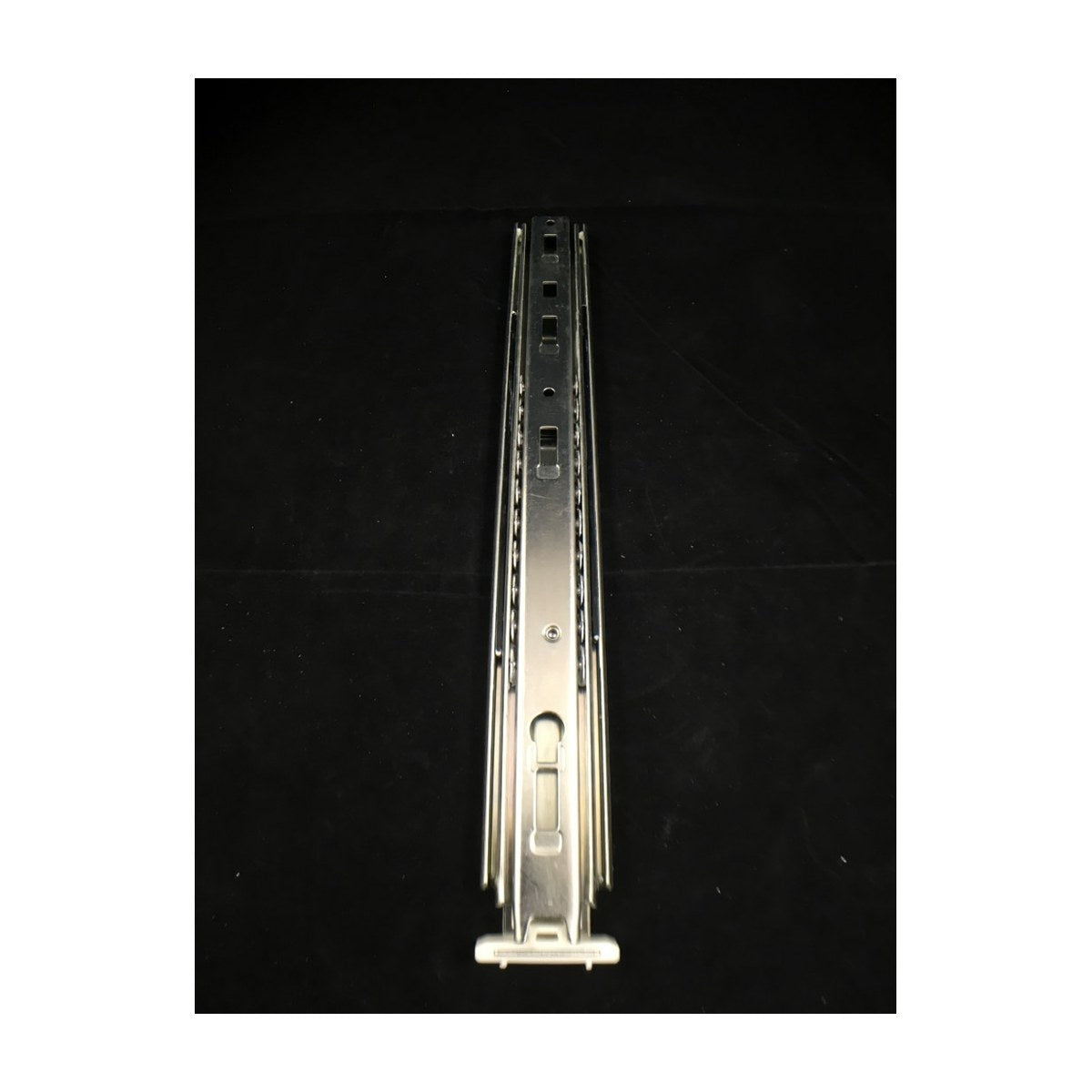

140006009017 Genuine Freezer Extension Slide Assembly 300mm for Electrolux Fridge Freezers, Drawer Runner A00600901

Part 140006009017 is a genuine Electrolux extension slide assembly for freezers, 300mm long, also known by the older number A00600901. Extension slides are the runners that let a freezer drawer or basket roll out smoothly and carry its weight when it's full. Check the length and the part number on your fridge's parts list, as slides come in different lengths and some models use separate left and right versions.

Freezer drawer hard to open or dropping off its runners?

A loaded freezer drawer can be surprisingly heavy, and the slides take that weight every time it's pulled out. Cold makes plastic brittle, and ice build-up can jam the rollers or bend the metal rails. When a slide fails, the drawer may stick, grind, sit lower on one side, or fall off its runner when opened fully. A drawer that doesn't close properly can also leave a gap at the freezer door, which leads to frost build-up and higher running costs.

Part details

• Genuine Electrolux part 140006009017
• Older number A00600901
• Freezer extension slide assembly
• Length 300mm

Fitting a freezer extension slide

Turn the fridge off at the wall and move the frozen food into an esky. Pull the drawer out to its stop and lift it free, then remove the screws or clips holding the old slide. Clear any ice from the mounting points. Fit the new slide, refit the drawer and run it in and out a few times to check it travels smoothly before reloading.

Questions about this part

Do I need one slide or two?

Most freezer drawers run on a slide each side. If only one side is damaged, one slide may be enough, but check whether your fridge uses separate left and right slides and compare the part number for each side before ordering.
