140004670034 Genuine Door Seal Bellow for Electrolux, Simpson, Westinghouse Washing Machines EWF7525DQWA SWF7025EQWA WWF8025DQWA

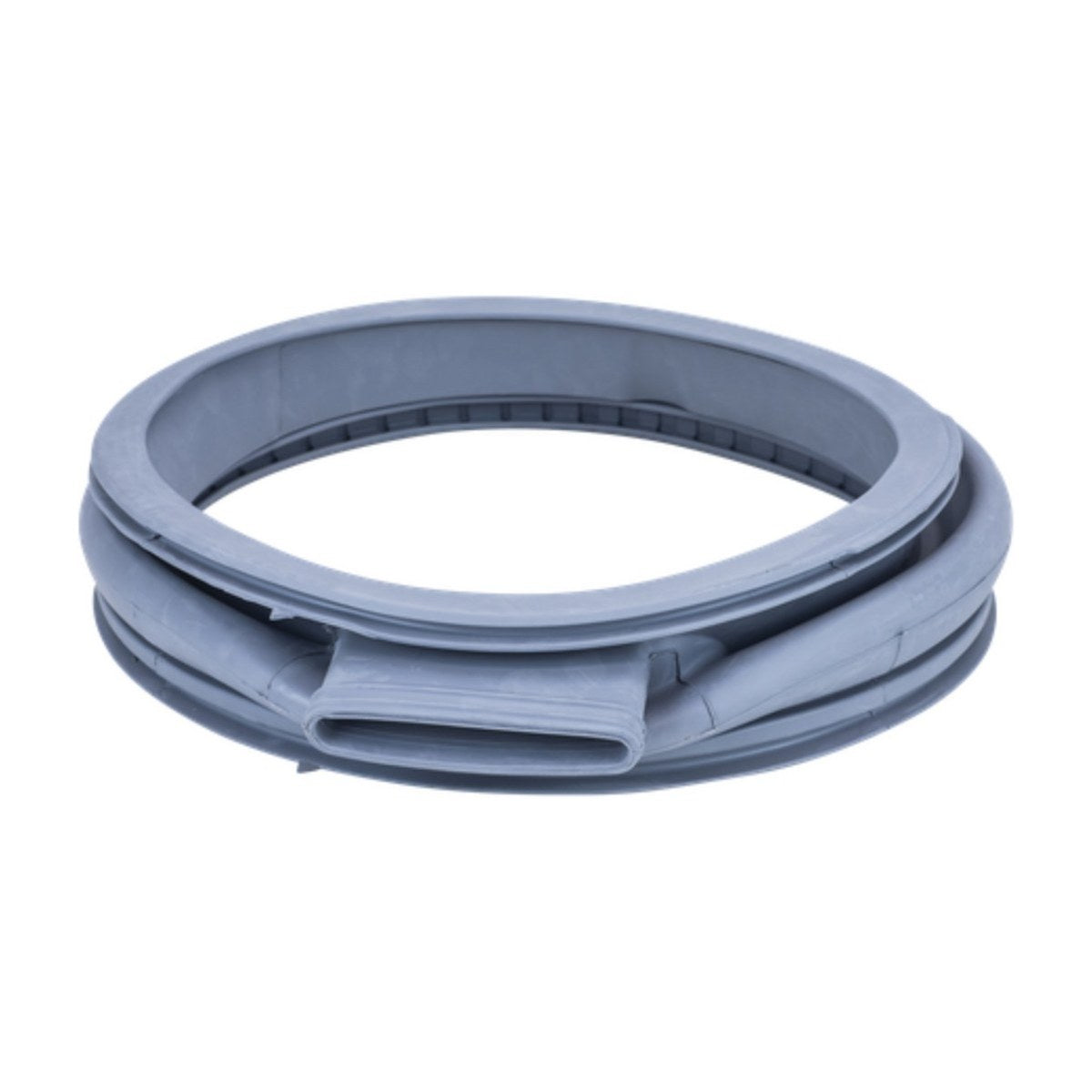

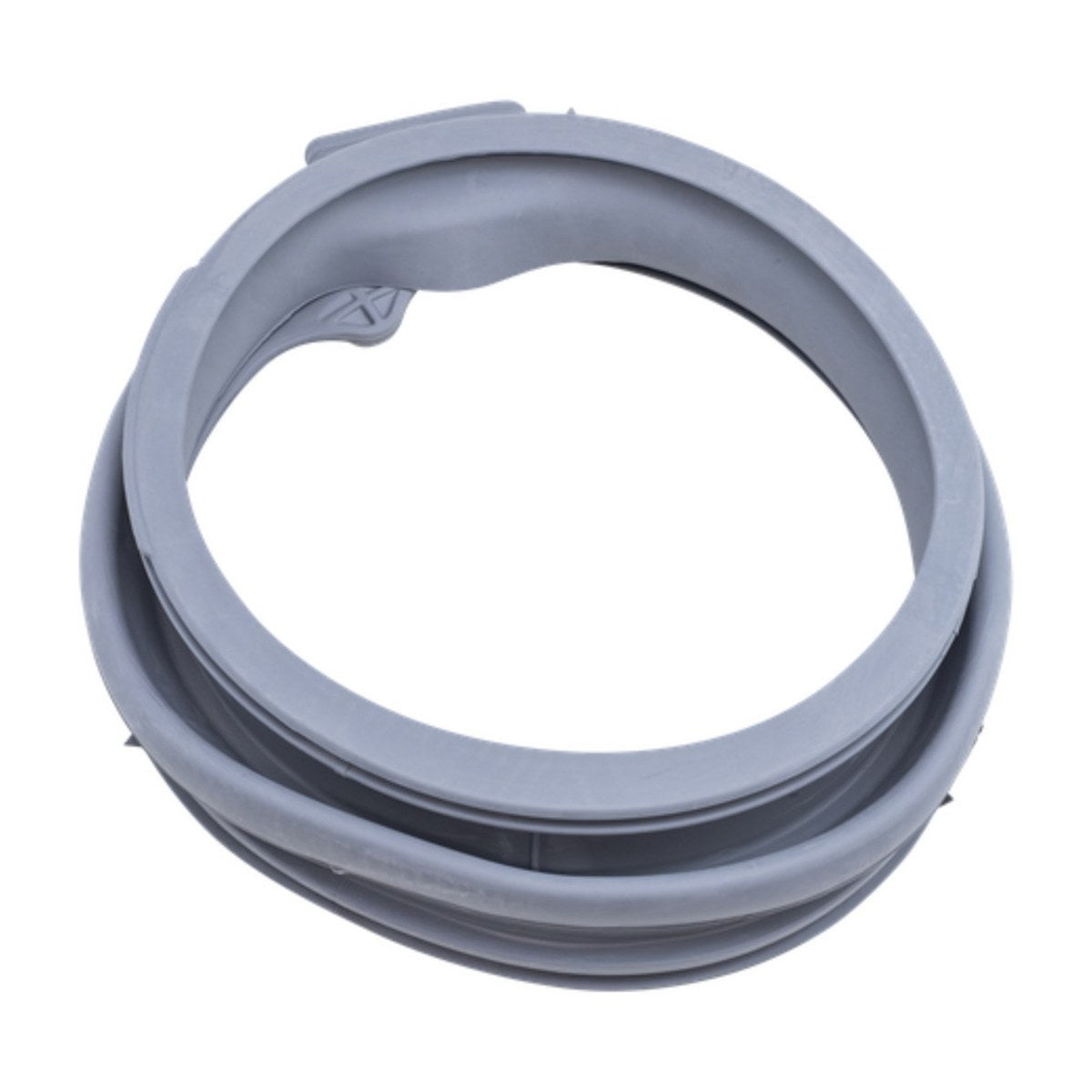

Part 140004670034 is the genuine rubber door bellow, the boot-shaped seal between the door opening and the drum, for a group of Electrolux, Simpson and Westinghouse front load washers. Also listed as A00467003, it suits the Electrolux EWF7525DQWA, the Simpson SWF7025EQWA and SWF8025DQWA, and the Westinghouse WWF7025EQWA and WWF8025DQWA.

Front loader leaking from the door? Inspect the bellow

The bellow forms a watertight seal between the cabinet front and the tub, and it flexes as the drum moves during spin. Splits usually appear in the folds at the bottom, where water, lint and stray coins or bra wires collect. A damaged bellow leaks water out the front of the machine, often during the wash or spin, and a seal holding stagnant water and grime gives the machine a musty smell and black spots of mould.

Part details

• Genuine Electrolux group part 140004670034
• Alternate number A00467003
• Door seal bellow for front load washers
• Suits Electrolux, Simpson and Westinghouse models
• Listed for EWF7525DQWA, SWF7025EQWA and WWF8025DQWA

Fitting the door bellow

Unplug the washer and turn off the taps. Remove the outer clamp ring from the door opening, then free the bellow from the front panel. The inner clamp holds it to the tub and may need the front panel off to reach. Line the new bellow up with any locating marks, refit both clamps evenly and run a rinse to check for leaks.

Questions about this part

Can I just clean the seal instead of replacing it?

If it is only dirty, a wipe with mild detergent and leaving the door ajar between washes helps a lot. Once there is a split, hole or perished rubber, cleaning will not stop the leak and the bellow needs replacing.
