140000916035 Genuine Triple Cold Inlet Valve for Simpson, Westinghouse Top Load Washing Machines SWT8043 SWT9043 SWT1043 WWT8040
- Original part no.
- 140000916035
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

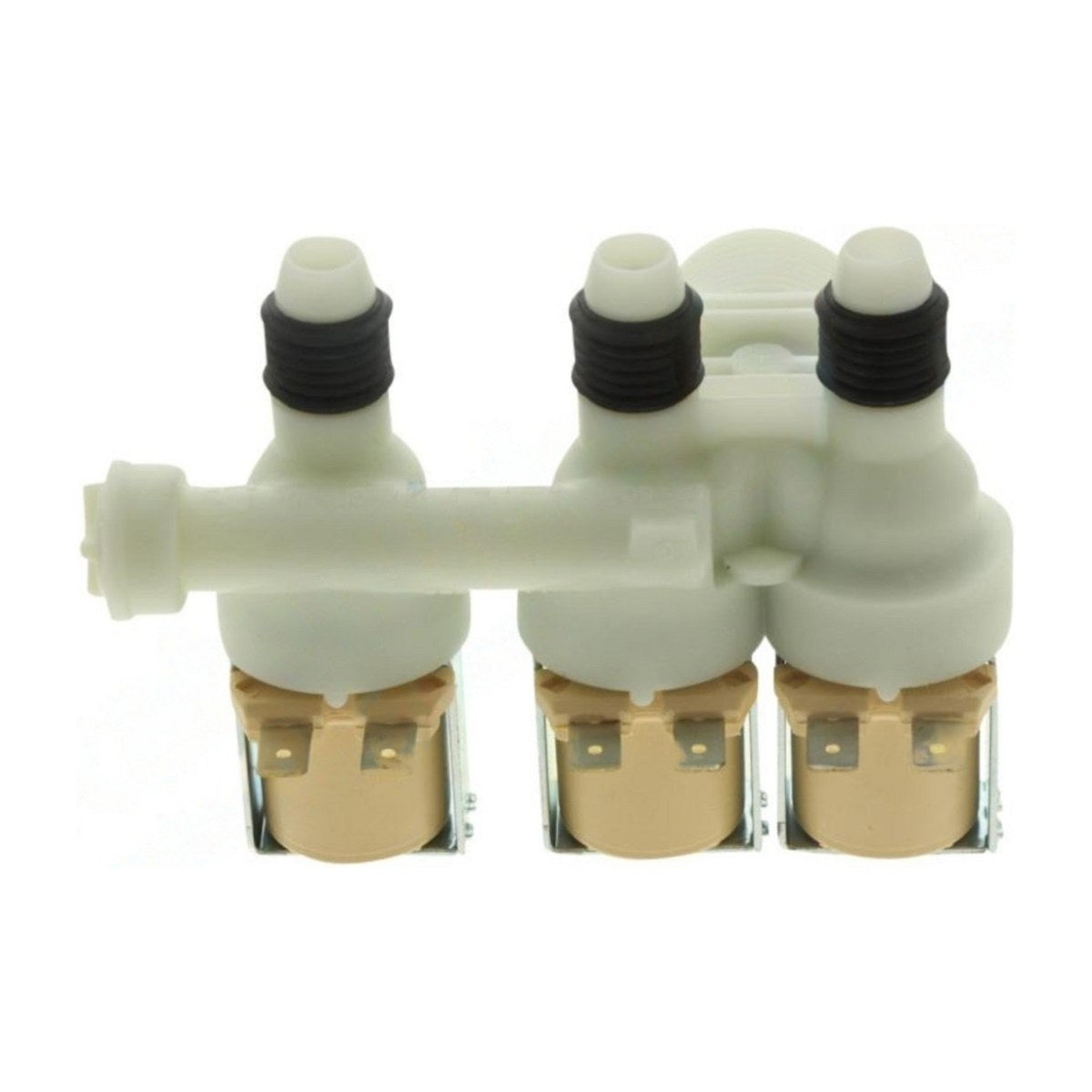

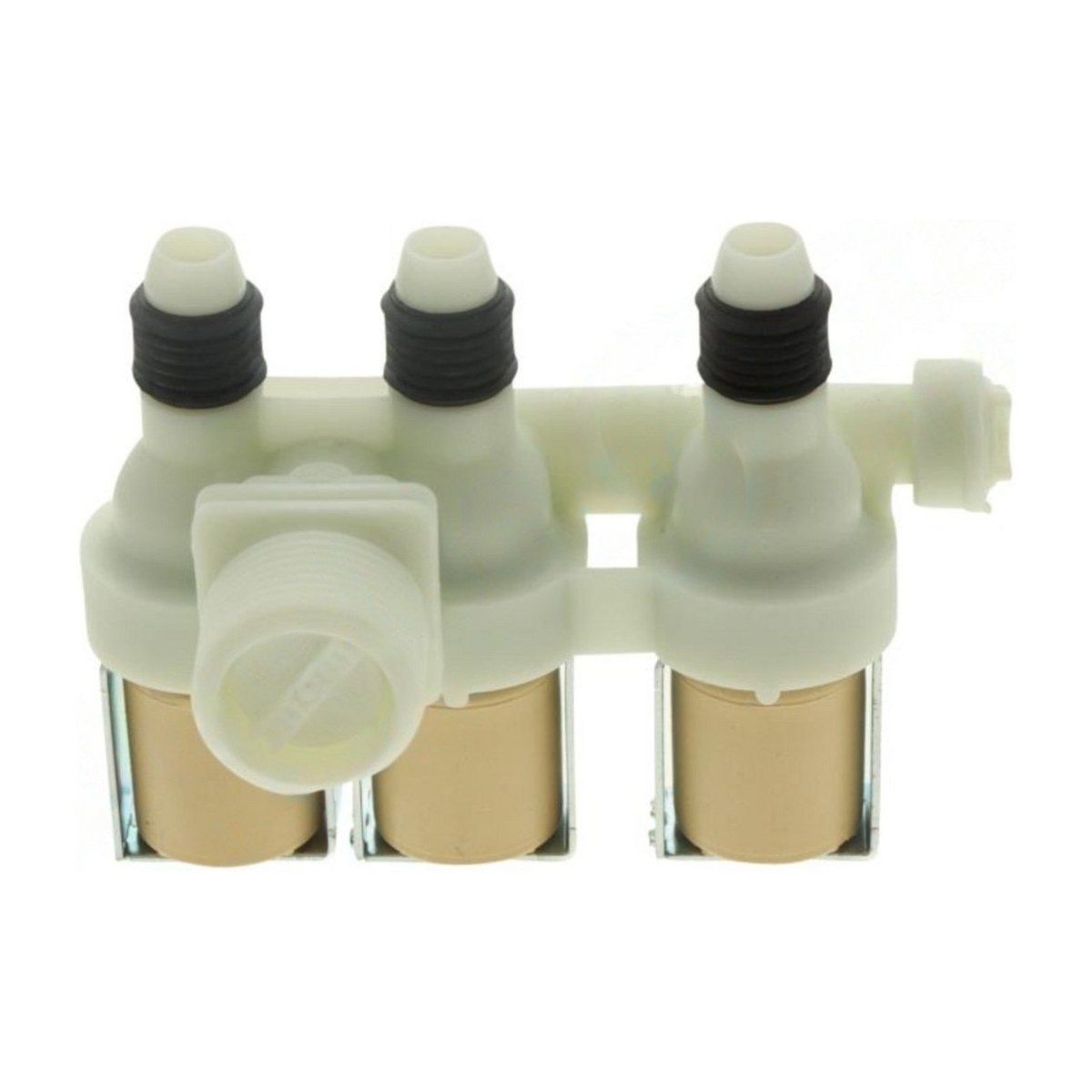

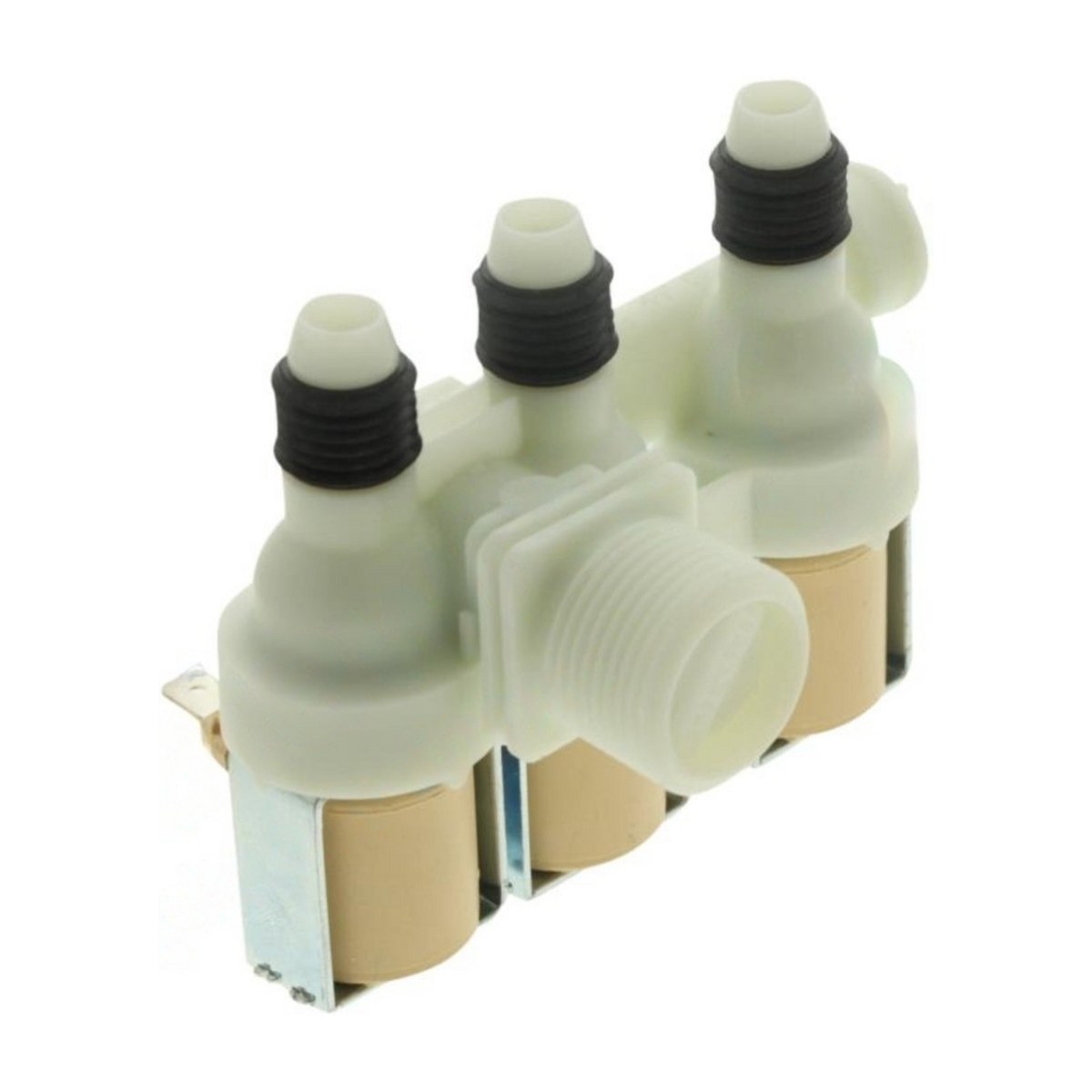

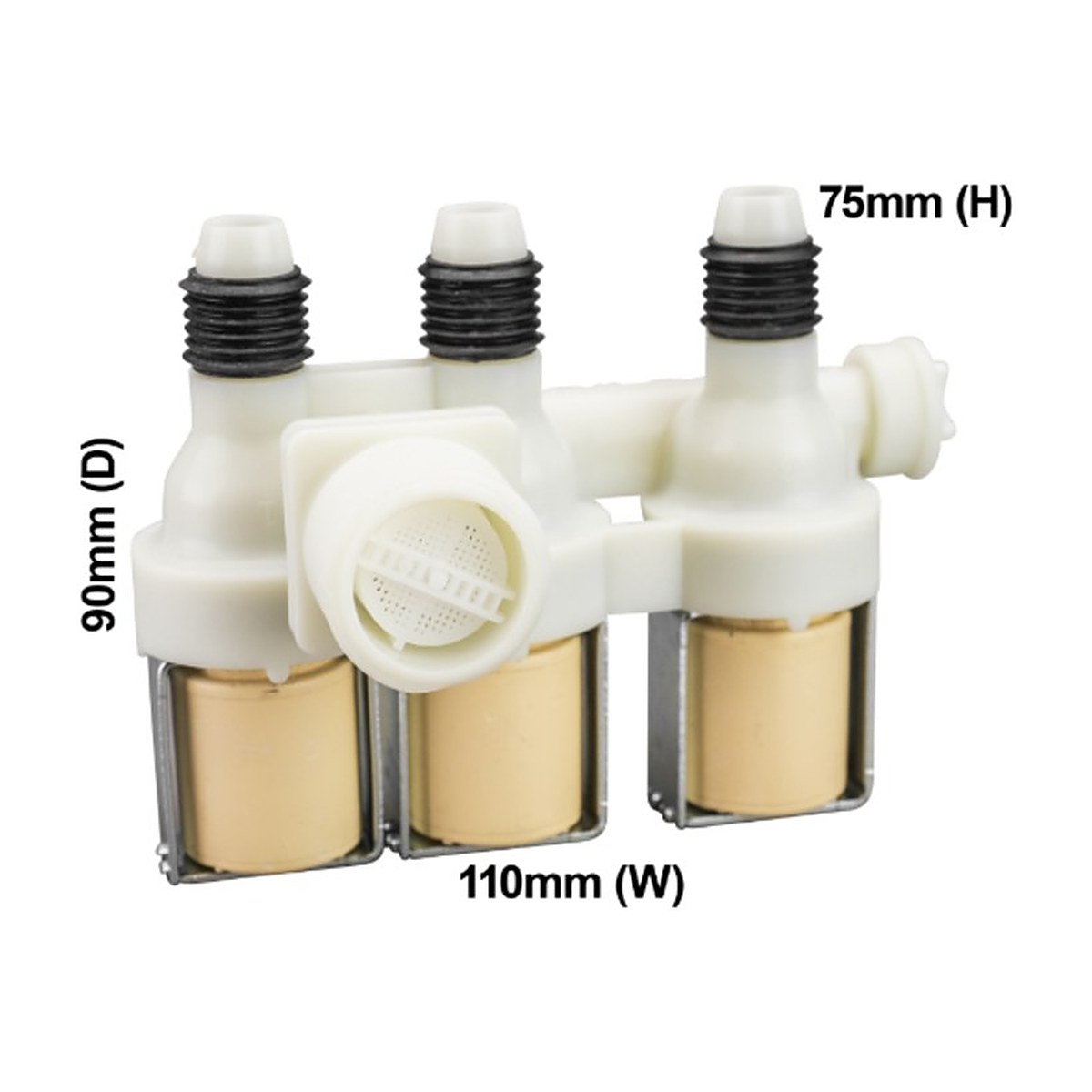

Here's the genuine Electrolux triple cold water inlet valve, part 140000916035, also known as A00091603. It's listed for Simpson and Westinghouse top load washers including the SWT8043, SWT9043, SWT9043A, SWT1043, SWT1023A, SWT8063E, WWT8040 and WWT1020A. Each of its three 240V coils opens a separate 10mm outlet, so the controller can send cold water along different paths inside the machine.
Washing machine not filling or overflowing? Check the cold inlet valve
When the controller calls for cold water, it energises one or more coils on the valve and water flows through to the tub. If a coil burns out or a diaphragm inside the valve fails, the machine may not fill with cold water, may fill very slowly, or may keep trickling water in when it should be off. A blocked filter screen in the valve inlet gives a similar slow fill, so check and clean it first. Leaks around the valve body are another sign it needs replacing.
Part details
- Genuine Electrolux part number 140000916035
- Also known as A00091603, linked to A00155002
- Triple outlet cold water valve
- 10mm right angle outlets
- 240V AC coils
| Outlets | 3, cold water |
|---|---|
| Outlet size | 10mm, right angle |
| Coil voltage | 240V AC |
Changing the triple inlet valve
Turn off both taps, unplug the washer and disconnect the inlet hoses. Photograph the wiring on each coil before removing anything, as all three coils must go back on the same terminals. Swap the valve over, reconnect the internal hoses with their clamps, refit the inlet hose with a good washer, then turn the tap on and check for leaks before running a fill.
Questions about this part
Will this valve fit my Simpson SWT9043?
The SWT9043 is one of the models listed for this valve, along with the SWT8043, SWT1043 and WWT8040. Valve versions can change within a range, so check the model and PNC numbers on your washer's label before ordering.
Specifications
| Original part number | 140000916035 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 140000916035 |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
