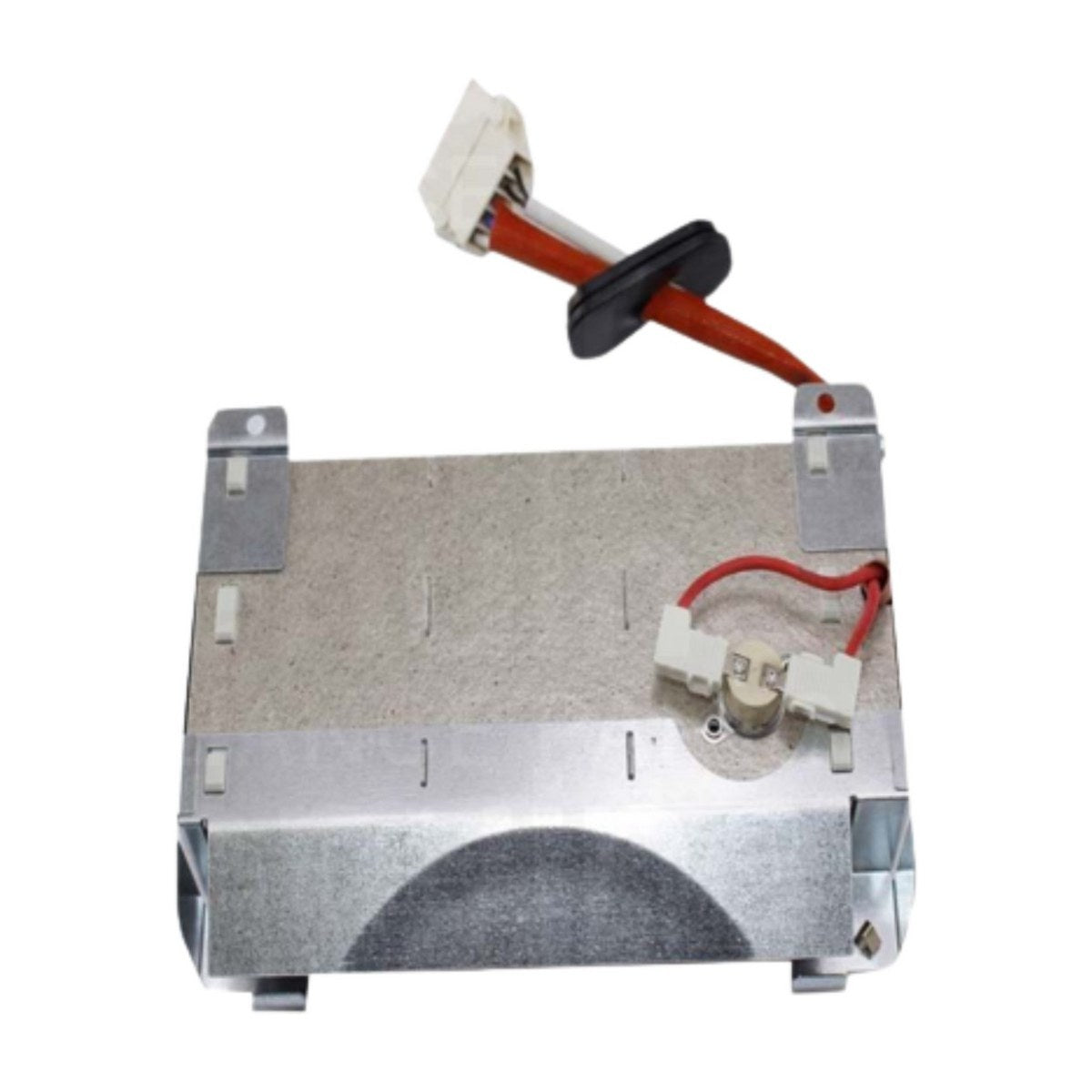

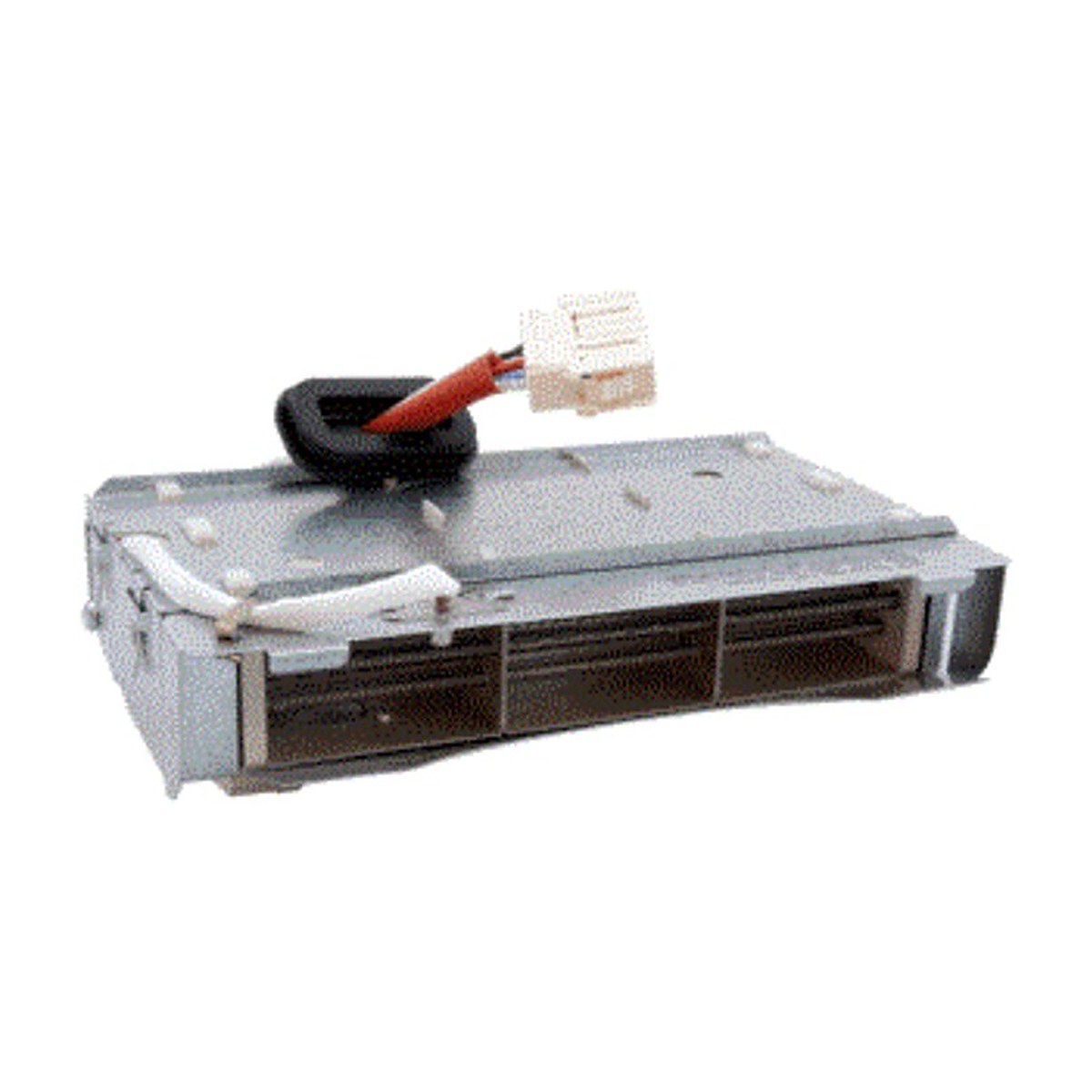

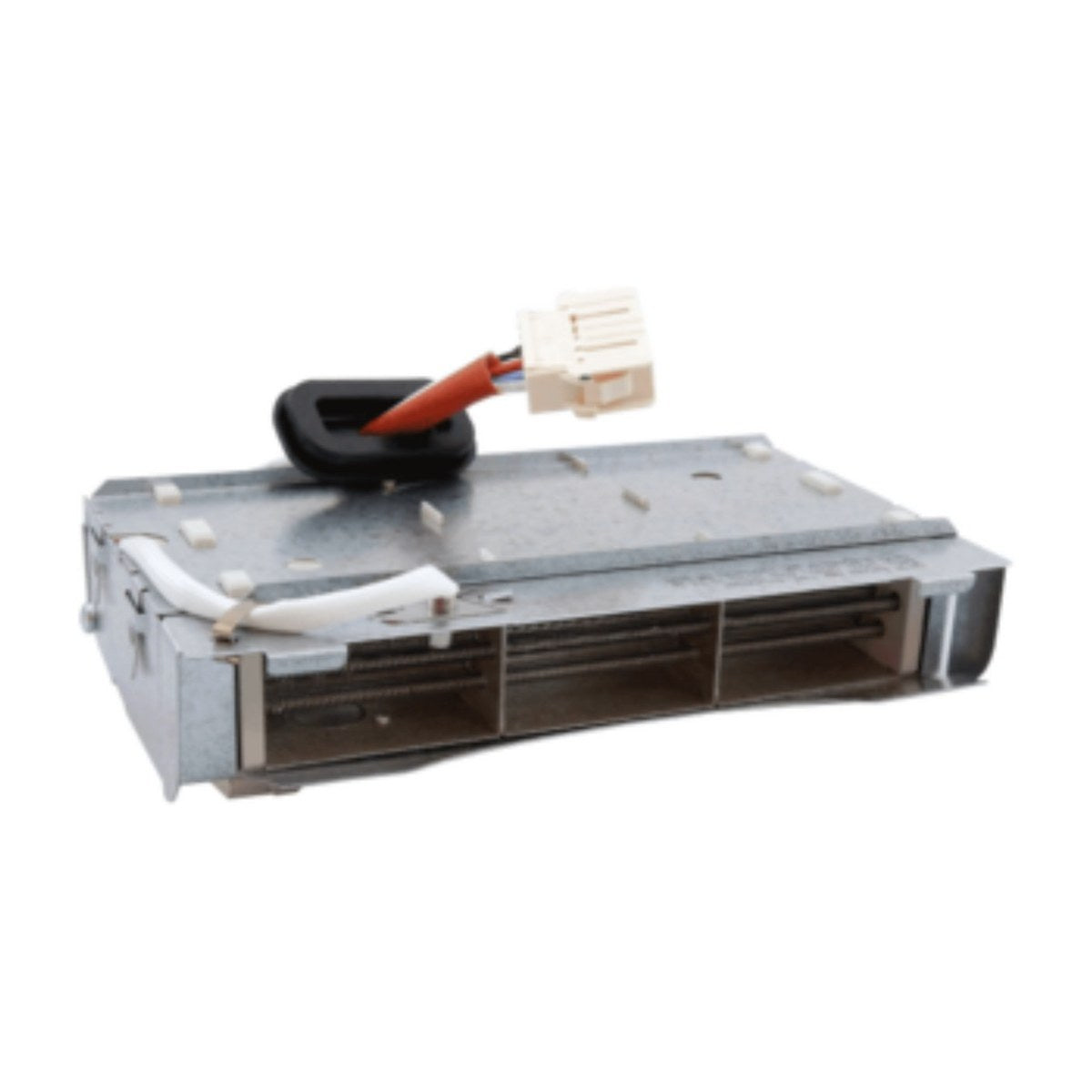

1366110300 Genuine Dryer Heater 1400W and 600W 240V with Overload for Electrolux, AEG Dryers EDC2075GDW EDC2086GDW T76280AC T86280IC

Part 1366110300 is a genuine two-stage heater for Electrolux and AEG clothes dryers, rated 240V with 1400W and 600W sections, and it comes with the overload. It is on file for the Electrolux EDC2075GDW, EDC2086GDW and EDC804Q5WB and the AEG T6DCE821B, T76280AC and T86280IC. Matching 1366110300 to the number on your old heater is the quickest way to confirm fit.

Electrolux or AEG dryer running but not heating

The heater warms the air before the fan pushes it through the drum. With two sections, the dryer can switch between higher and lower heat. When a section burns out, clothes take much longer to dry or come out cold and damp even though the drum turns normally. If heat works on one setting but not another, a single coil has probably failed. A tripped or faulty overload also cuts the heat. Check the coils for breaks and test each section with a multimeter before ordering.

Part details

• Genuine Electrolux and AEG dryer heater 1366110300
• 240V, two sections rated 1400W and 600W
• Includes the overload
• Listed for Electrolux EDC and AEG T series dryers

Fitting the dryer heater

Unplug the dryer and let it cool before opening it up. The heater sits in the air duct and is reached through the back or lower panel, depending on the model. Photograph the terminals and wire colours before disconnecting anything. Fit the new heater and overload, keep the wiring clear of the coils, and run a heated program to check both heat levels.

Questions about this part

Does this come with the overload?

Yes. The overload is included, so both are replaced together. That is worth doing, as an overload that has tripped many times can keep cutting the heat even after the coil is replaced. Clean the lint filters and check the airflow too, since blocked filters cause overheating.
