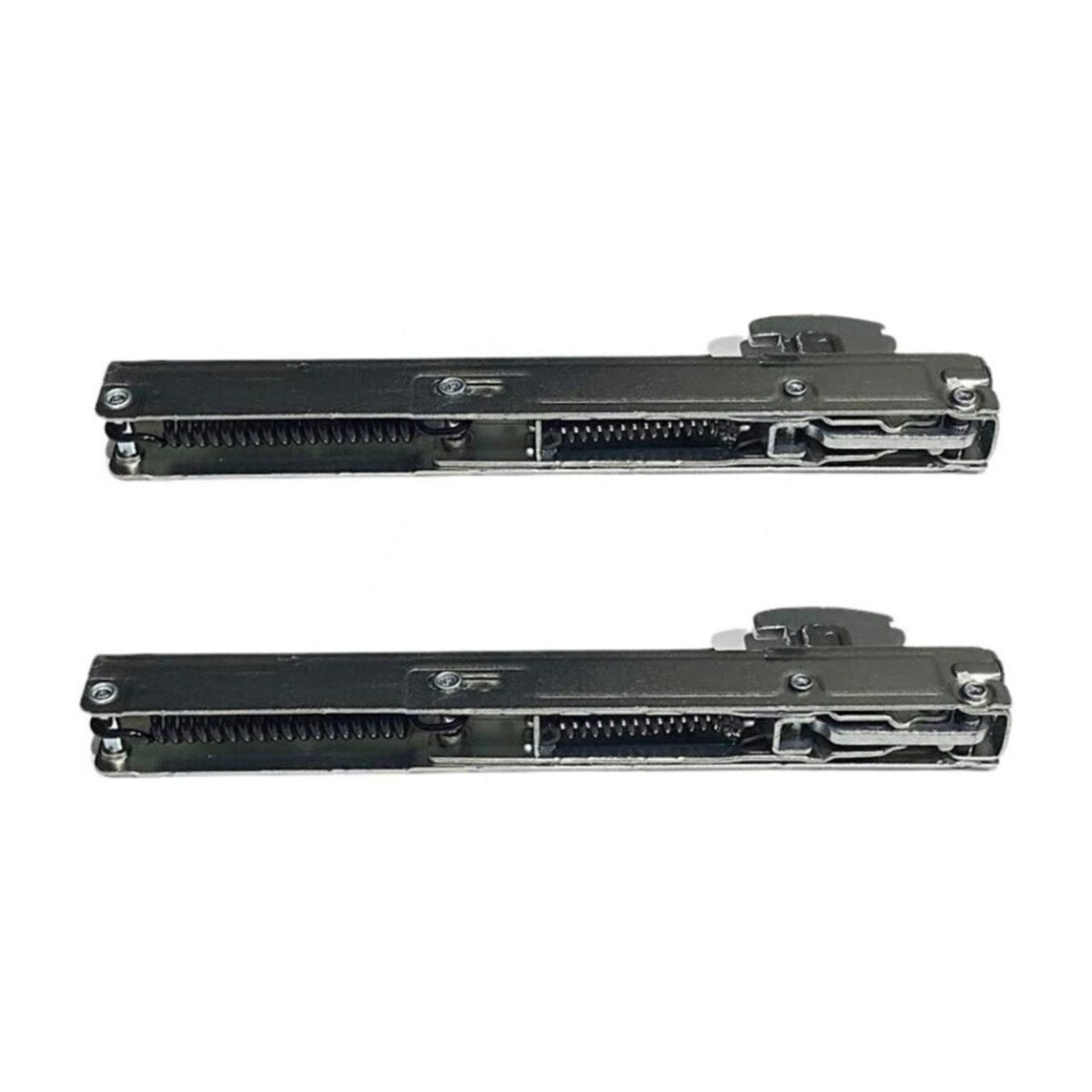

12971100000870 Genuine Oven Door Hinge for Euro, Arc Ovens EO604SX EO608SX EP6004SX EP60M8SX EV600DFSX EV604SX EV608SX AO15 AOI5 PO5

Number 12971100000870 is the genuine door hinge for a group of Euro and Arc ovens. It carries the door on its side, controls how far it falls when opened and pulls it shut again. On file are the EO604SX and EO608SX, the EP6004SX and EP60M8SX, the EV600DFSX, EV604SX and EV608SX, along with the AO15, AOI5 and PO5. Check the model on your rating label against this list before ordering.

Euro oven door sagging, gapping or hard to close?

Oven doors are heavy, especially with several layers of glass, and the hinges take that load every time the door opens. Inside each hinge a spring and lever set how quickly the door drops and how firmly it closes. Worn hinges let the door gap at the top, fall sharply, wobble from side to side or refuse to shut fully, so heat leaks into the kitchen and the controls run hot. Hinges also bend if the open door gets used as a step or a shelf.

Part details

• Genuine part 12971100000870
• Oven door hinge
• Suits the Euro and Arc ovens on file
• Ten models listed

Changing the door hinges

Let the oven cool and switch it off at the isolator. Open the door fully, flip up the locking levers on both hinges, then close the door part way and lift it up and out. Undo the screws holding the hinge in the oven frame, as access varies by model, and fit the new hinge in its place. Replacing both sides together gives the most even action.

Questions about this part

Where is the model number on my Euro oven?

Open the oven door and look around the frame of the opening for a rating label, which shows the model, such as EV604SX. Compare it with the list here, or send it through the parts enquiry form if it is not listed.
