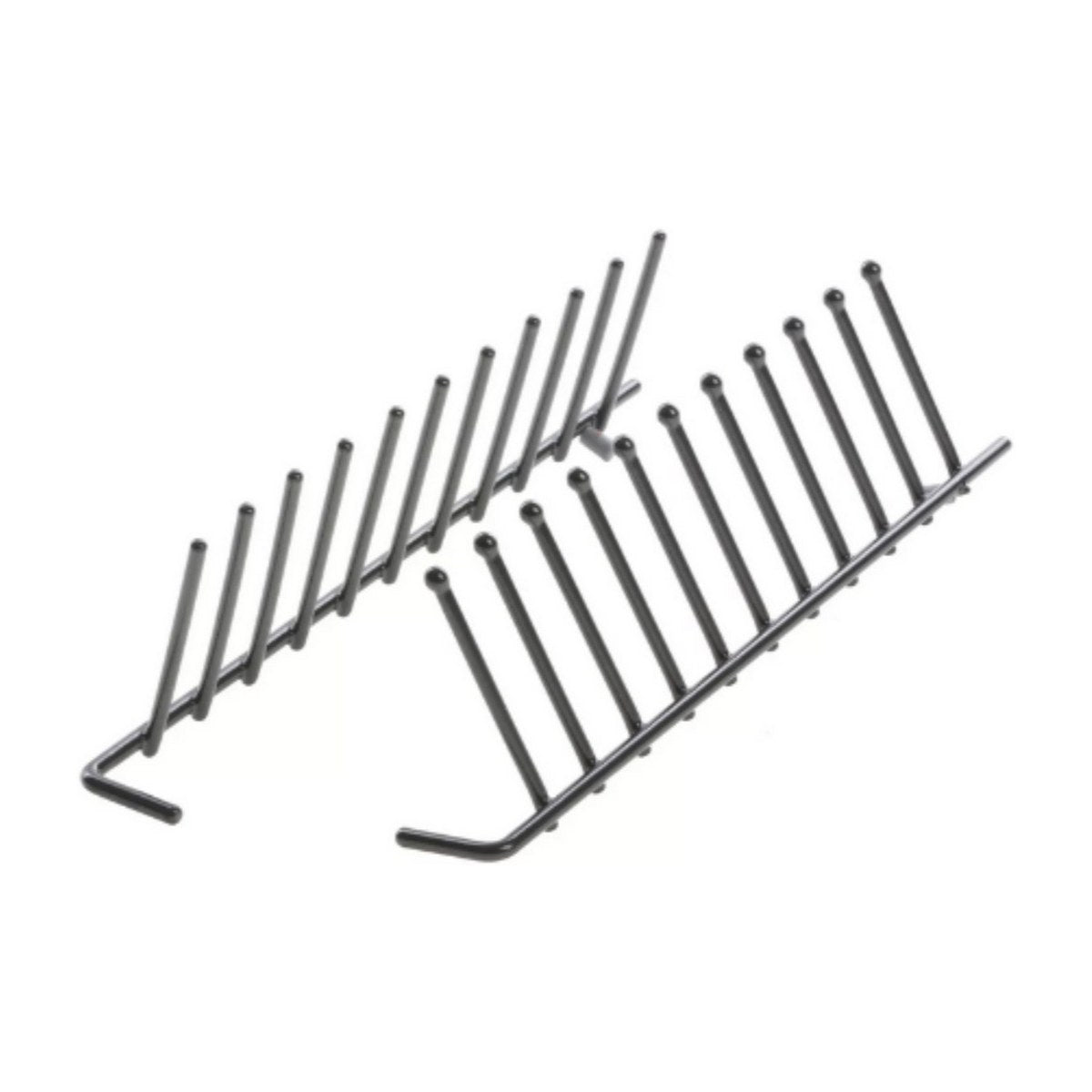

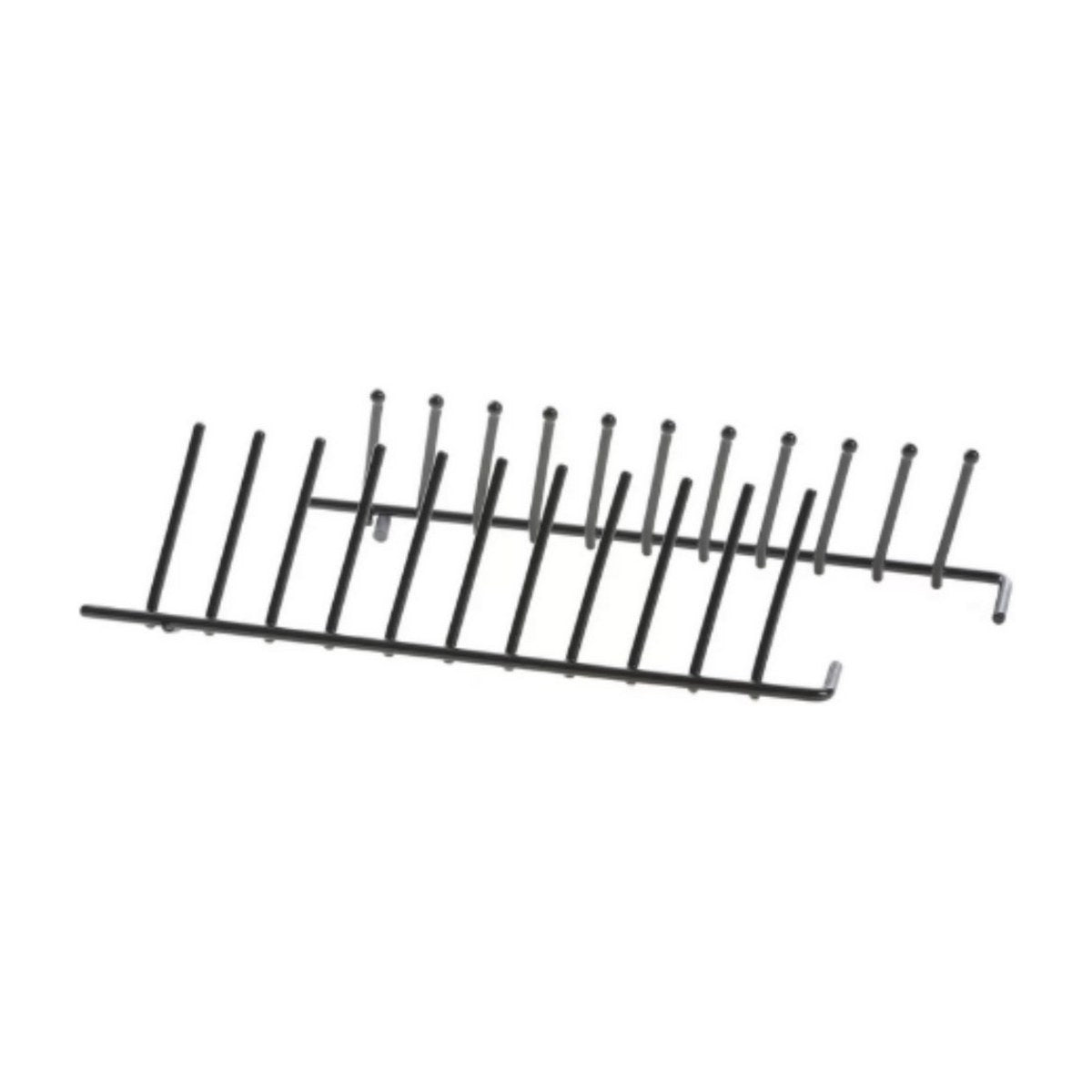

12004140 Genuine Upper Rack Front Left Flip Tines for Bosch Dishwashers SMS63M08AU SMU68M05AU SMS50M28AU SMS63M28AU SM150E25AU SMU50E45AU

Fold-down tines that have snapped off the top basket make loading harder, and this genuine Bosch part, 12004140, replaces the front left set in the upper rack. It is linked to 12009533 and 00645104. Models on file include the SMS63M08AU, the SMS63M28AU and SMS63M38AU, the SMS50M28AU and the SMU68M05AU, plus the SM150E25AU and SMU50E45AU, each in several production versions.

Why replace broken upper rack tines

Flip tines are the rows of prongs that hold cups, glasses and small bowls upright in the upper rack. They fold flat when you need room for larger items and clip back up when you don't. The pivots and locking clips are thin plastic, so they can crack after years of hot washes and being flicked up and down. Once a tine row breaks, it won't stay up, it can hang into the path of the spray arm, and glasses tip over and fill with dirty water. Getting the correct position matters, as front, rear, left and right rows differ.

Part details

• Genuine Bosch part 12004140
• Front left flip tines for the upper rack
• Linked to 12009533 and 00645104
• Listed for Bosch SMS, SMU and SM150 dishwashers

Fitting the flip tines

Pull the upper rack out and look at how the old tine row attaches to the basket wires. Usually it unclips at the pivot points, so ease each clip free without bending the basket. Clip the new row into the same spot at the front left, then fold it down and up a few times to check it moves freely and locks upright.

Questions about this part

How do I tell which side is front left?

Stand in front of the dishwasher with the door open and the upper rack pulled out. Front left is the tine row nearest you on your left-hand side. Rear and right-hand rows may use different part numbers.
