1173858109 Genuine Spray Arm Feed Duct 229.6mm for Electrolux, Westinghouse, Dishlex Dishwashers ESF66030 ESF45012 DX303SK WDU903SA WDF901WA
- Original part no.
- 1173858109
- Part grade
- Genuine
- Appliance
- Dishwasher Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

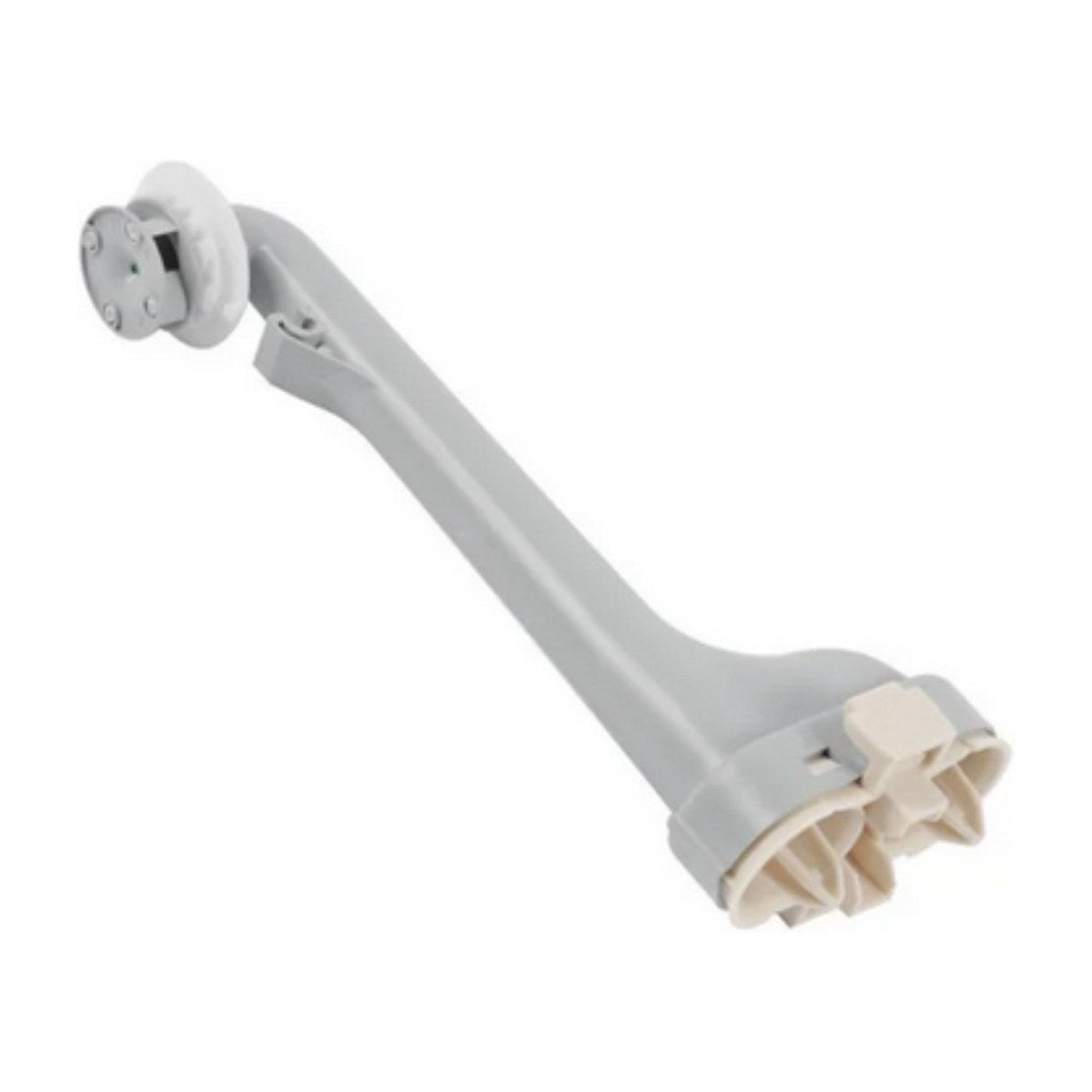

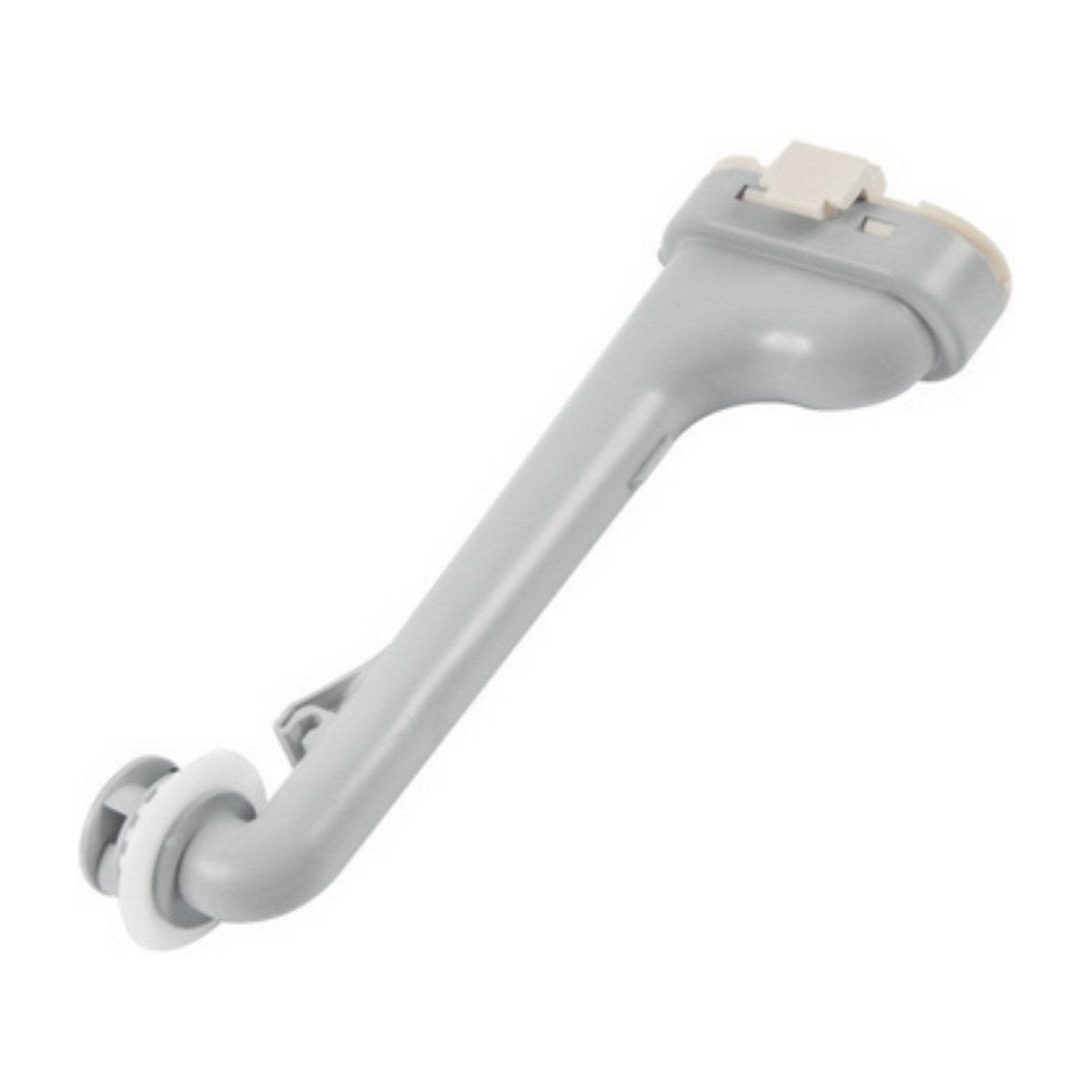

Part 1173858109 is a genuine Electrolux water duct, 229.6mm long and dark grey, that carries wash water through to a spray arm. You may see it listed as 1526687528, 1173858216, 50292057002 or 3286039510. It suits a long list of Electrolux ESF dishwashers, from the ESF4132 and ESF45012 to the ESF66030 and ESF74510LX, as well as the Dishlex DX303SK, DX303SL and DX303WL and the Westinghouse WDU903SA and WDF901WA.
Dishes coming out dirty? Check the spray arm feed duct
Inside the dishwasher, the wash pump pushes water from the sump through a set of channels to the spray arms. This duct is one of those channels, and it has to stay sealed and properly seated for the arm it feeds to get full pressure. If the duct cracks, warps or comes loose from its connection, water escapes before it reaches the arm. The arm then spins slowly or not at all, and dishes in that part of the basket come out dirty or gritty. Food scraps lodged in the duct cause the same symptoms.
Part details
- Genuine Electrolux dishwasher part
- Part number 1173858109
- Length 229.6mm, dark grey
- Linked numbers 1526687528, 1173858216, 50292057002 and 3286039510
- Listed for 30 Electrolux, Westinghouse and Dishlex models
| Length | 229.6mm |
|---|---|
| Colour | Dark grey |
Fitting the feed duct
Turn the dishwasher off at the wall and remove the baskets so you can see the inside of the tub. Note how the old duct connects at each end and how it clips to the tub, taking a photo if it helps. Unclip it, clear any debris from the connection points, then push the new duct firmly home. Spin the spray arm by hand to check it turns freely before running a wash.
Questions about this part
How do I check my model number?
Open the door and look along the edge of the inner door or the side of the tub for the rating label. It lists the model, such as ESF66030 or DX303SK, and a product number. Compare the model with the ones on this page, or send it to us to check.
Specifications
| Original part number | 1173858109 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 1173858109 |
| Appliance | Dishwasher Parts |
| Shipping weight | 0.15 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
