1171265448 Genuine Door Seal 1730mm for Dishlex, Electrolux, Westinghouse, Simpson Dishwashers DSF6106W DX203SK ESF65060W WDF902SA SSF6105W

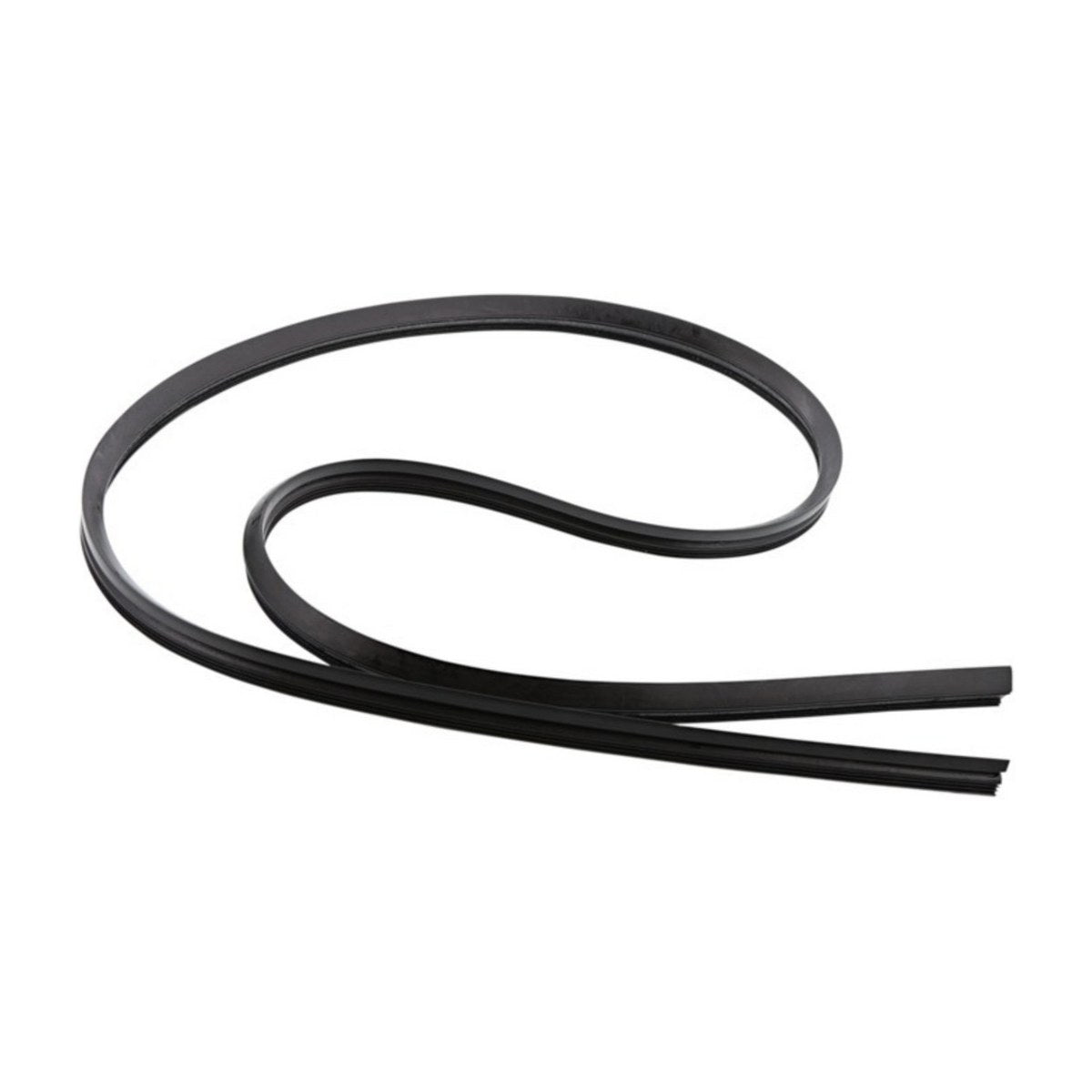

1171265448 is the genuine main door seal for a wide range of Electrolux group dishwashers. It is 1730mm long and also listed as 1524445010 and 1171265026. Close to 50 models are on file, including the Dishlex DSF6106W, DSF6205X and DX203SK, the Electrolux ESF65060W and ESF68040X, the Westinghouse WDF902SA, the Simpson SSF6105W and the AEG F88015VI, plus some IKEA LAGAN, RENGORA and SKINANDE models.

Dishwasher leaking from the door

The main door seal runs around the tub opening and presses against the inner door when it closes, keeping water and steam in during the wash. Over time the rubber hardens, flattens, tears or comes out of its channel, and food grease speeds that up. Signs include water on the floor under the door, a wet kickboard, steam escaping at the top corners and mould or black build-up on the seal. Check that the dishwasher is level and the door closes firmly too, as either can cause similar leaks.

Part details

• Genuine Electrolux group door seal 1171265448
• Length 1730mm
• Also listed as 1524445010 and 1171265026
• Listed for Dishlex, Electrolux, Westinghouse, Simpson, AEG and some IKEA models

Fitting the main door seal

Turn the dishwasher off at the wall. Pull the old seal out of its channel and clean the channel well, removing any grease or residue. Start the new seal where the old one began, press it in evenly without stretching it, and work around the tub. Close the door to check it seals all the way round, then run a cycle and look for drips.

Questions about this part

Is this the seal around the tub or the one along the bottom of the door?

This is the main seal that runs around the tub opening. The lower door seal along the bottom edge is a separate part. If water is leaking at the base of the door, check both before ordering.
