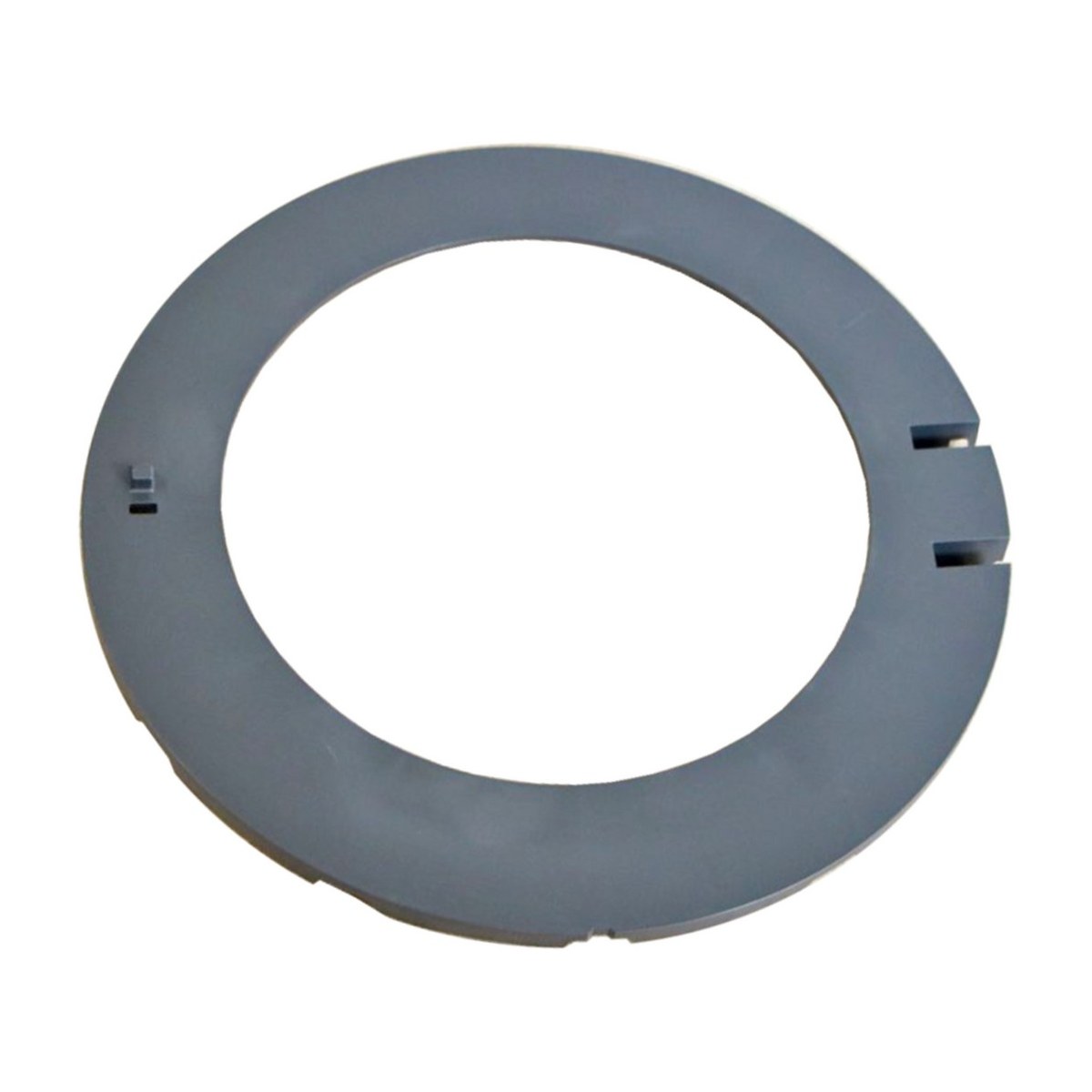

11035685 Genuine Inner Door Frame for Bosch Front Load Washing Machines WAW28440AU WAW28460AU WAW28620AU WAW28640AU WAW32640AU WAT28S4SZA

Bosch front loaders in the WAW28440AU and WAW28460AU ranges, the WAW28620AU and WAW28640AU, and the WAW32640AU, along with the WAT28S4SZA, share this genuine inner door frame, part 11035685. It has also been supplied as 11005098. The inner frame is the window frame on the inside of the door, the side that faces the drum.

Bosch washer door cracked or glass loose?

A front loader door is built from an outer frame and an inner frame that clamp the glass bowl between them and hold the parts that let the door hinge and latch. The inner frame takes the knocks when loading and the stress of the door being slammed or leaned on. Once it cracks, the glass can sit loose or crooked, the door may not close square against the seal, and the hook may not line up with the lock, so the machine won't start a cycle. Broken clips around the edge are another common failure.

Part details

• Genuine Bosch part 11035685
• Also supplied as 11005098
• Inner window frame for the washing machine door
• Listed for WAW28440AU, WAW28460AU and WAW28620AU variants plus WAW28640AU, WAW32640AU and WAT28S4SZA

Rebuilding the door

Unplug the machine first. Open the door, remove the hinge screws and lift the door off, then lay it face down on a towel. Undo the screws holding the frames together, and take photos as you go so the hook, hinge and glass go back in the same positions. Transfer the glass and fittings to the new inner frame, screw the door back together evenly and check that it closes and latches cleanly.

Questions about this part

How do I find my Bosch E-Nr?

The model and E-Nr, such as WAW28440AU/12, are usually on a label around the door opening. The number after the slash is the production index, and this frame is listed against particular indexes, so quote the full code if you send an enquiry.
