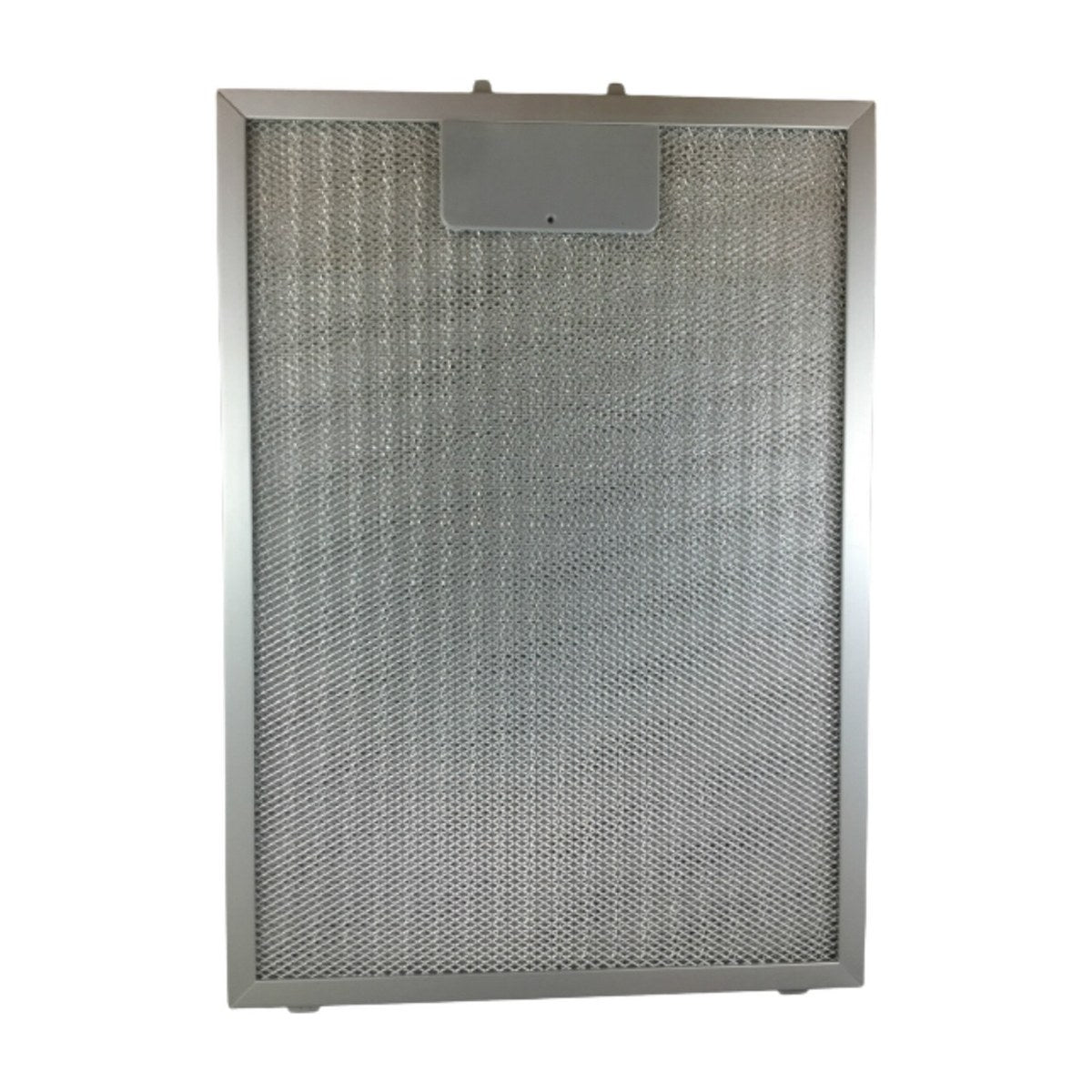

104163 Genuine Aluminium Rangehood Filter 335 x 267mm for Robinhood, Fisher & Paykel Rangehoods RH600CR RH900CR RH1200CR HC90CXV1 CR9SS

Measuring 335mm by 267mm, this genuine aluminium filter, part 104163, also known as R104163, suits Robinhood and Fisher & Paykel rangehoods. Nineteen models are on file, including the RH600CR and RH900CR, the RH1200CR and RH1216CR, the RH600TH, the HC60PCSX1 and HC90CXV1, the HC120PCHPX1, and the CR6SS and CR9SS. Wider rangehoods often hold more than one filter, so count how many your hood takes before ordering 104163.

Rangehood filter clogged, bent or dripping grease?

An aluminium grease filter traps fat and oil from cooking vapour so it doesn't coat the fan and the inside of the ducting. The filter media catches grease droplets as air is drawn through, and it can be washed to restore airflow. After years of heat and cleaning, filters warp, the media separates, the frame corrodes or the catches break. Then the rangehood loses suction, steam hangs around the cooktop, the motor works harder and grease builds up where it shouldn't. A blocked filter can also make the fan noticeably louder.

Part details

• Genuine part 104163, also R104163
• Aluminium filter, 335mm x 267mm
• Suits Robinhood and Fisher & Paykel rangehoods
• 19 models on file, incl. RH600CR, RH900CR and RH1200CR

Changing the rangehood filter

Switch the rangehood off and let the cooktop cool. Release the catch on the old filter and lower it out carefully, as it may be greasy. Measure it to confirm 335mm by 267mm. Fit the new filter the same way round, making sure the catch locks so it can't drop onto the cooktop. Wash the filter regularly to keep the hood drawing well.

Questions about this part

How many filters does my rangehood need?

It depends on the width and design of the hood. Count the filter panels in your rangehood and order one 104163 for each panel you are replacing. Measure the old filter to confirm it is 335mm by 267mm.
